Hazard Warning Switch: Testing and Inspection

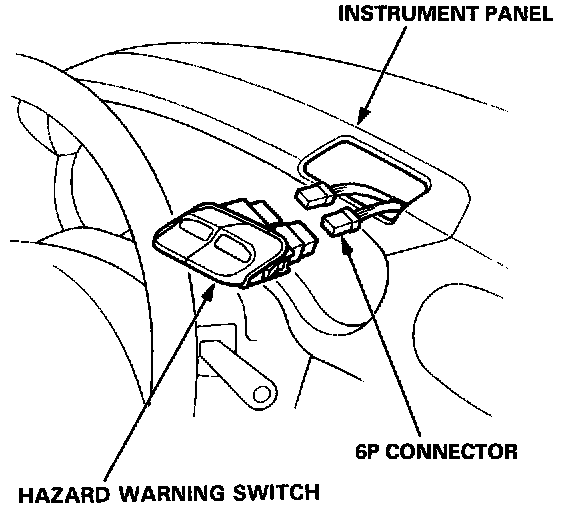

1. Carefully pry both switches out of the instrument panel.

2. Disconnect the connectors from the switches.

NOTE: Carefully remove the switches without damaging them or the instrument panel.

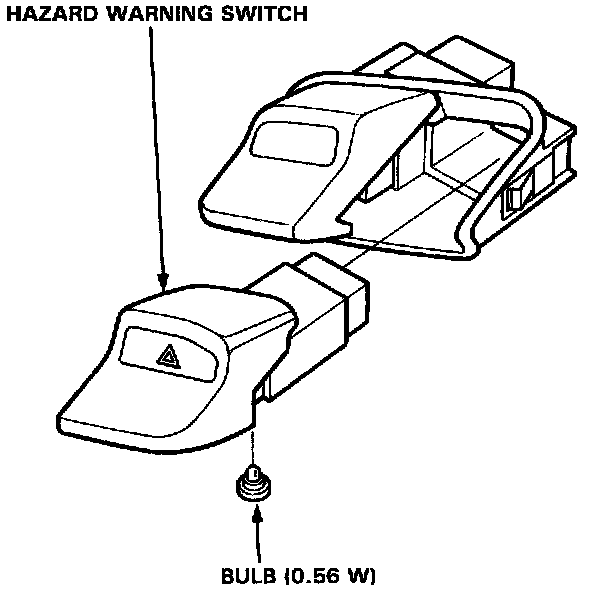

3. When replacing a bulb, turn the bulb socket 450 counterclockwise, then remove the bulb from the switch.

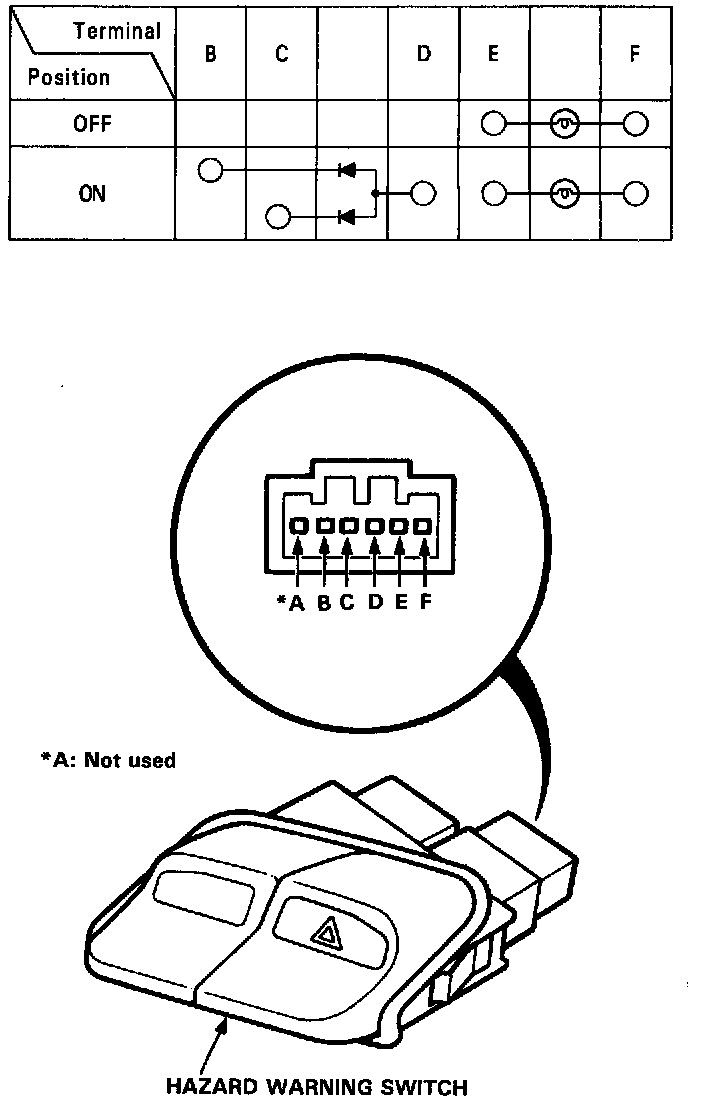

4. Check for continuity between the terminals according to the table.
