Dimmer Switch: Locations

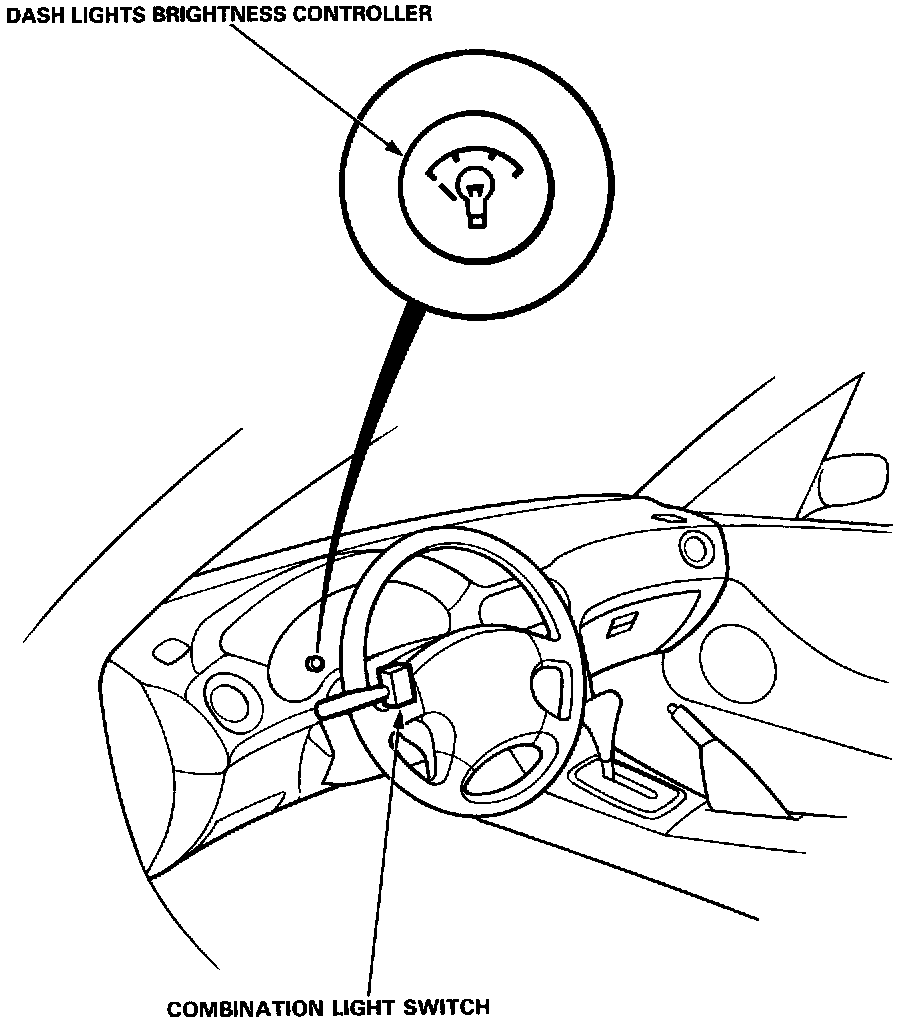

Dash Lights Brightness Controller-Component Location Index:

CAUTION:

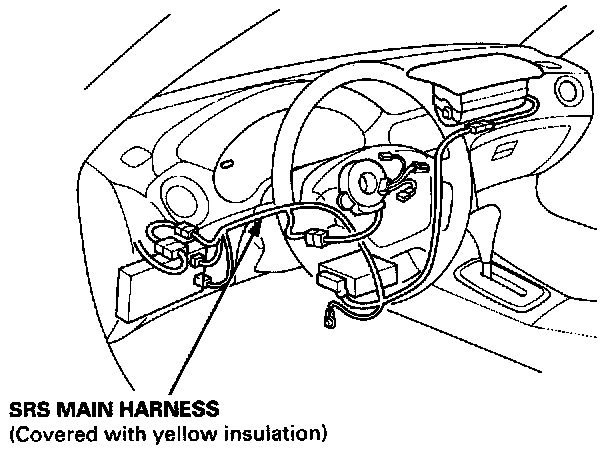

^ All SRS wire harnesses are covered with yellow insulation. Before you disconnect any part of an SRS wire harness, disconnect the airbag connectors.
^ Whenever the ignition switch is ON (II), or has been turned OFF for less than three minutes, be careful not to bump the SRS unit; the airbags could accidentally deploy and cause damage or injuries.
^ For additional precautions, refer to the Air Bags and Seat belts.

NOTE: The control unit is built into the dash lights brightness controller.
