Brake Switch (Cruise Control): Testing and Inspection

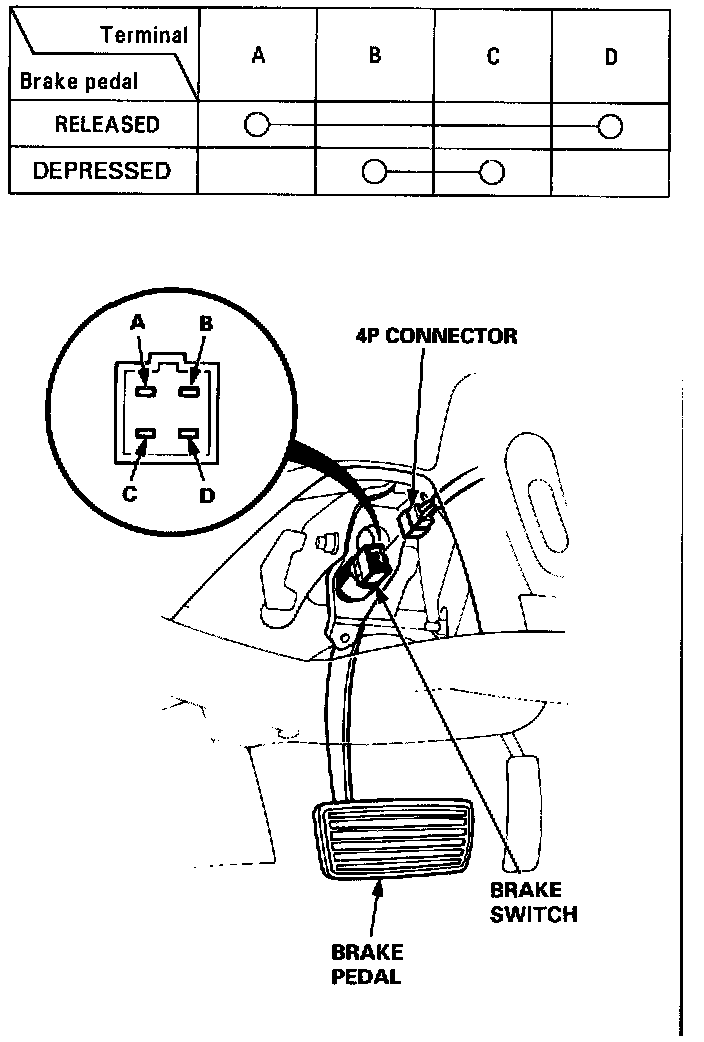

1. Disconnect the 4P connector from the switch.

Brake Switch Test:

Actuator Assembly Test:

2. Check for continuity between the terminals according to the table.
3. If necessary, replace the switch or adjust the pedal height.
