Torque Converter Clutch Solenoid: Service and Repair

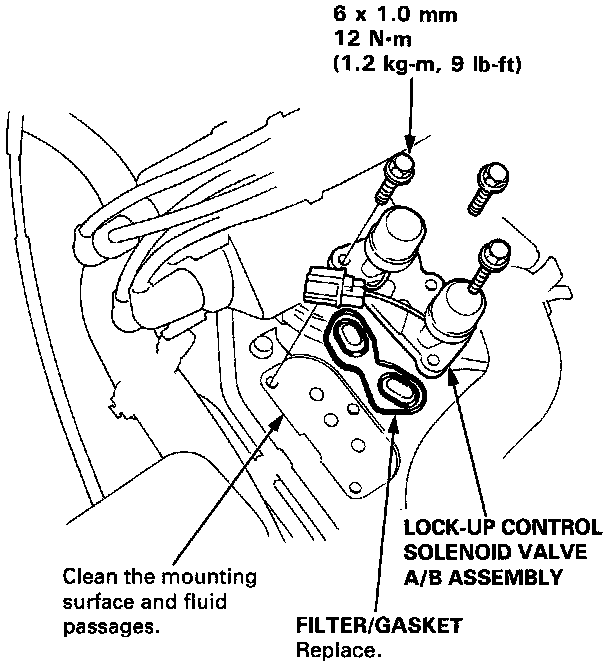

1. Remove the mounting bolts and lock-up control solenoid valve A/B assembly.

NOTE: Be sure to remove or replace the lock-up control solenoid valves A and B as an assembly.

2. Check the lock-up control solenoid valve fluid passages for dust or dirt, and replace as an assembly, if necessary.




3. Clean the mounting surface and fluid passages of the lock-up control solenoid valve A/B assembly, and install a new lock-up control solenoid valve A/B assembly with a new filter/gasket.
4. Check the connector for rust, dirt or oil and reconnect it securely.
