With Manufacturer's Scan Tool

When the Malfunction Indicator Lamp (MIL) has been reported on, or there is a driveability problem, use the appropriate procedure below to diagnose and repair the problem.




When the MIL has come on:

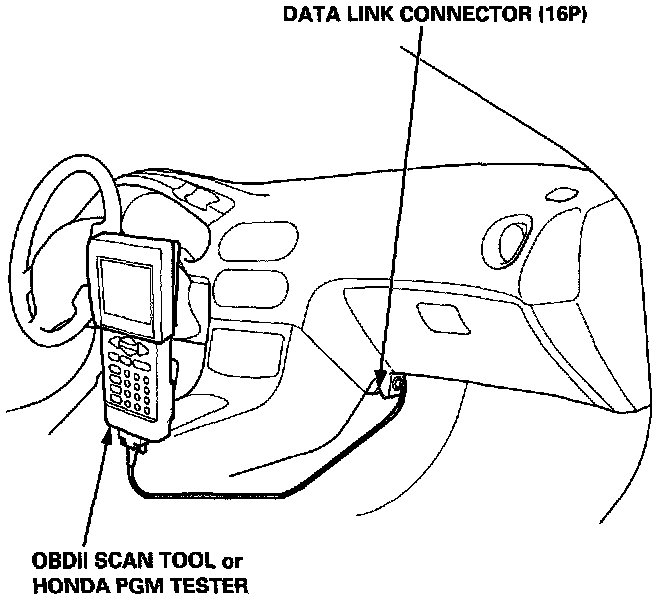

1. Connect the Honda PGM Tester or an OBD-II scan tool to the 16P Data Link Connector (DLC) located on the right side of the center console behind a removable cover.
2. Turn the ignition switch ON.
3. Honda PGM Tester: Begin troubleshooting as indicated by the tester. The DTC troubleshooting flowcharts are not needed with the tester; follow the tester's prompts.
OBD-II scan tool: Check the DTC and note it. Also check and note the freeze frame data. Refer to the Diagnostic Trouble Code Chart and begin troubleshooting.

NOTE:
- See the OBD-II scan tool or Honda PGM Tester user's manuals for specific operating instructions.
- The scan tool or tester can read the Diagnostic Trouble Codes (DTC), freeze frame data, current data, and other Engine Control Module (ECM) data.
- Freeze frame data indicates the engine conditions when the first malfunction, misfire or fuel trim malfunction was detected. It can be useful information when troubleshooting.


When the MIL has not come on, but there is a driveability problem, refer to Diagnosis by Symptom. Symptom Related Diagnostic Procedures
