Turn Signals: Service and Repair

Front Turn Signal/Parking Lights

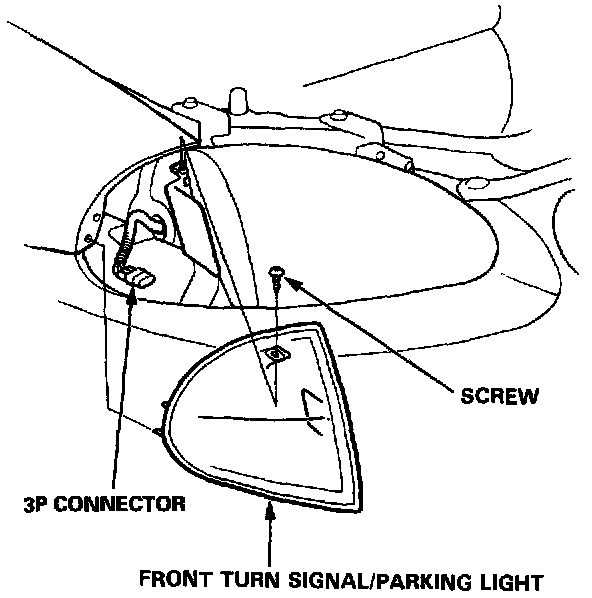

1. Remove the screw and carefully remove the light without damaging the headlight or the front fender.

Front Turn Signal/Parking Lights Replacement:

2. Disconnect the 3P connector from the light.

Front Turn Signal/Parking Lights Replacement:

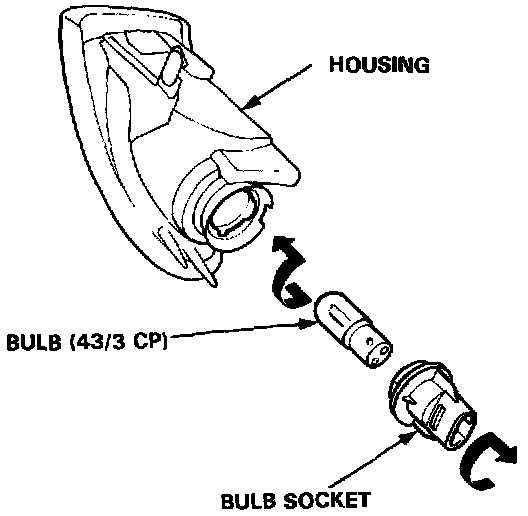

3. Turn the bulb socket 45° counterclockwise to remove it from the housing, then replace the bulb.
