Trunk Lamp: Service and Repair

Trunk Light Test/Replacement

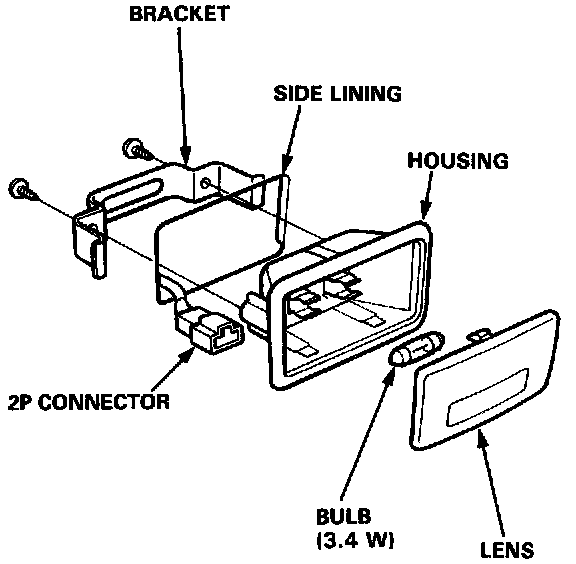

NOTE: The bulb alone can be replaced by removing just the lens.

1. Carefully remove the trunk side panel.

Trunk Light Test/Replacement:

2. Remove the two screws, and disconnect the connector.
3. Remove the trunk light from the panel.

Trunk Light Test/Replacement:

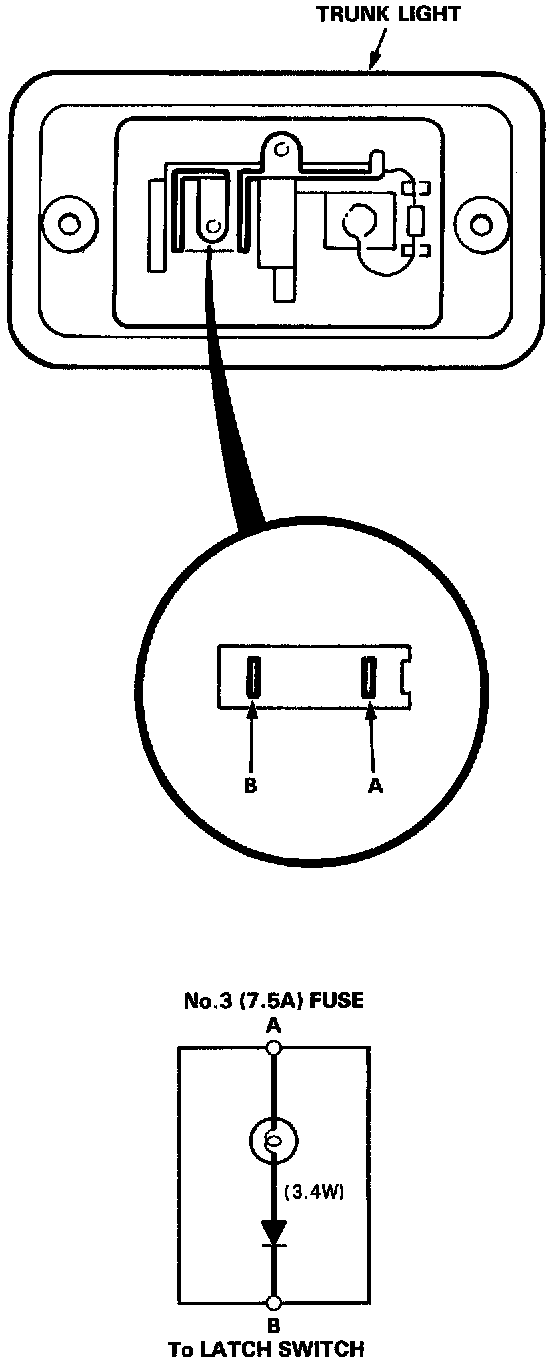

4. Check for continuity between the A and B terminals. There should be continuity.

^ If there is no continuity with a good bulb installed, replace the light.
