Tail Light Bulb: Service and Repair
1.
Open the trunk lid, and remove the access panel.

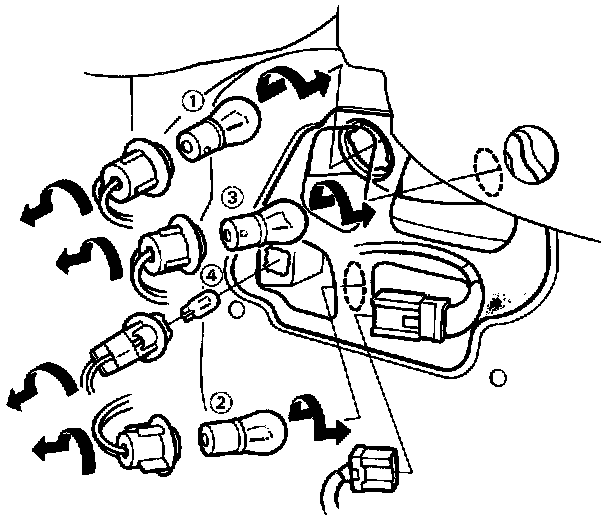

Bulb Replacement:
2.
Turn the bulb socket
45°
counterclockwise to remove it from the housing, then replace the bulb.
