Turn Signal Relay: Testing and Inspection

Turn Signal/Hazard Relay Input Test

Turn Signal/Hazard Relay Input Test:

CAUTION:

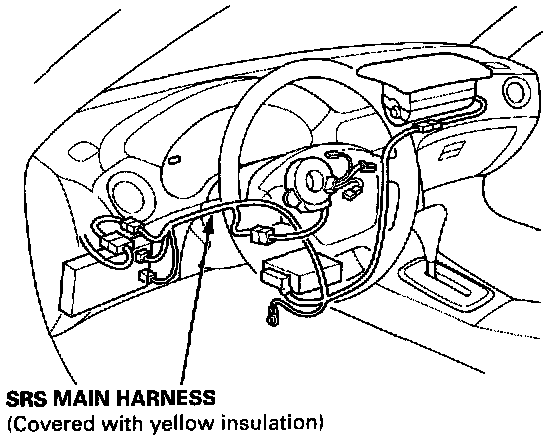

^ All SRS wire harnesses are covered with yellow insulation. Before you disconnect any part of an SRS wire harness, disconnect the airbag connectors.
^ Whenever the ignition switch is ON (II), or has been turned OFF for less than three minutes, be careful not to bump the SRS unit; the airbags could accidentally deploy and cause damage or injuries.
^ For additional precautions, refer to the Air Bags and Seat belts.

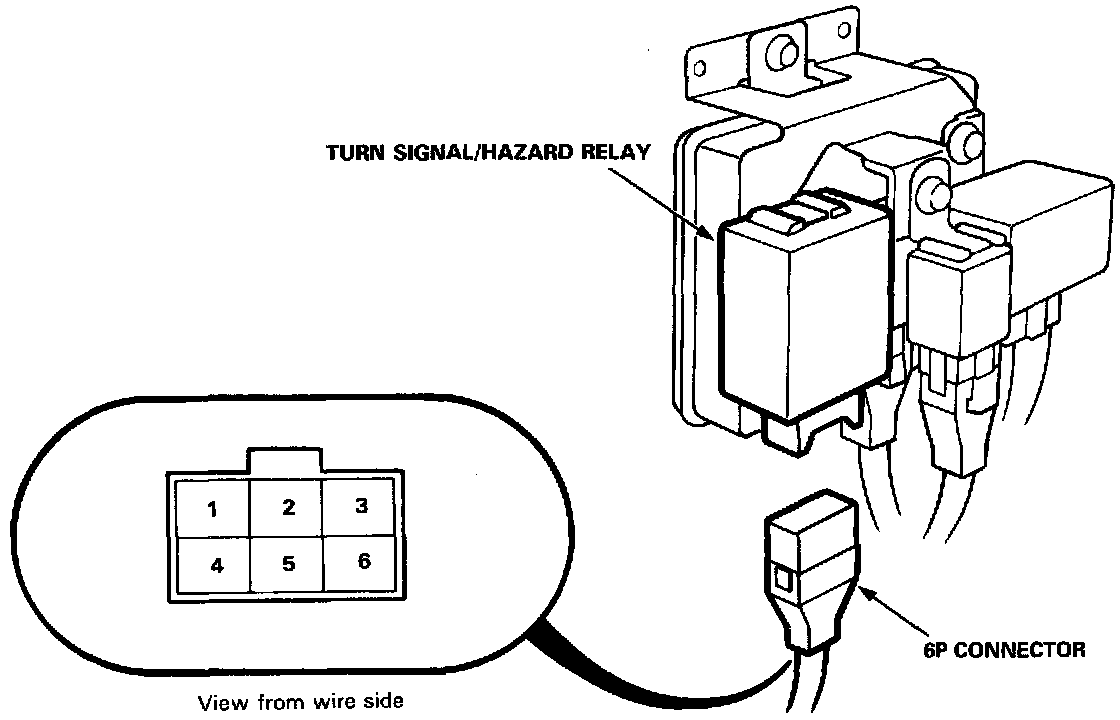

1. Remove the driver's side kick panel, then disconnect the 6P connector from the turn signal/hazard relay.

Turn Signal/Hazard Relay Input Test:

Turn Signal/Hazard Relay Input Test:

2. Inspect the connector and socket terminals to be sure they are all making good contact.
^ If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.

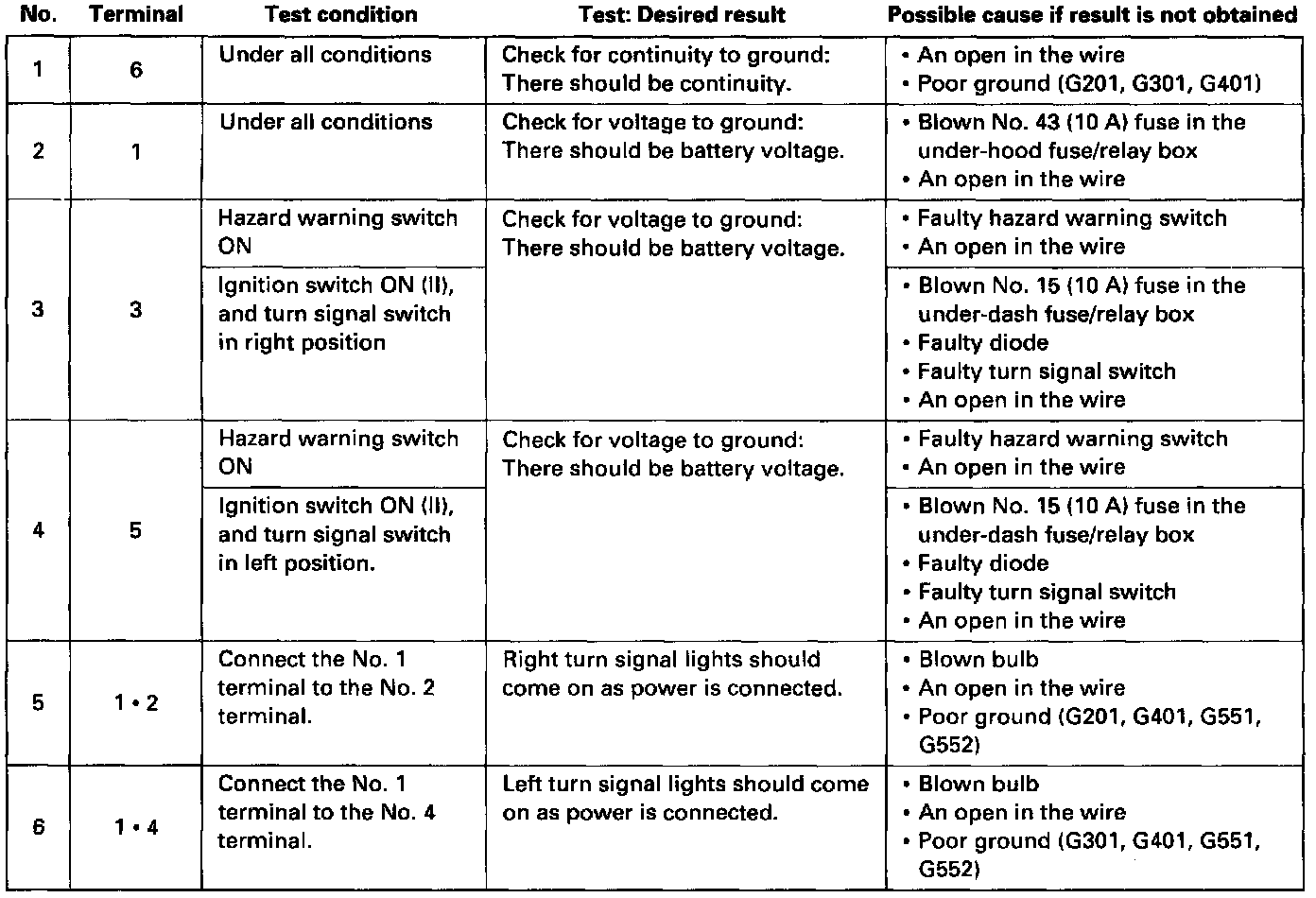

^ If the terminals look OK, make the following input tests at the connector terminals.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all input tests prove OK, the turn signal/hazard relay must be faulty; replace it.
