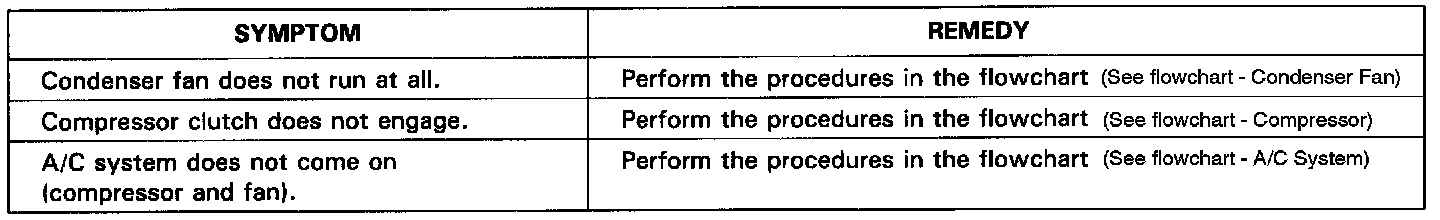

Reference Chart

Reference Chart:

- Any abnormality must be corrected before continuing the test.
- Because of the precise measurements needed, use a multimeter when testing.

Before performing any troubleshooting procedures check:
^ Fuses No. 41 (80 A), No. 39 (50 A), No. 13 (7.5 A), No. 35 (20 A)
^ Grounds No. G751, G201, G401
^ Cleanliness and tightness of all connectors.
