Compressor HVAC: Testing and Inspection

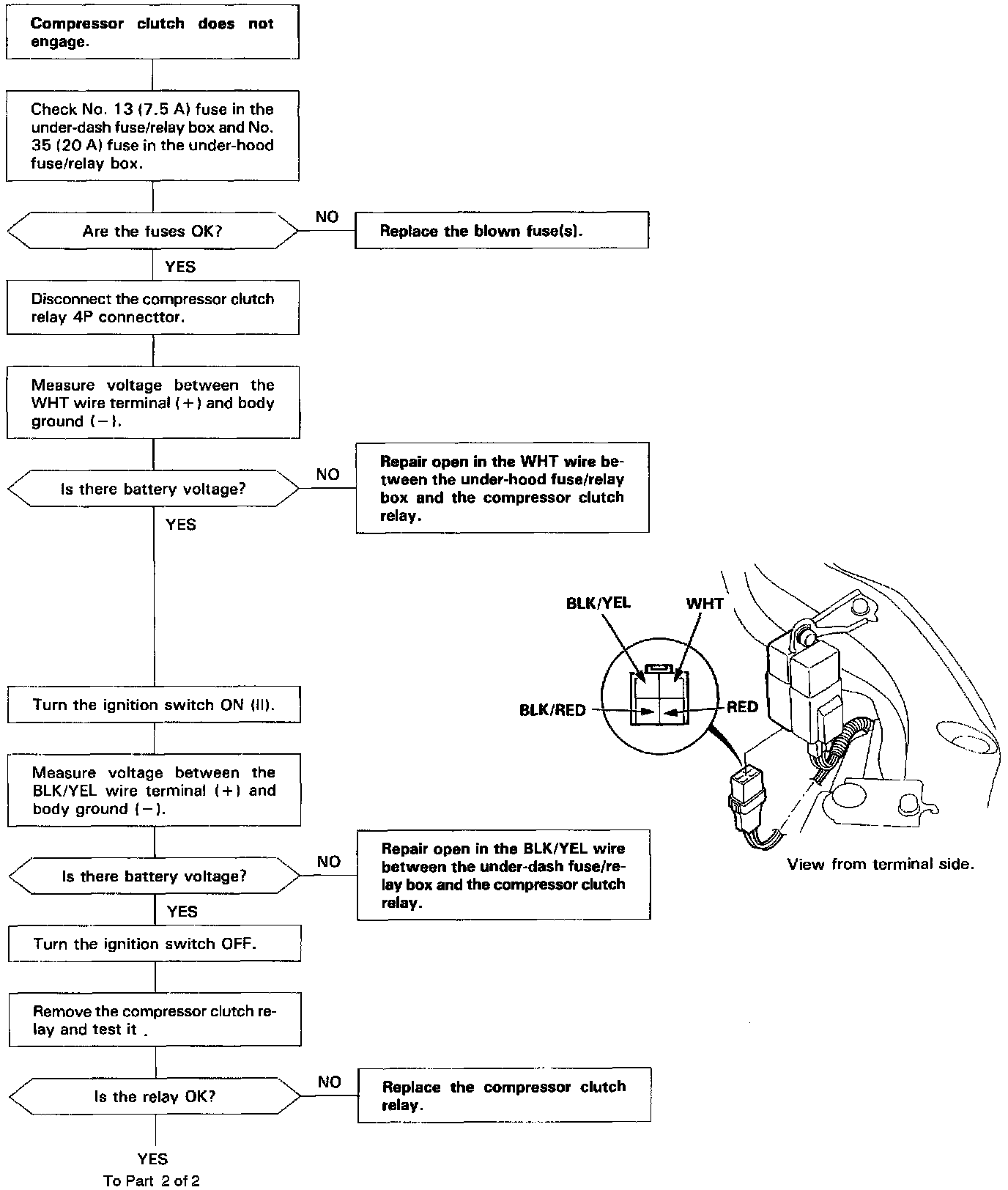

Flow Chart-Compressor (Part 1 Of 3):
NOTE:
First, check for
refrigerant
pressure.

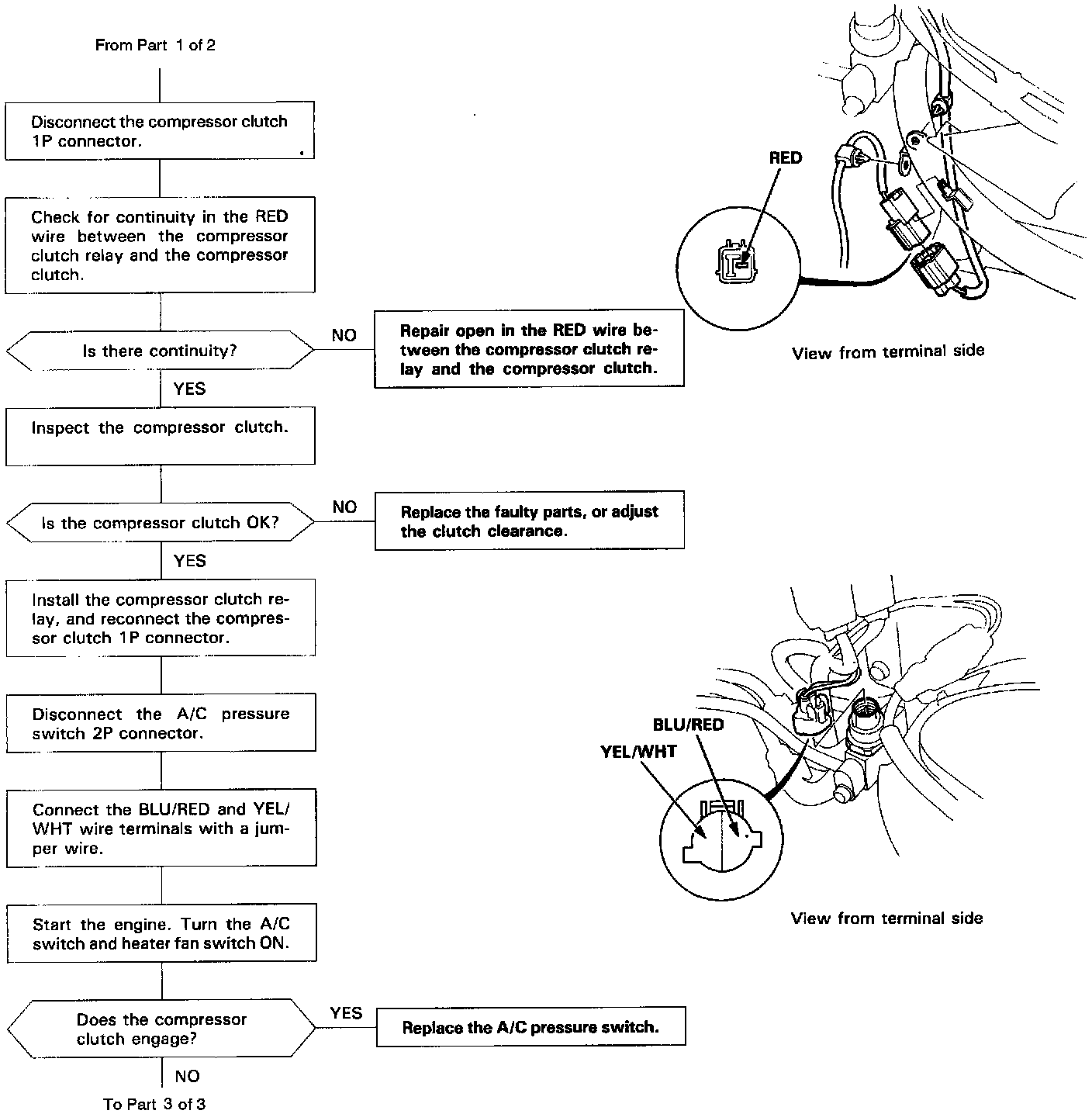

Flow Chart-Compressor (Part 2 Of 3):

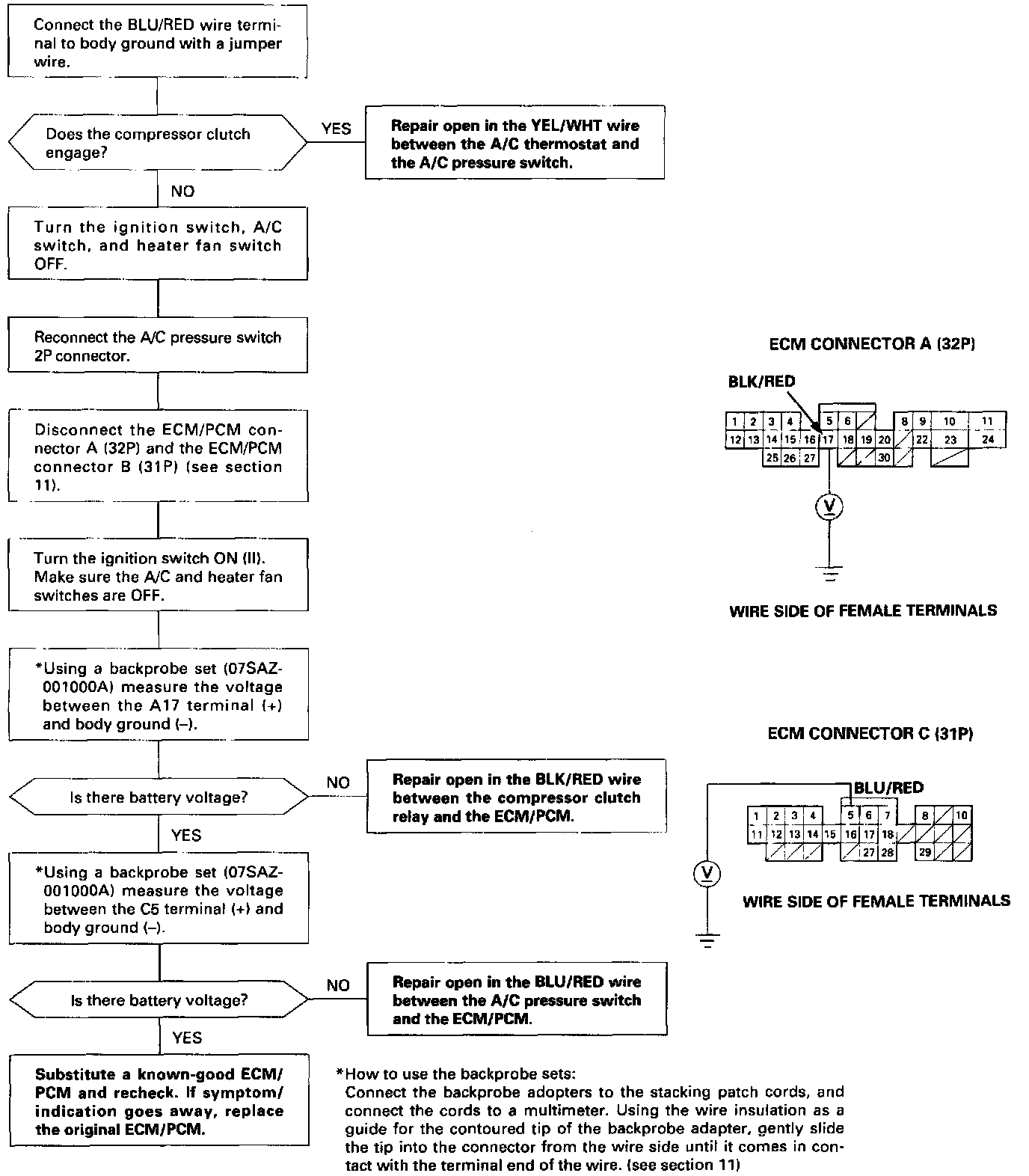

Flow Chart-Compressor (Part 3 Of 3):
