Del Sol L4-1.6L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Canada
Canada

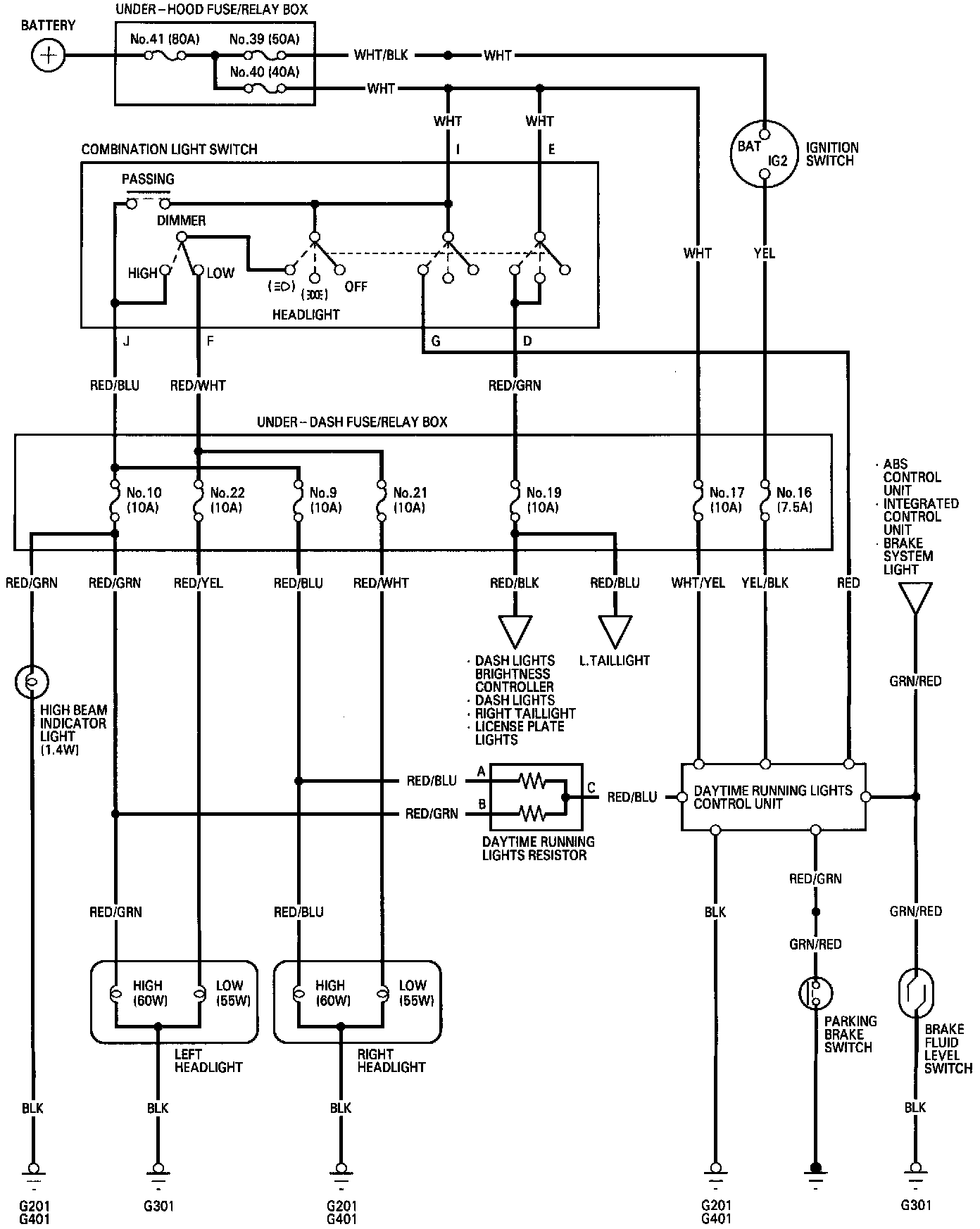

Lighting System-Circuit Diagram (Canada):
