Home >> Honda >> 1996 >> Del Sol L4-1.6L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Gauges >> Schematic

Schematic

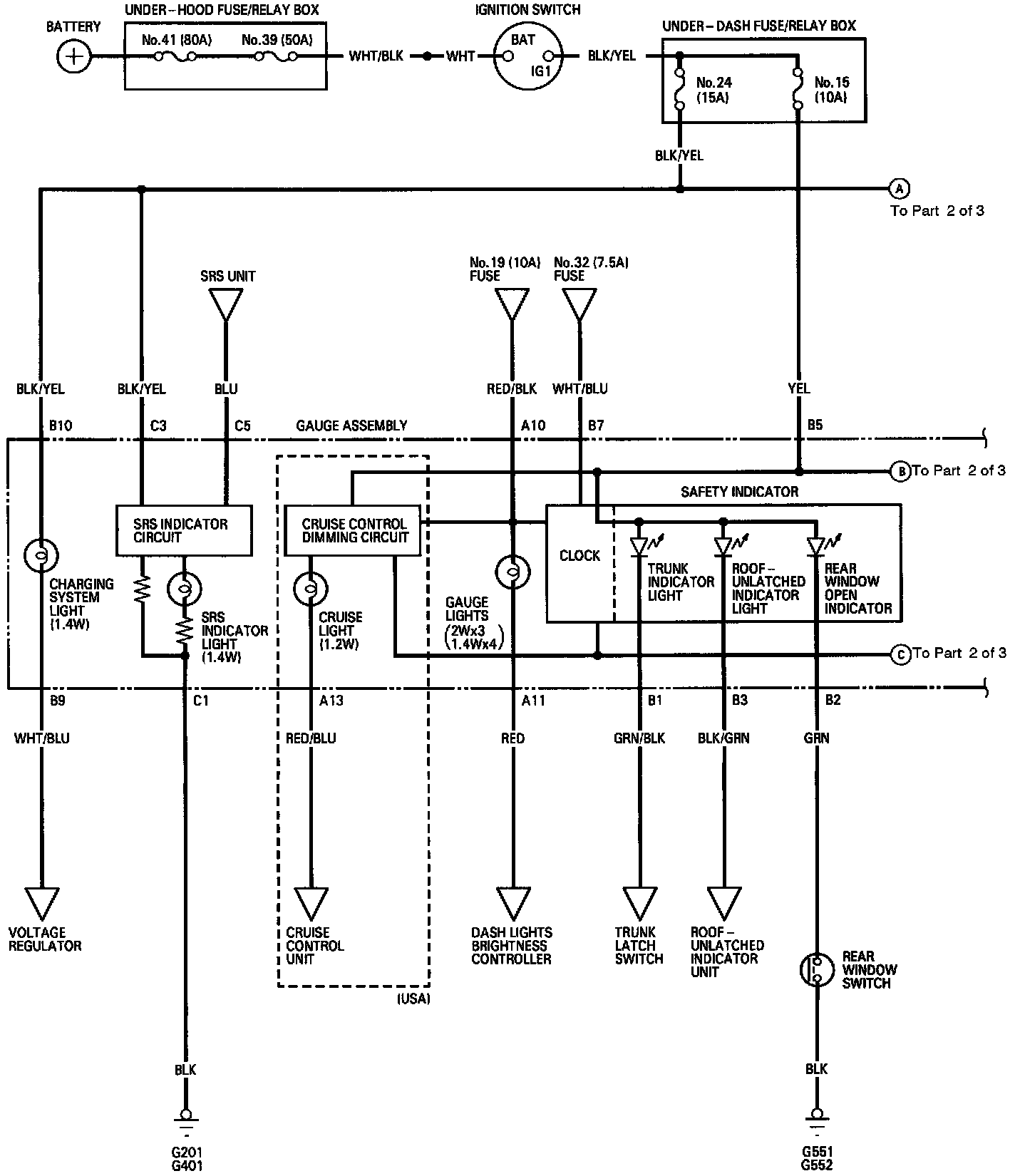

Circuit Diagram (Part 1 Of 3):

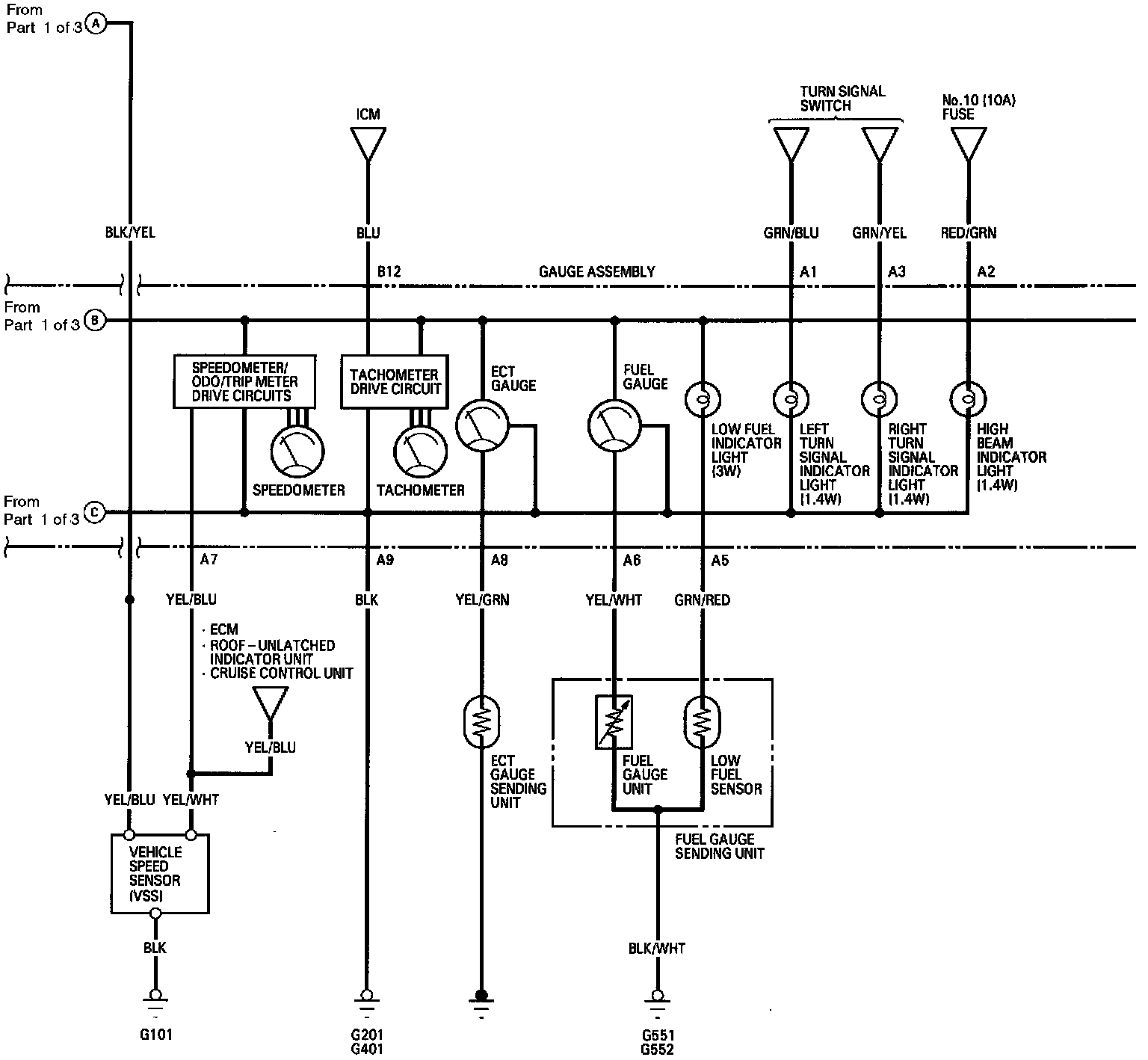

Circuit Diagram (Part 2 Of 3):

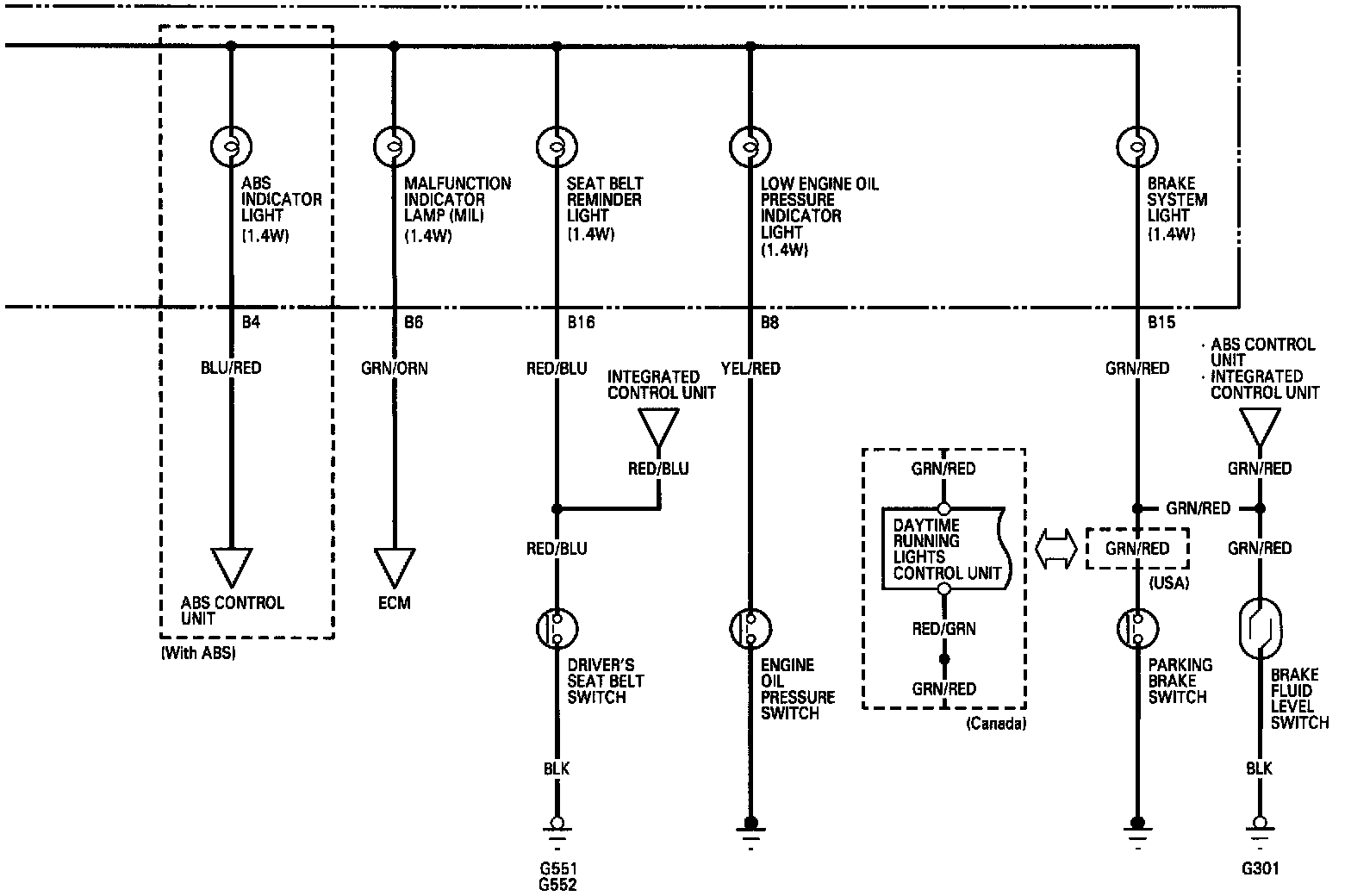

Circuit Diagram (Part 3 Of 3):
