Under-Hood Fuse/Relay Box

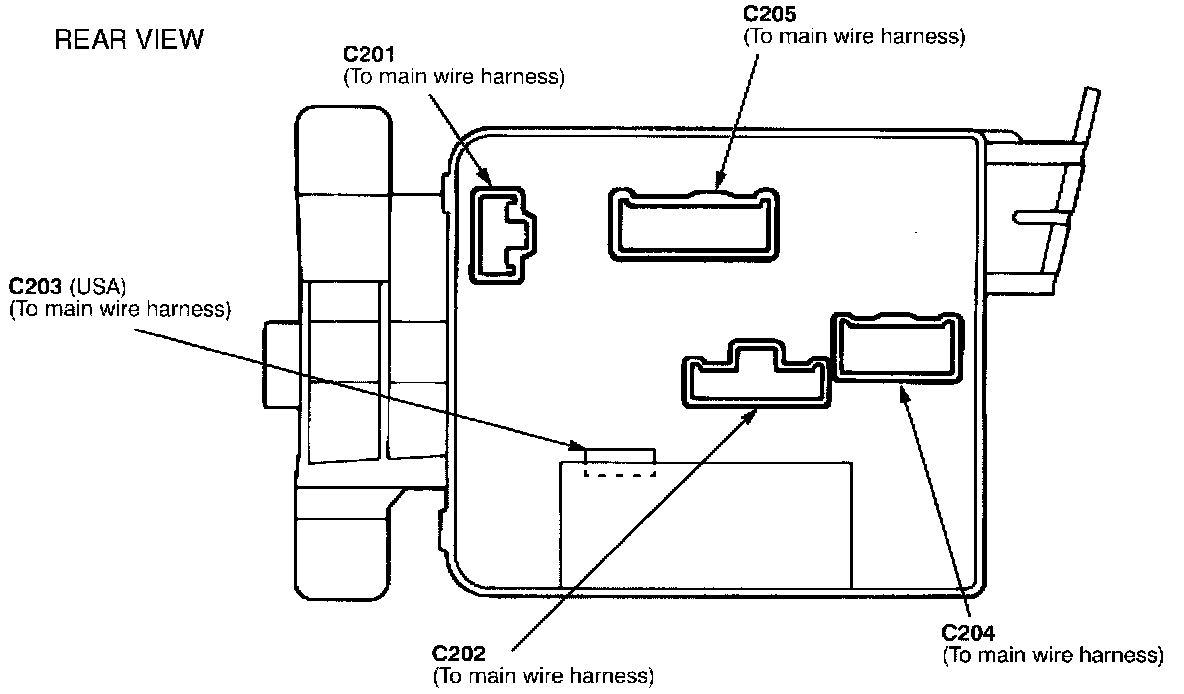

Fuse/Relay Information- Under-hood ABS Fuse/Relay Box (Part 1 Of 3):

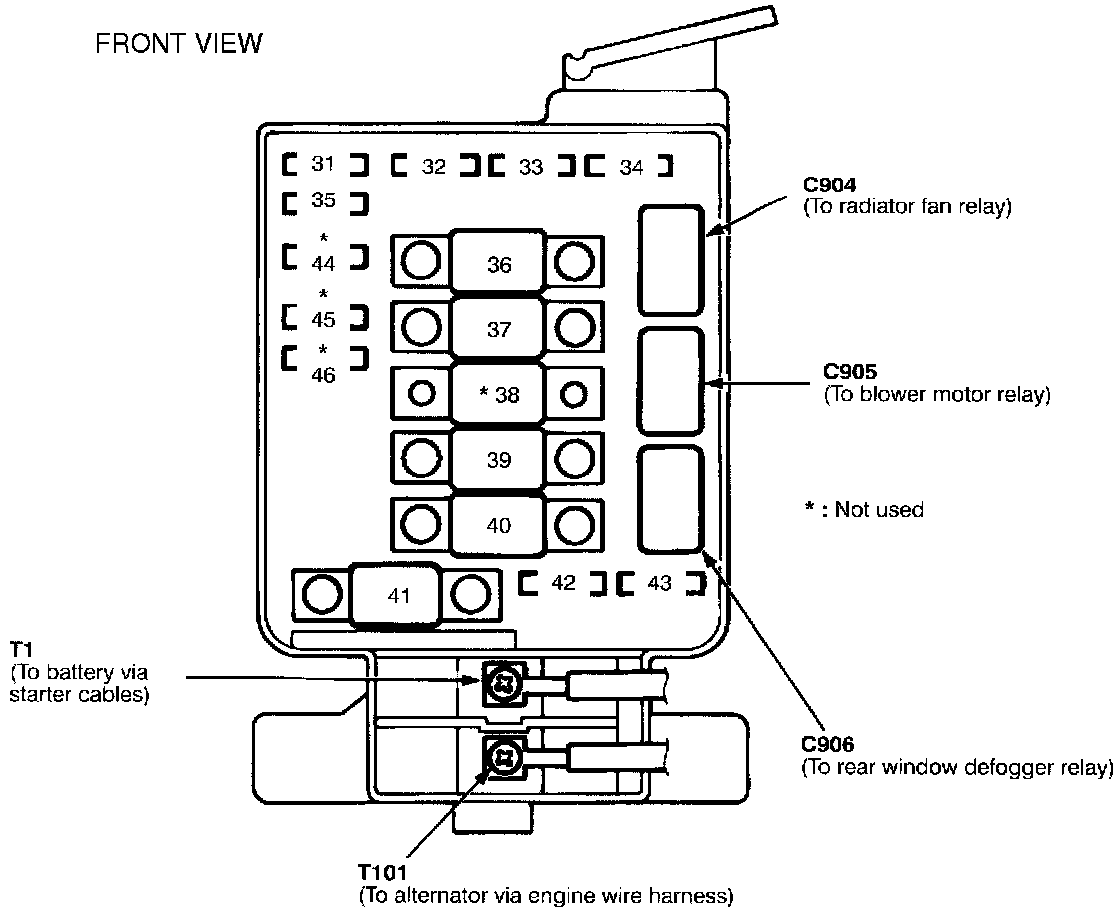

Fuse/Relay Information- Under-hood ABS Fuse/Relay Box (Part 2 Of 3):

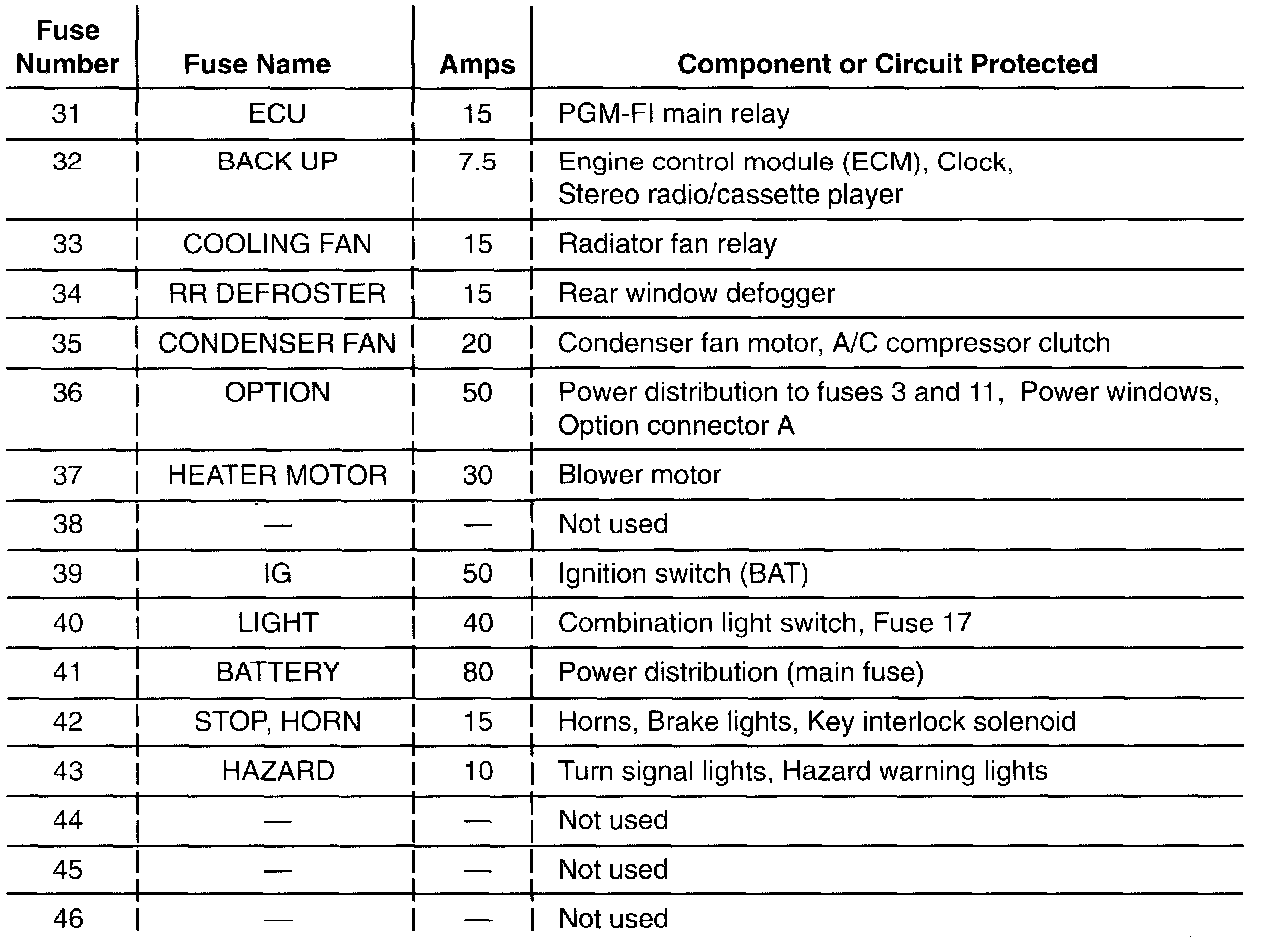

Fuse/Relay Information- Under-hood ABS Fuse/Relay Box (Part 3 Of 3):
