Symptom Related Diagnostic Procedures

Troubleshooting:

NOTE:

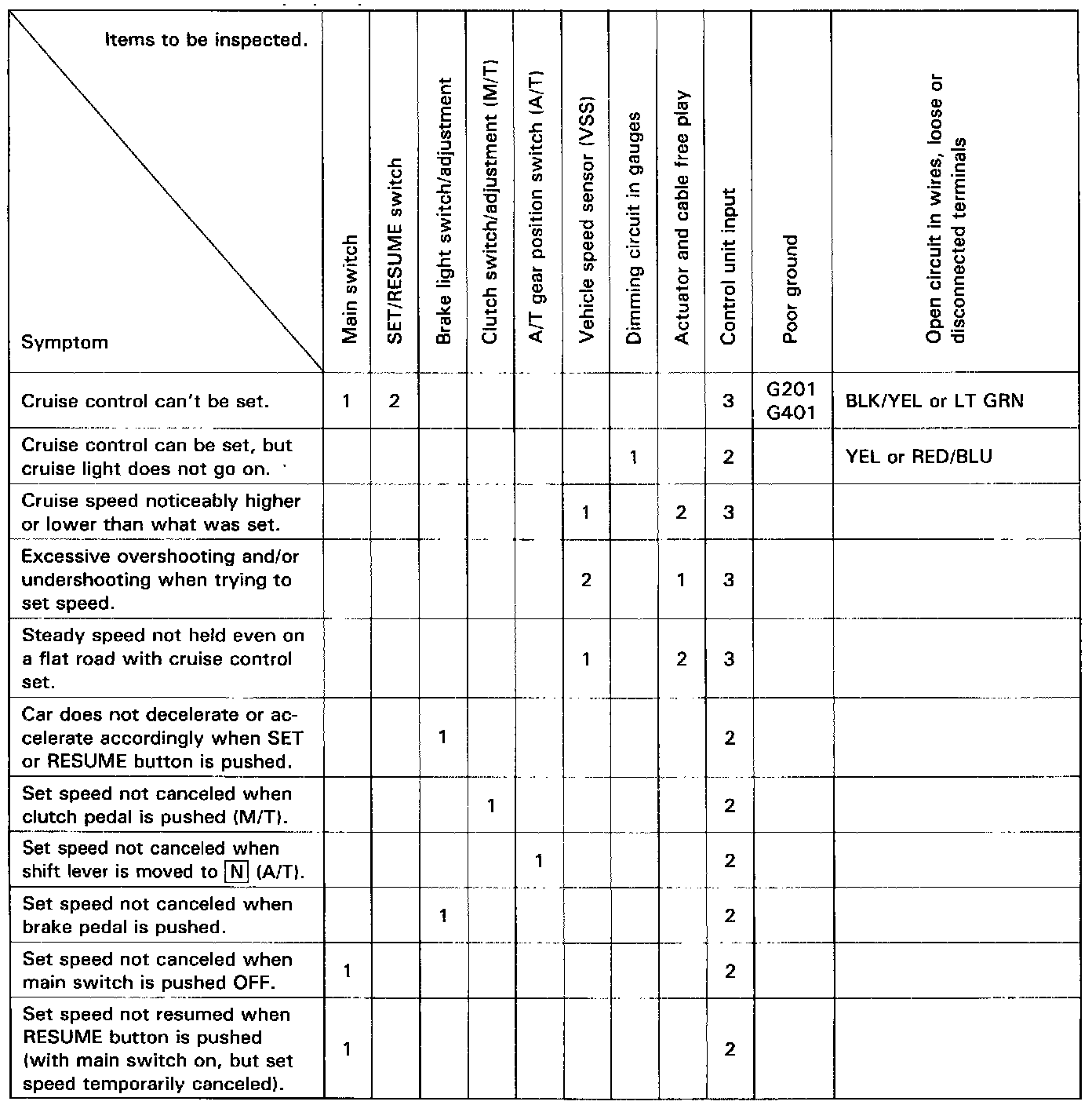

^ The numbers in the table show the troubleshooting sequence.
^ Before troubleshooting;
check the No. 15 (10 A) and No. 24 (15 A) fuses in the under-dash fuse/relay box, and the No. 41 (80 A), No. 39 (50 A), and No. 42 (15 A) fuses in the under-hood fuse/relay box.
- check that the horn works.
- check the tachometer for proper operation.
