Passenger's Door

1. Remove the passenger's door panel.

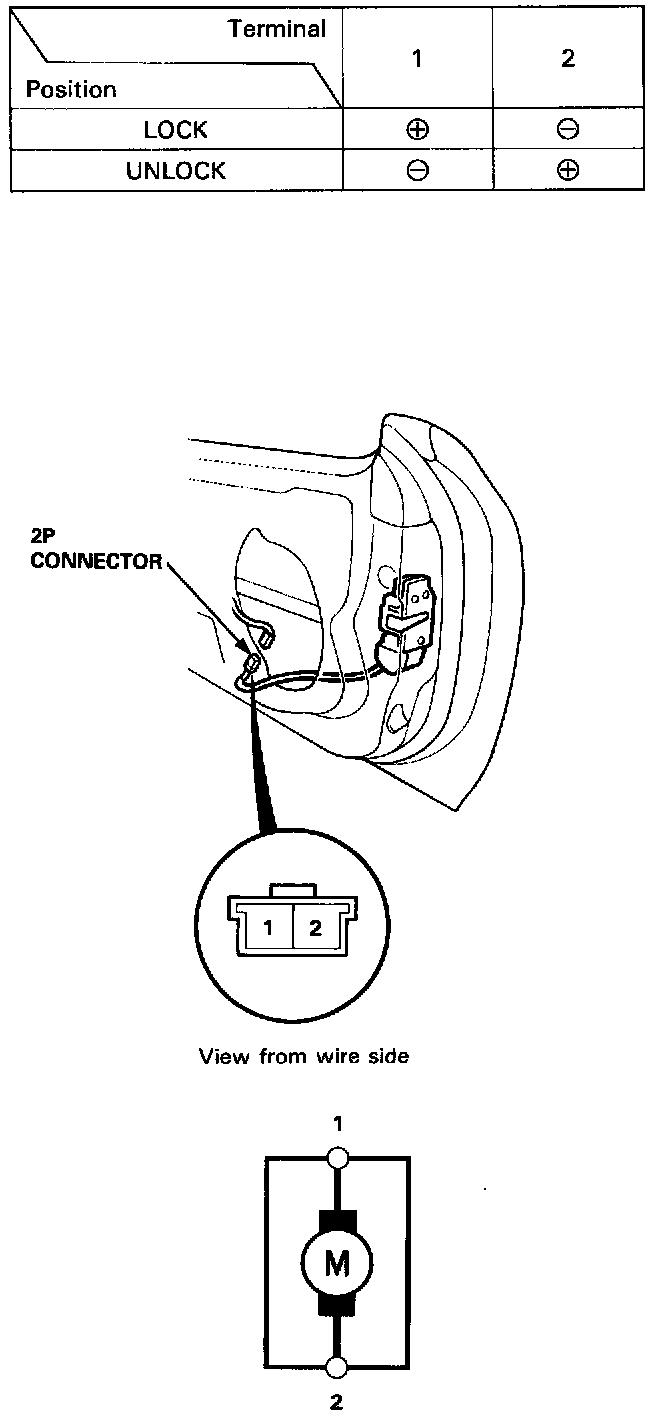

2. Disconnect the 2P connector from the actuator.

Passenger's Door Lock Actuator Test:

3. Check actuator operation by connecting power and ground according to the table.

CAUTION: To prevent damage to the actuator, apply battery voltage only momentarily.

^ If the actuator fails to work properly, replace it.
