Driver's Door

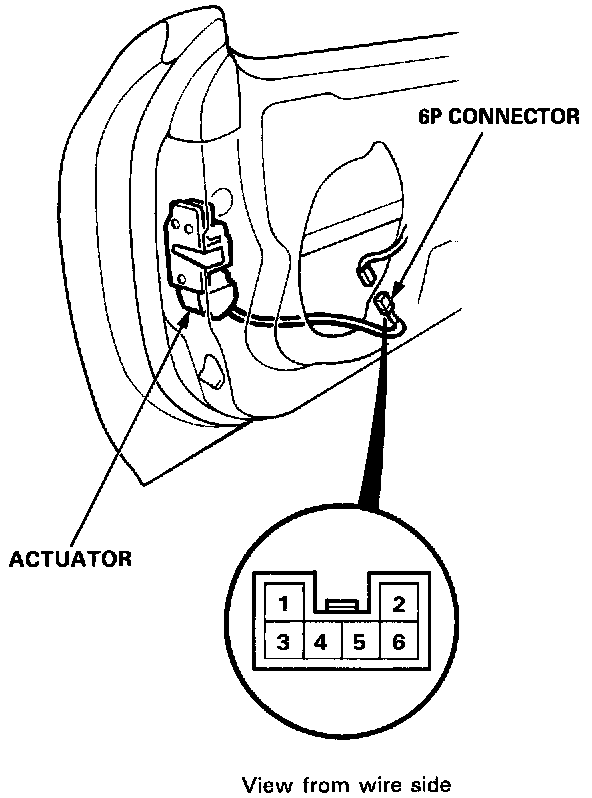

1. Remove the driver's door panel.
2. Disconnect the 6P connector from the actuator.

Driver's Door Lock Actuator Test:

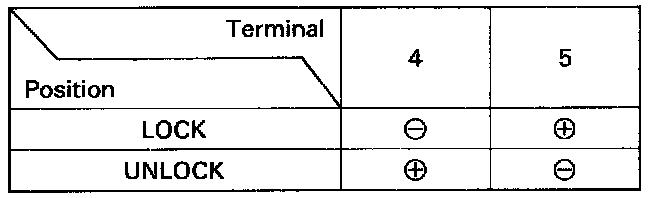

3. Check actuator operation by connecting power and ground according to the table.

Driver's Door Lock Actuator Test:

CAUTION: To prevent damage to the actuator, apply battery voltage only momentarily.

^ If the actuator fails to work properly, replace it.

Driver's Door Lock Actuator Test:

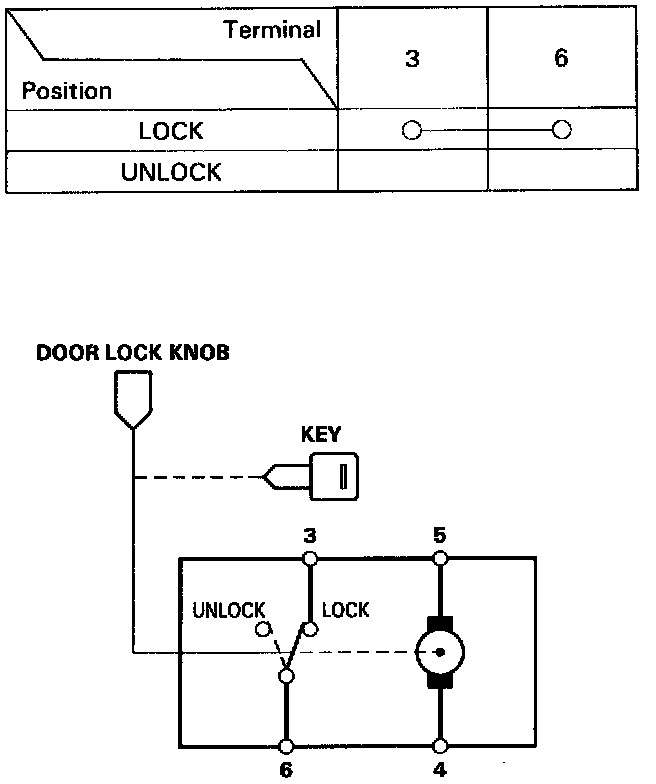

4. Check for continuity between the terminals in each switch position according to the table.
