Trunk / Liftgate Latch: Testing and Inspection

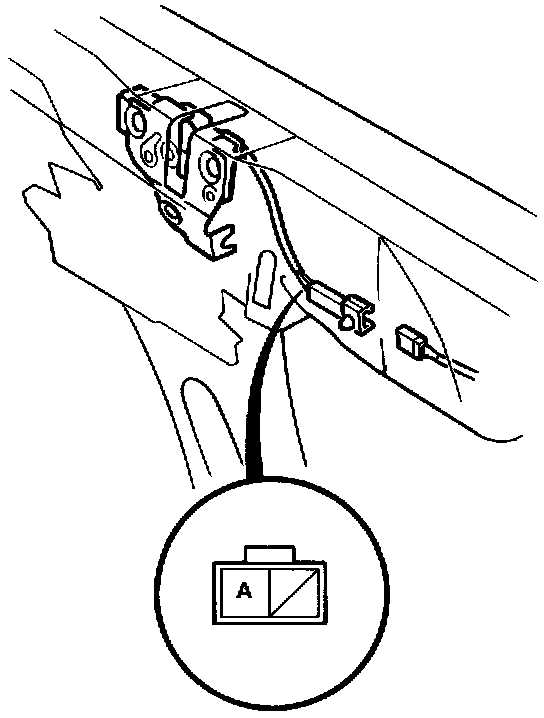

1. Open the trunk lid, and disconnect the 2P connector from the trunk latch assembly.

Latch Switch Test:

2. Check for continuity between the A terminal and body ground.
3. If there is no continuity, replace the trunk latch assembly.
