Rear Door Window Motor: Service and Repair

Glass/Regulator Replacement






1. Remove:
- Door panel
- Plastic cover
2. Carefully move the glass until you can see the bolts then remove them.

NOTE: Take care not to drop the glass inside the door.






3. Carefully lower the glass. Remove the bolts and screw from the rear channel thee remove the glass from the rear channel.

NOTE Take care not to drop the glass inside the door.






4. Carefully remove the glass from the window slot.

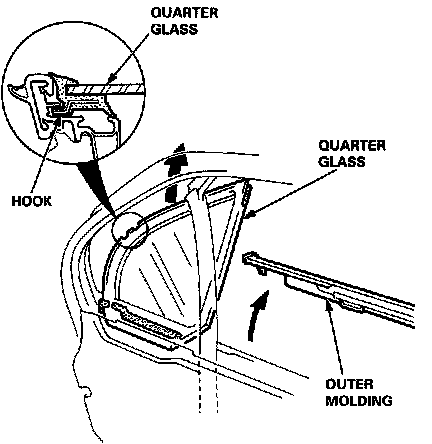

5. Remove the outer molding, then remove the quarter glass.






6. Disconnect the connector, and detach the harness clip, then remove the regulator through the hole in the door.

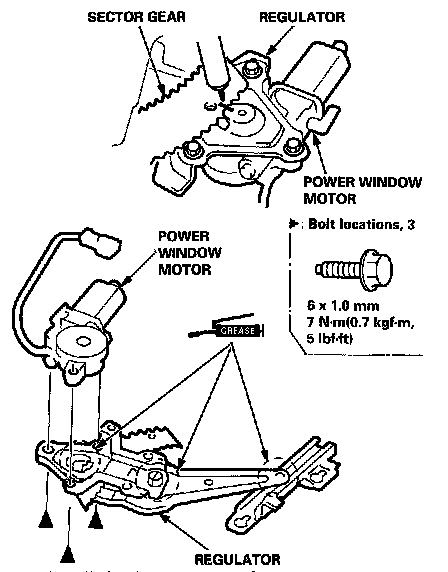

7. Grease all the sliding surfaces of the regulator where shown.






NOTE:
- If necessary, remove the power window motor from the regulator.
- Before removing the power window motor, scribe a line across the Sector gear and regulator.

8. Installation is the reverse of the removal procedure.

NOTE: Roll the glass up and down to see if it moves freely without binding. Also make sure that there it no clearance between the glass and glass run channel when the glass it closed. Adjust the position of the glass at necessary.
