Reverse Shift Holder

CLEARANCE

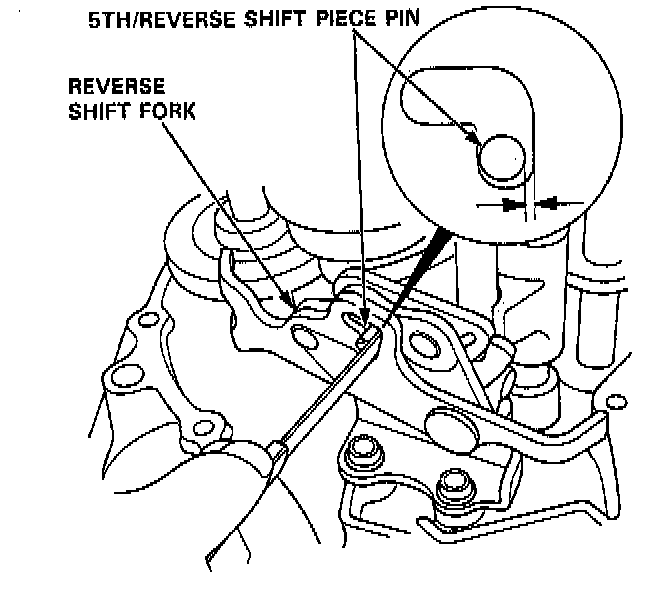

1. Measure the clearance between the reverse shift fork and 5th/reverse shift piece pin.
- Standard: 0.05 - 0.35 mm (0.002 - 0.014 inch)
- Service Limit: 0.5 mm (0.02 inch)





2. If the clearances are more than the service limit, measure the widths of the groove in the reverse shift fork. Standard: 7.05 - 7.25 mm (0.278 - 0.285 inch)
- If the widths of the grooves are not within the standard, replace the reverse shift holder with a new one.
- If the width of the grooves are within the standard, replace the 5th/reverse shift piece with a new one.

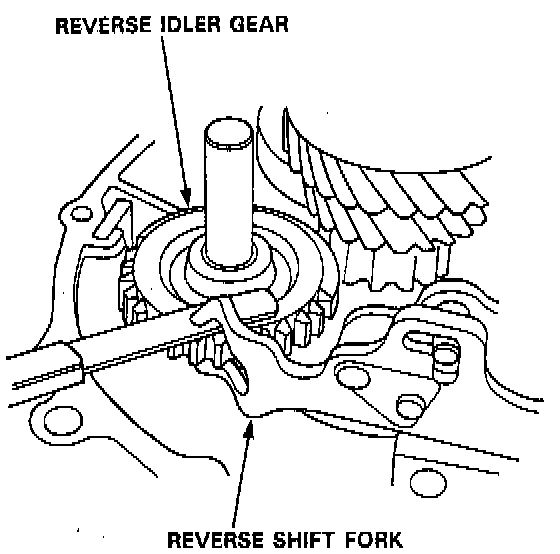

3. Measure the clearance between the reverse idler gear and the reverse shift fork.
- Standard: 0.5 - 1.1 mm (0.02 - 0.04 inch)
- Service Limit: 1.8 mm (0.07 inch)

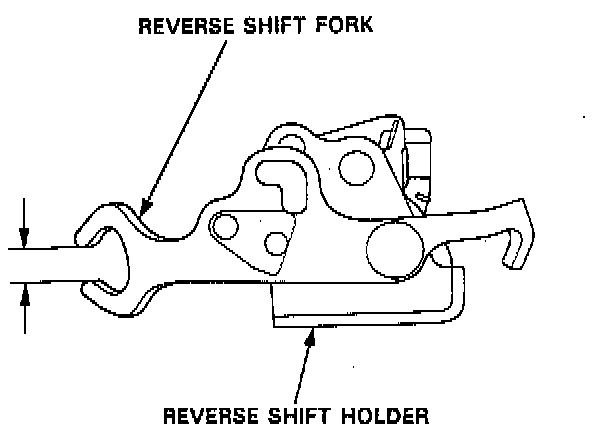

4. If the clearance is more than the service limit, measure the width of the reverse shift fork. Standard: 12.7 - 13.0 mm (0.500 - 0.512 inch)
- If the width is not within the standard, replace the reverse shift holder with a new one.
- If the width is within the standard, replace the reverse idler gear with a new one.
