Differential: Testing and Inspection

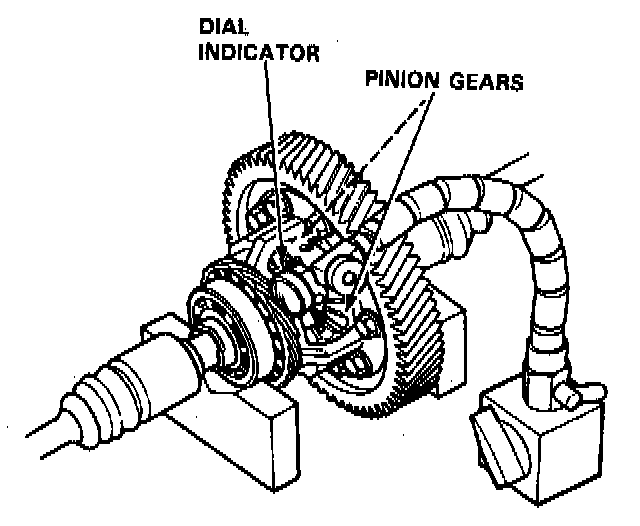

1. Place differential assembly on V-blocks, and install both driveshafts.
2. Measure backlash of both pinion gears. Standard (New): 0.05 - 0.15 mm (0.002 - 0.006 inch).
3. If the backlash is not within the standard, replace the differential carrier.
