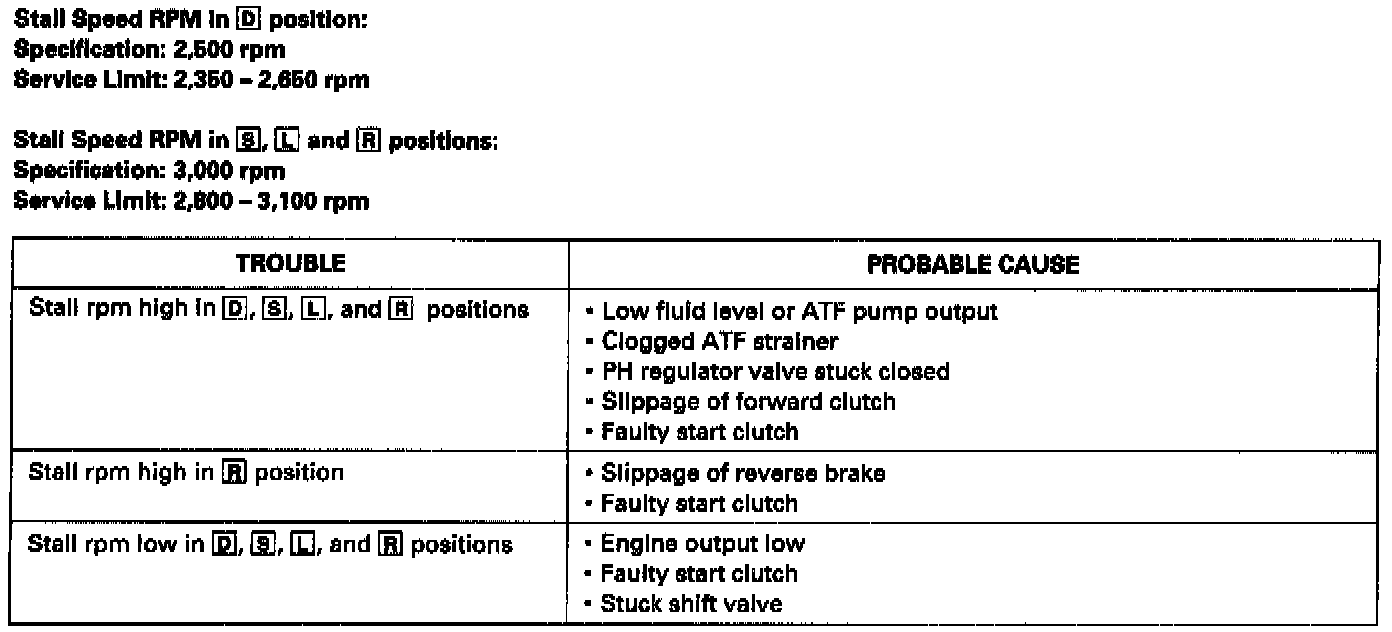

Stall Speed Test

TEST

CAUTION:
- To prevent transmission damage, do not test stall speed for more than 10 seconds at a time.
- Do not shift the lover while raising the engine speed.
- Be sure to remove the pressure gauge before testing stall speed.
- Stall speed tests should be used for diagnostic purposes only.

1. Engage the parking brake, and block the front wheels.
2. Connect a tachometer to the engine, and start the engine.
3. Make sure the A/C switch is OFF.
4. After the engine has warmed up to normal operating temperature (the radiator fan comes on), shift into [D] position.
5. Fully depress the brake pedal and accelerator for 6 to 8 seconds, and note engine speed.





6. Allow two minutes for cooling, then repeat the test in and [S],[L], and [R] positions.
