Differential: Testing and Inspection

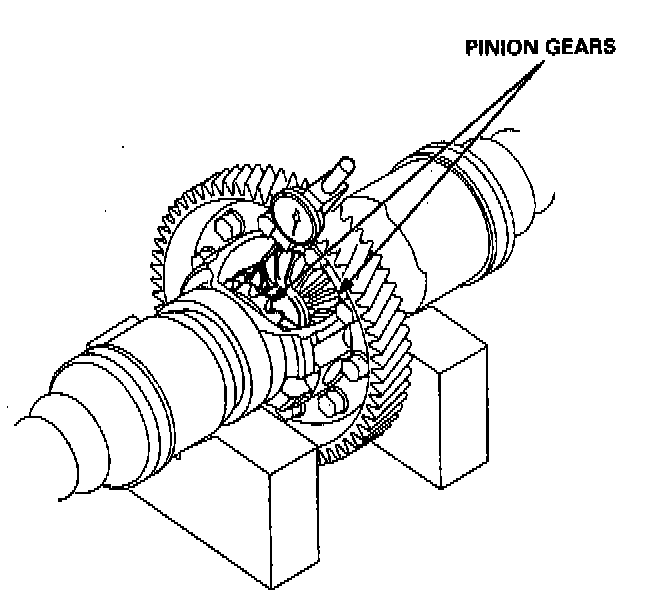

1.Place the differential assembly on V-blocks, and install both axles.





2. Check the backlash of both pinion gears. Standard (New): 0.05-0.15 mm (0.002-0.006 inch).
3. If the backlash is out of tolerance, replace the differential carrier.
