Shifter A/T: Adjustments

ADJUSTMENT

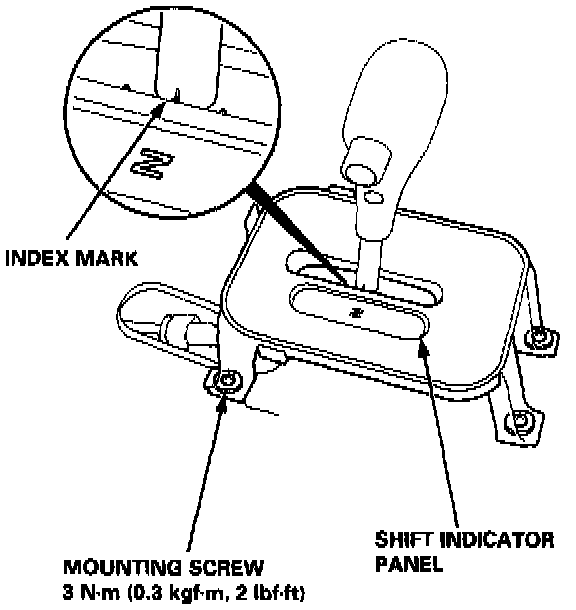

1. Check that the index mark on the indicator aligns with the [N] mark on the shift indicator panel when the transmission is in NEUTRAL.
2. If not aligned, remove the front console.
3. Remove the shift indicator panel mounting screws and adjust by moving the panel.

NOTE: Whenever the shift indicator panel is removed, reinstall the panel as described above.
