Seals and Gaskets: Service and Repair
Transaxle Side Seals ,A/TTOOL REQUIRED
- 07746-0030100 Driver 40 mm I.D.
- 07JAD-PH80200 Pilot, 26 x 30 mm
- 07749-0010000 Driver
- 07947-6110501 Driver Attachment, 68 mm
- 07947-6340201 Driver Attachment, 58 x 72 mm
REMOVAL
1. Remove the differential assembly.

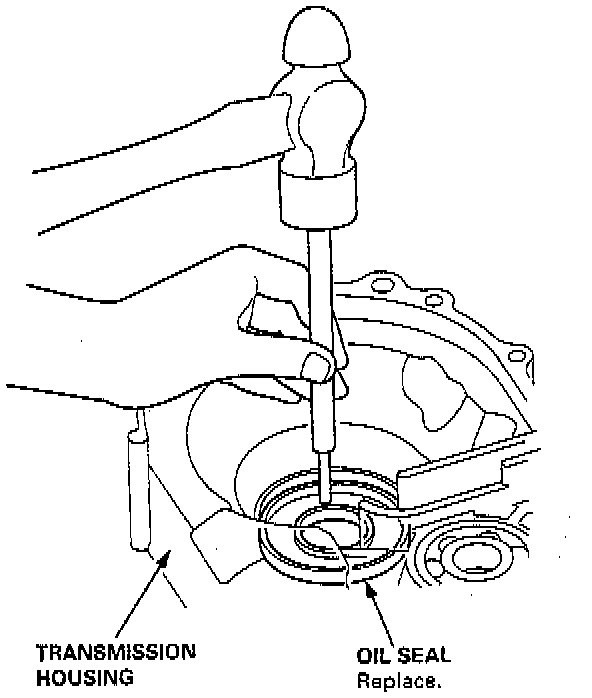

2. Remove the oil seal from the transmission housing.

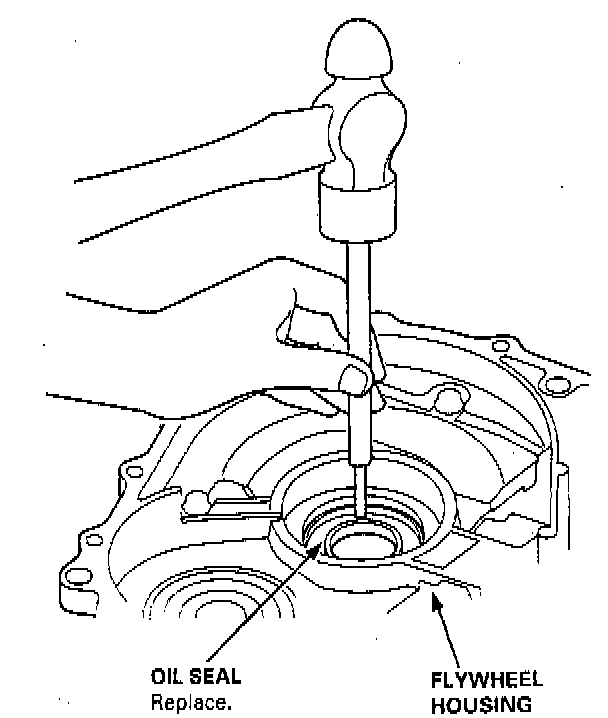

3. Remove the oil seal from the flywheel housing.
INSTALLATION
1. Install a 2.50 mm (0.098 inch) 80 mm set ring in the flywheel housing.
NOTE: Do not install the oil seal yet.

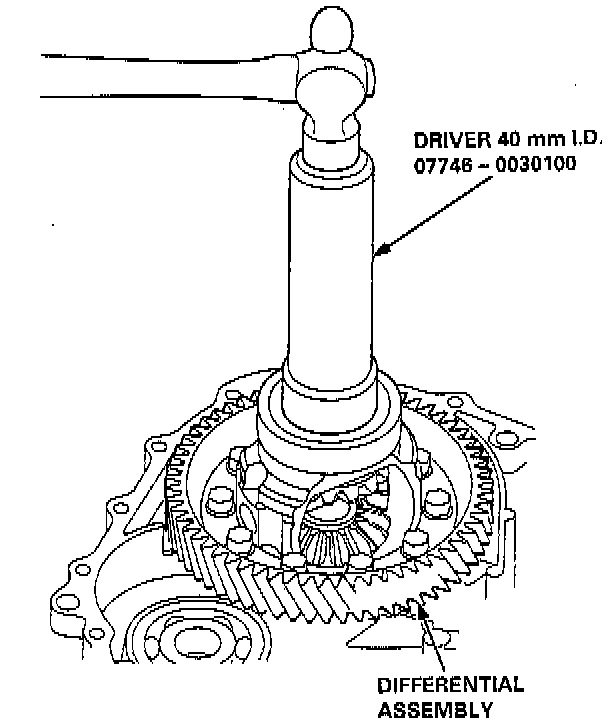

2. Install the differential assembly into the transmission housing using the special tool as shown.
3. Install the flywheel housing, and tighten the bolts.

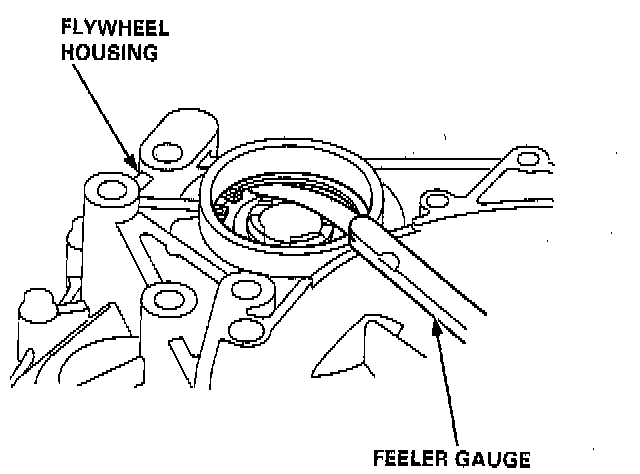

4. Measure the clearance between the 80 mm set ring and outer race of the ball bearing in the flywheel housing. Standard: 0 - 0.15 mm (0 - 0.006 inch)
5. If the clearance is more than the standard, select a new 80 mm set ring from the following table and install it.
NOTE: If the 80 mm set ring-to-ball bearing outer race clearance measured in step 5 is less than the specification, it is not necessary to perform steps 7 and 8.
6. Remove the flywheel housing.

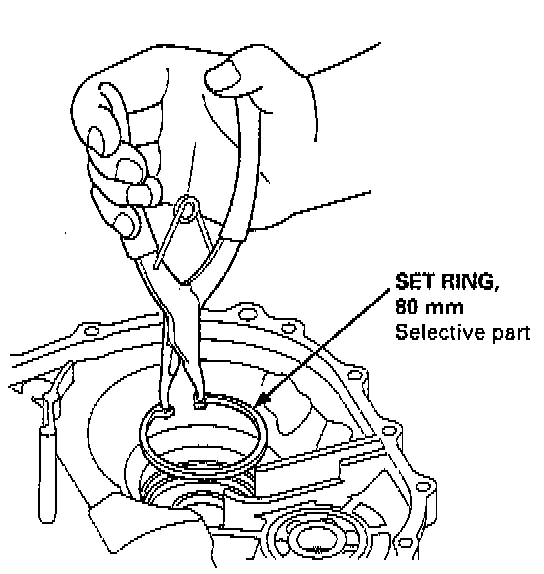

7. Replace the 2.50 mm (0.098 inch) 80 mm set ring with the one of the correct thickness selected in step 5.
8. Install the oil seal in the transmission housing using the special tools as shown.

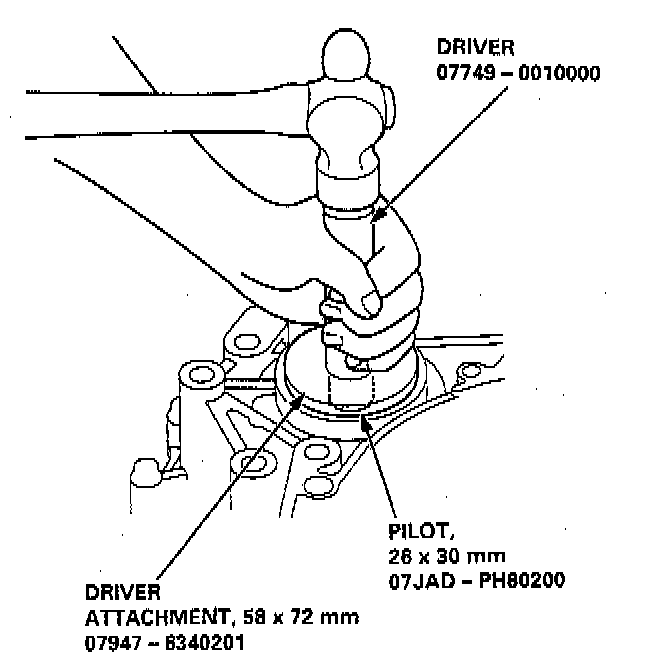

9. Install the oil seal in the flywheel housing using the special tools as shown.
