Fuse Box Cover - Falls Off

00-007

February 15, 2000

Applies To:
1996-00 Civic - See VEHICLES AFFECTED

Fuse Box Cover Falls Off

PROBLEM
The cover for the under-dash fuse box (to the left of the steering column) falls off.

CORRECTIVE ACTION
Replace the spring clip on the cover.

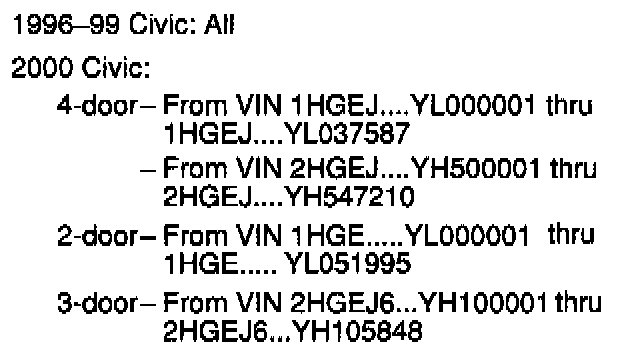

VEHICLES AFFECTED

PARTS INFORMATION
Spring Clip: P/N 90666-SD4-003, H/C 2601532

WARRANTY CLAIM INFORMATION

In warranty: The normal warranty applies.

Operation Number: 841125
Flat Rate Time: 0.2 hour
Failed Part: P/N 90666-SD4-003
H/C 2601532
Defect Code: 004
Contention Code: A02
Template ID: 00-007A
Skill Level: Repair Technician

Out of warranty: Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

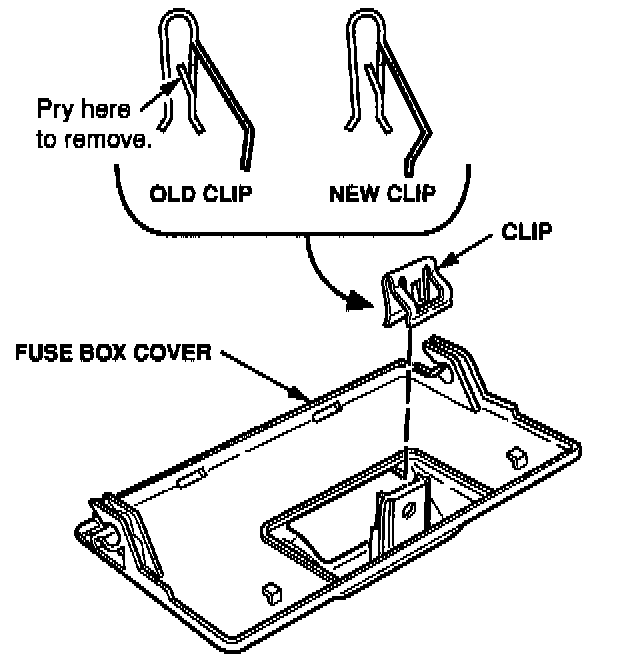

REPAIR PROCEDURE

1. Remove the fuse box cover from the dashboard.





2. Use a small screwdriver to remove the clip from the fuse box cover. Discard the clip.

3. Install the new spring clip on the cover.

4. Install the cover in the dashboard and check that it fits securely. If it does not, bend the arm on the spring clip up slightly.
