Charging System: Testing and Inspection

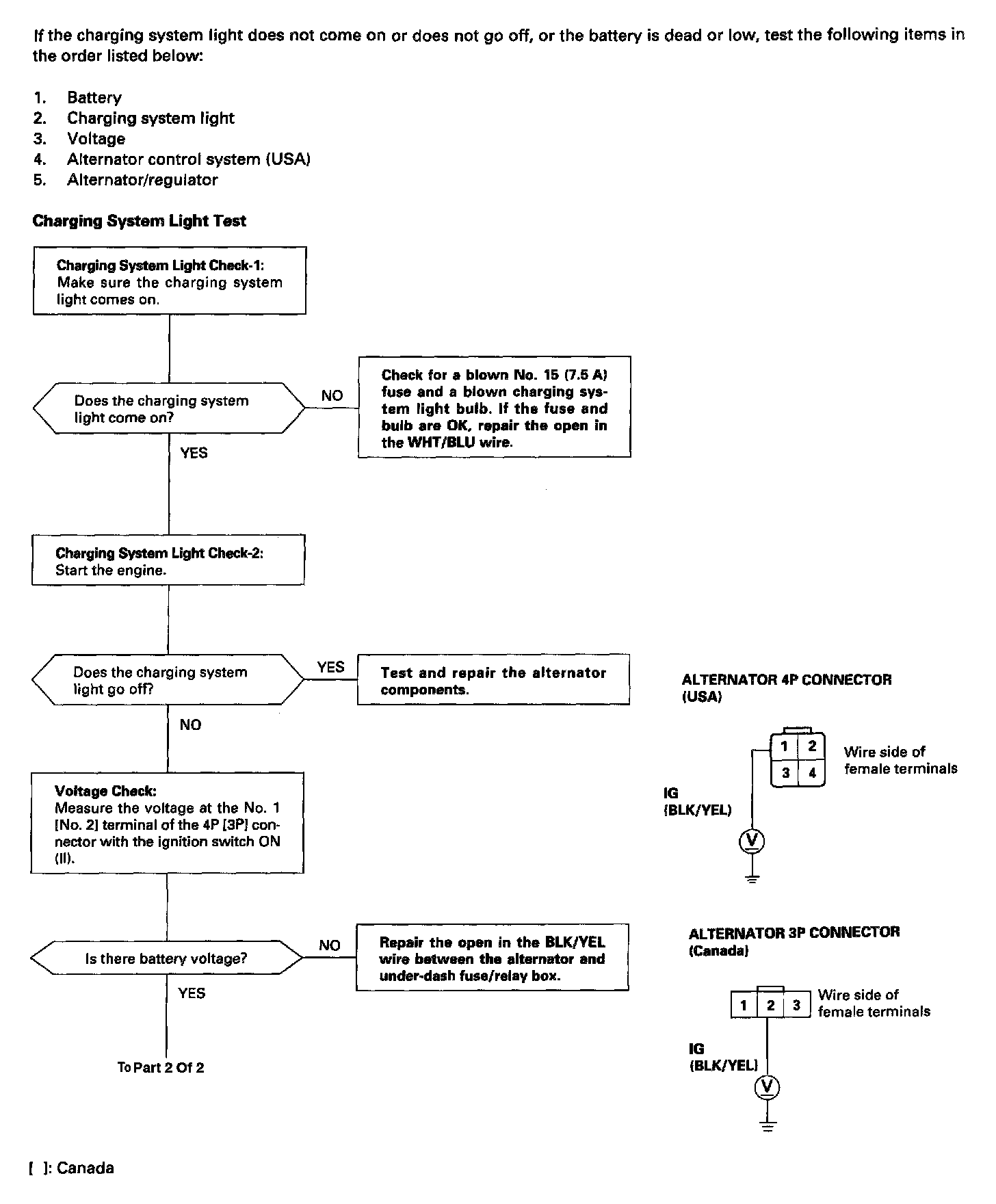

Charging System Light Test (Part 1 Of 2):

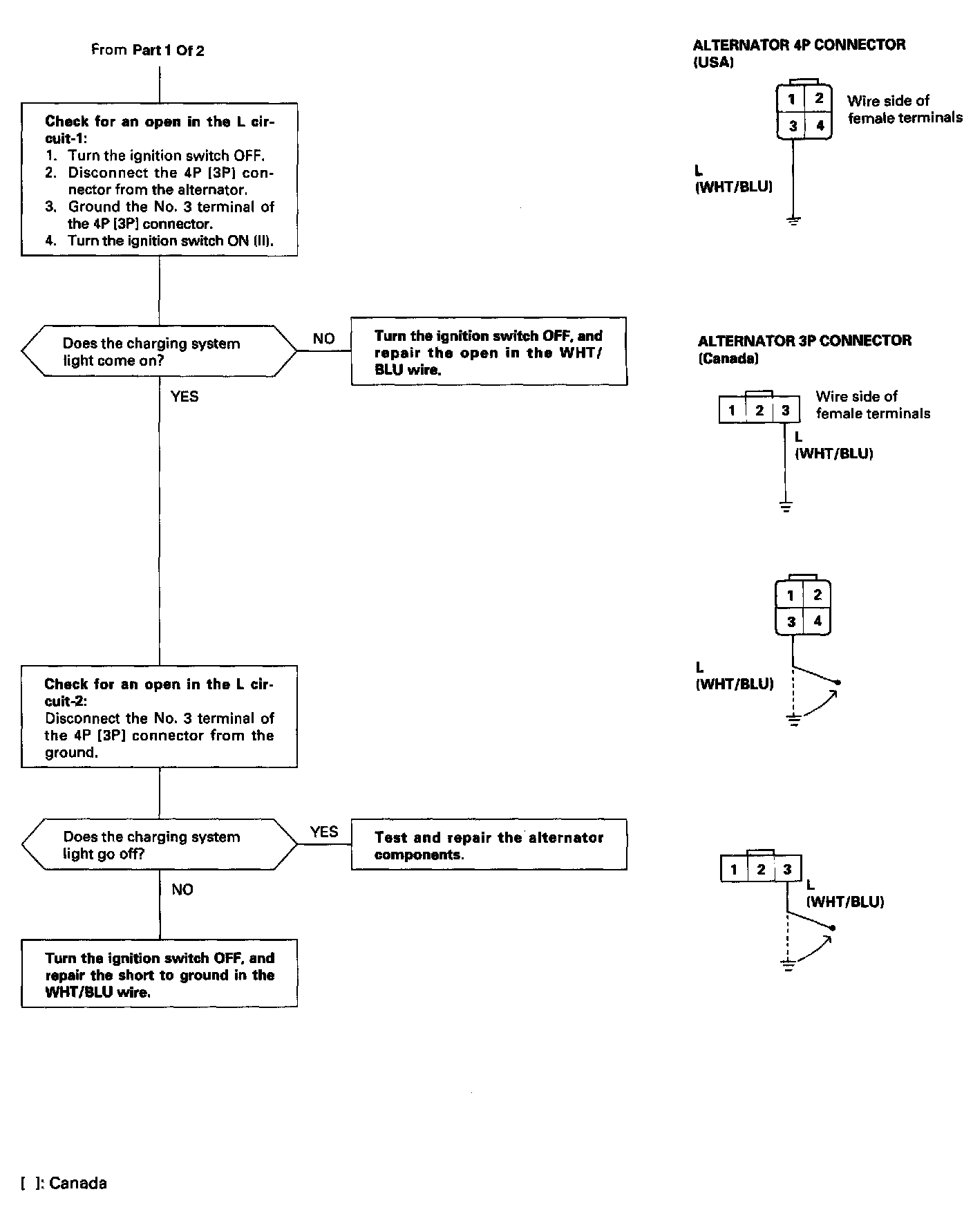

Charging System Light Test (Part 2 Of 2):

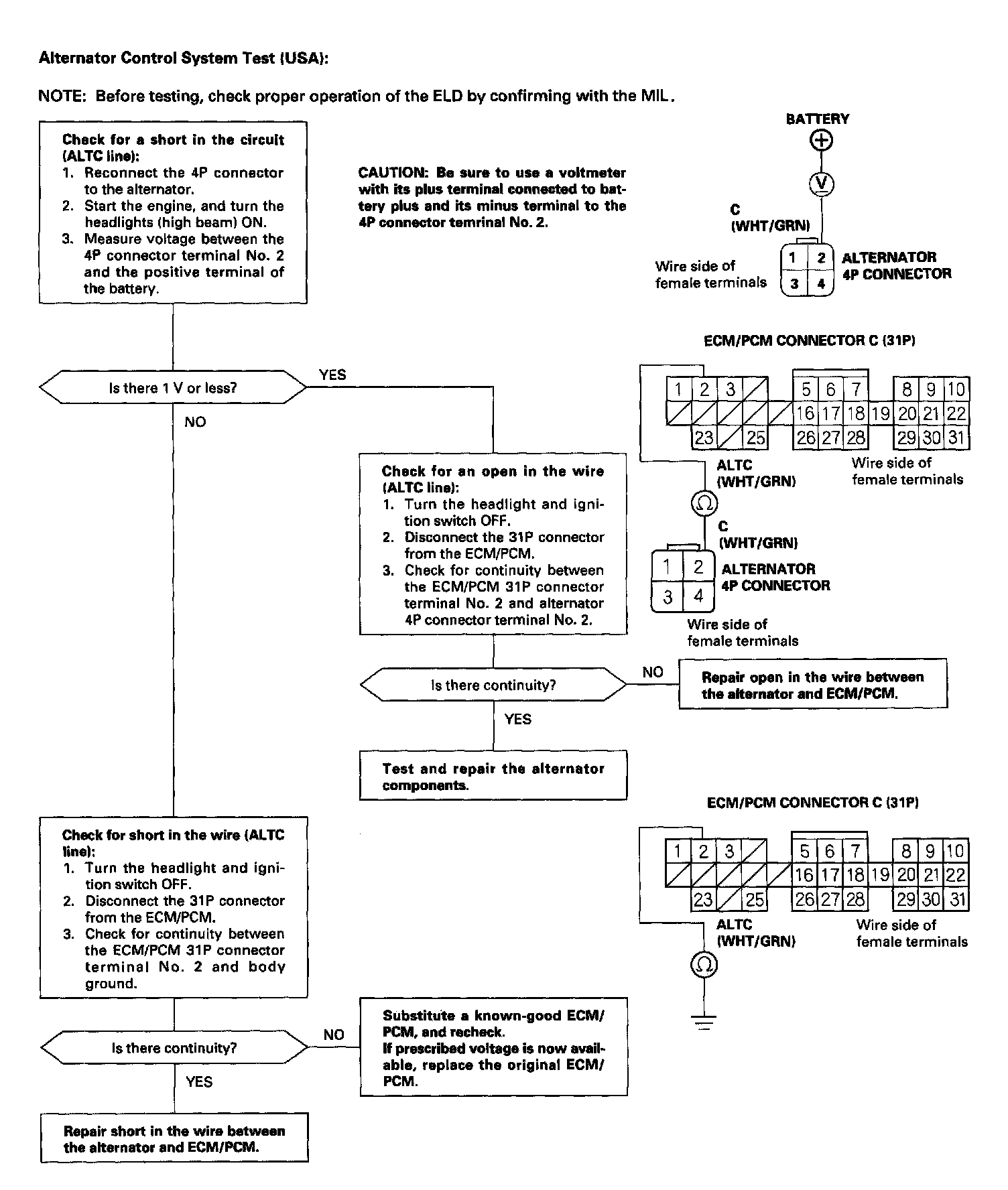

Alternator Control System Test (USA): '96-98 All and '99-00 SOHC VTEC-E (Manual Transmission):

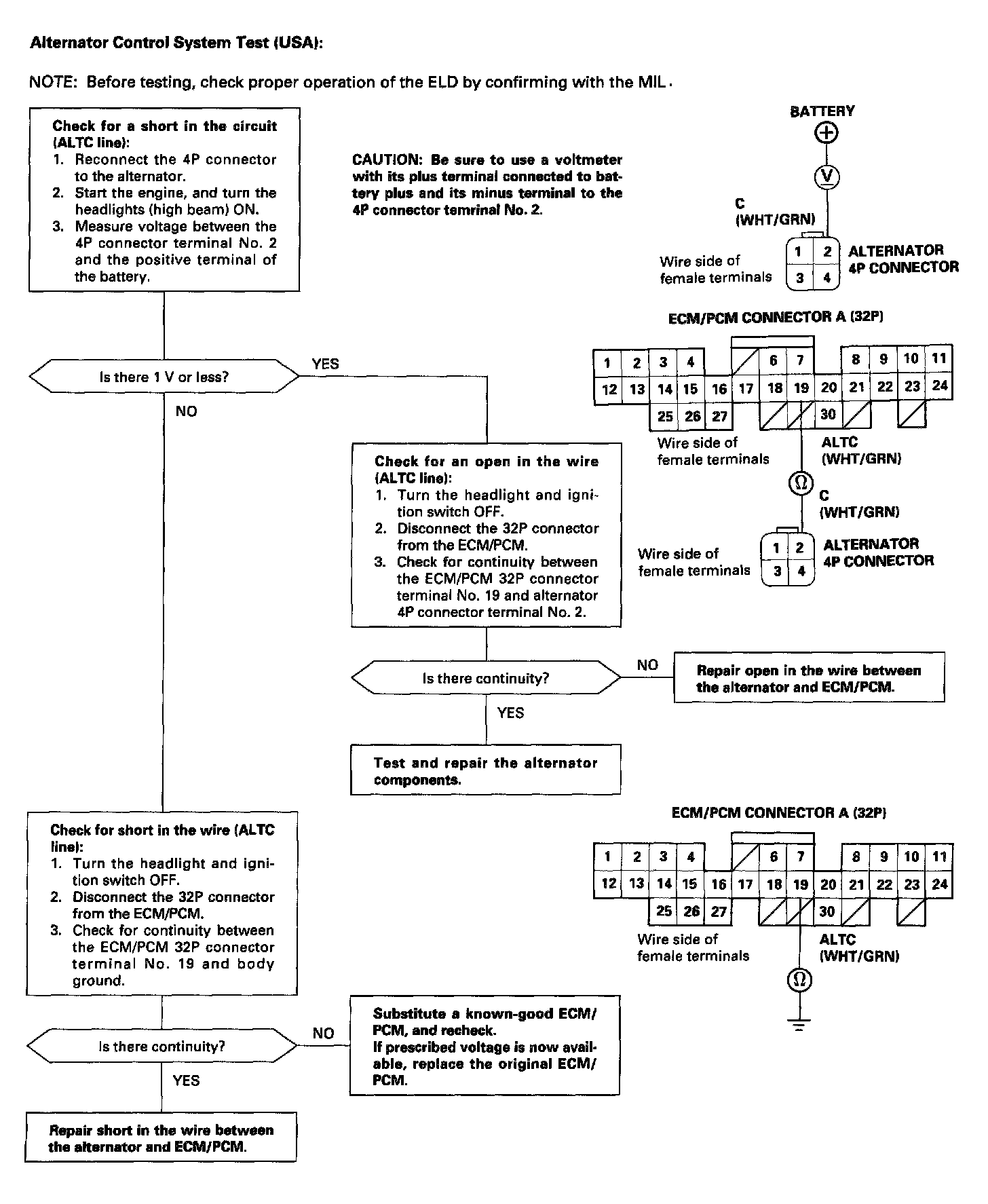

Alternator Control System Test (USA): '99-00 All Except SOHC VTEC-E (Manual Transmission):

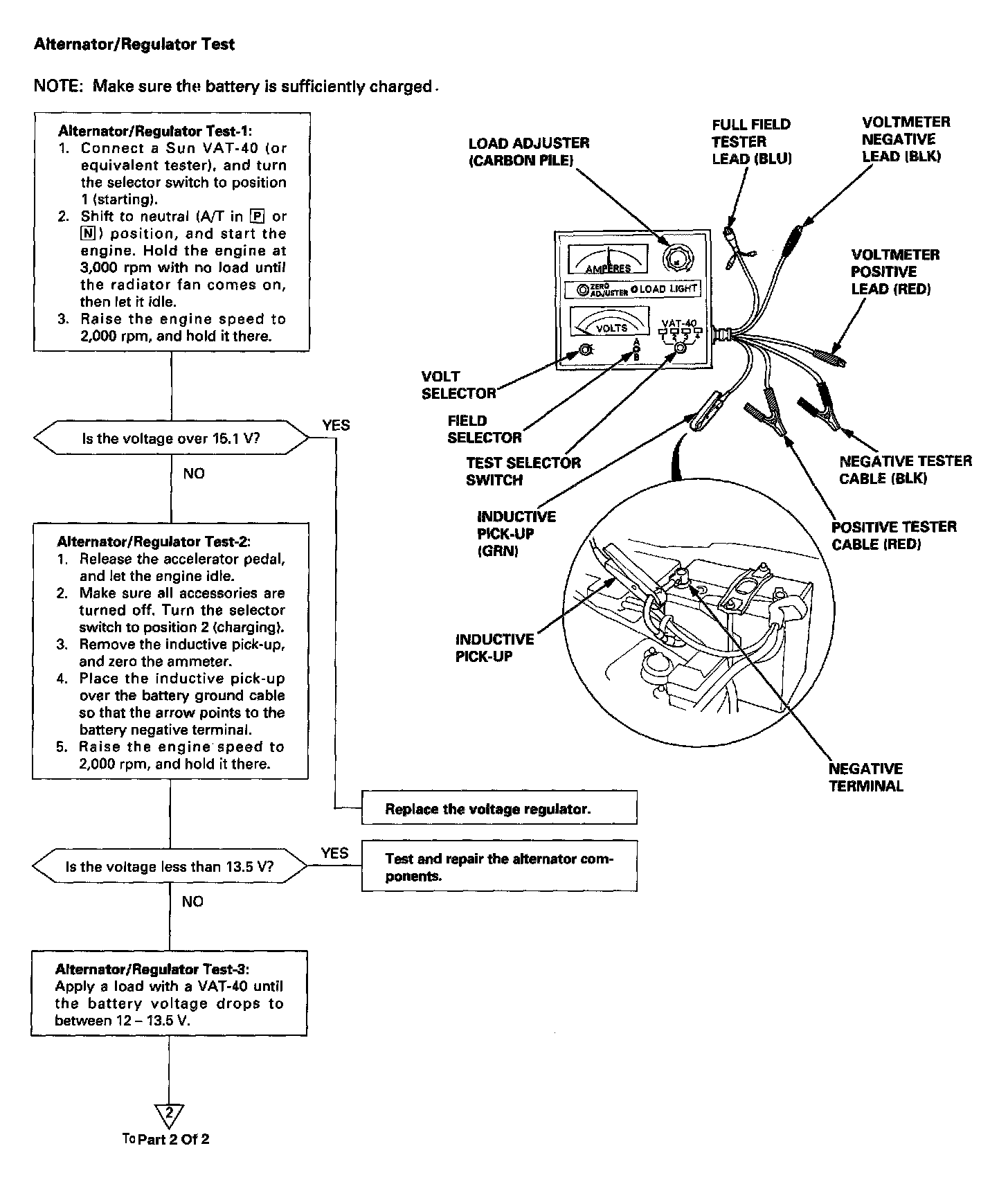

Alternator/Regulator Test (Part 1 Of 2):

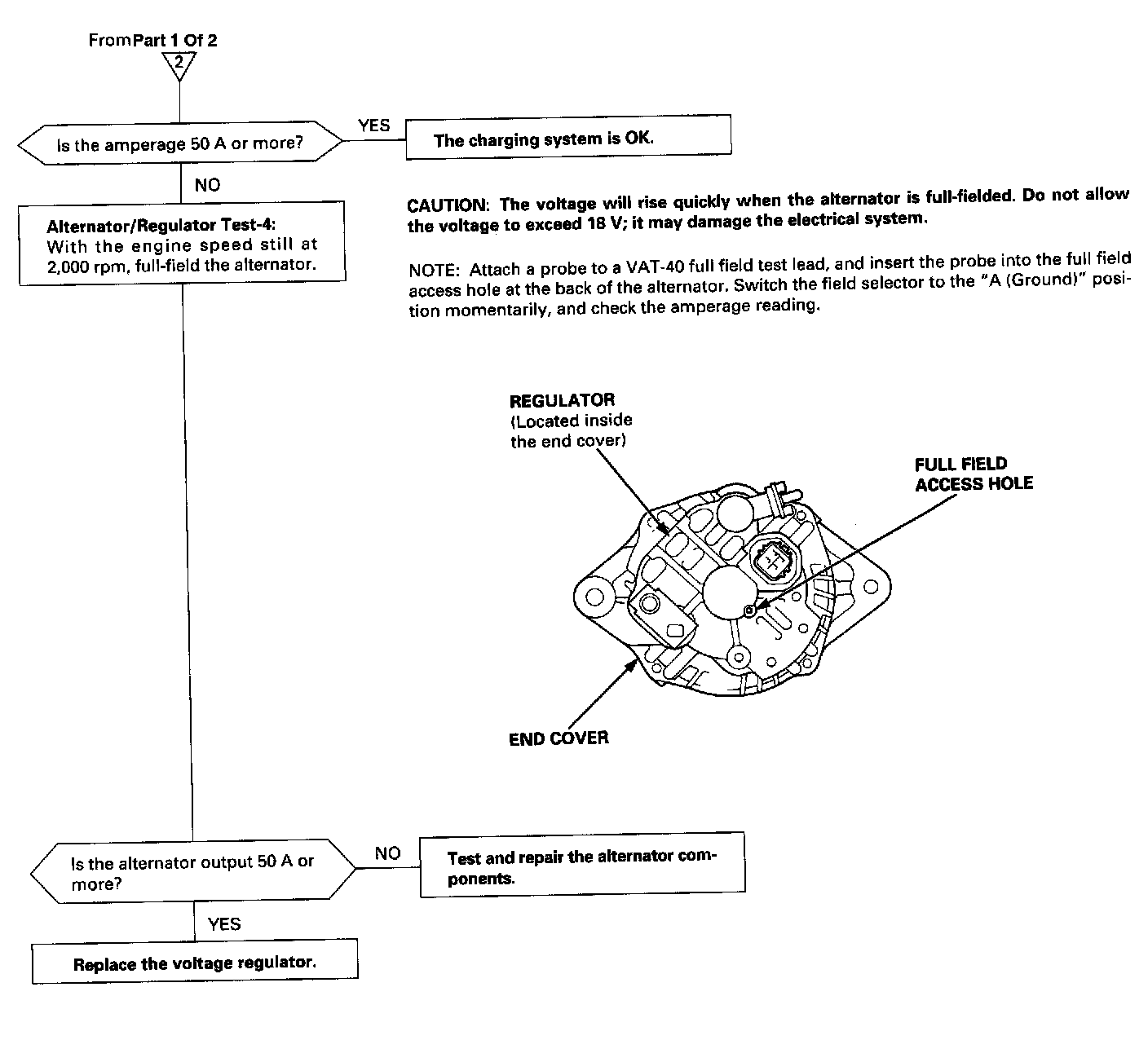

Alternator/Regulator Test (Part 2 Of 2):
