Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (VTEC-E) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> System Specifications

System Specifications

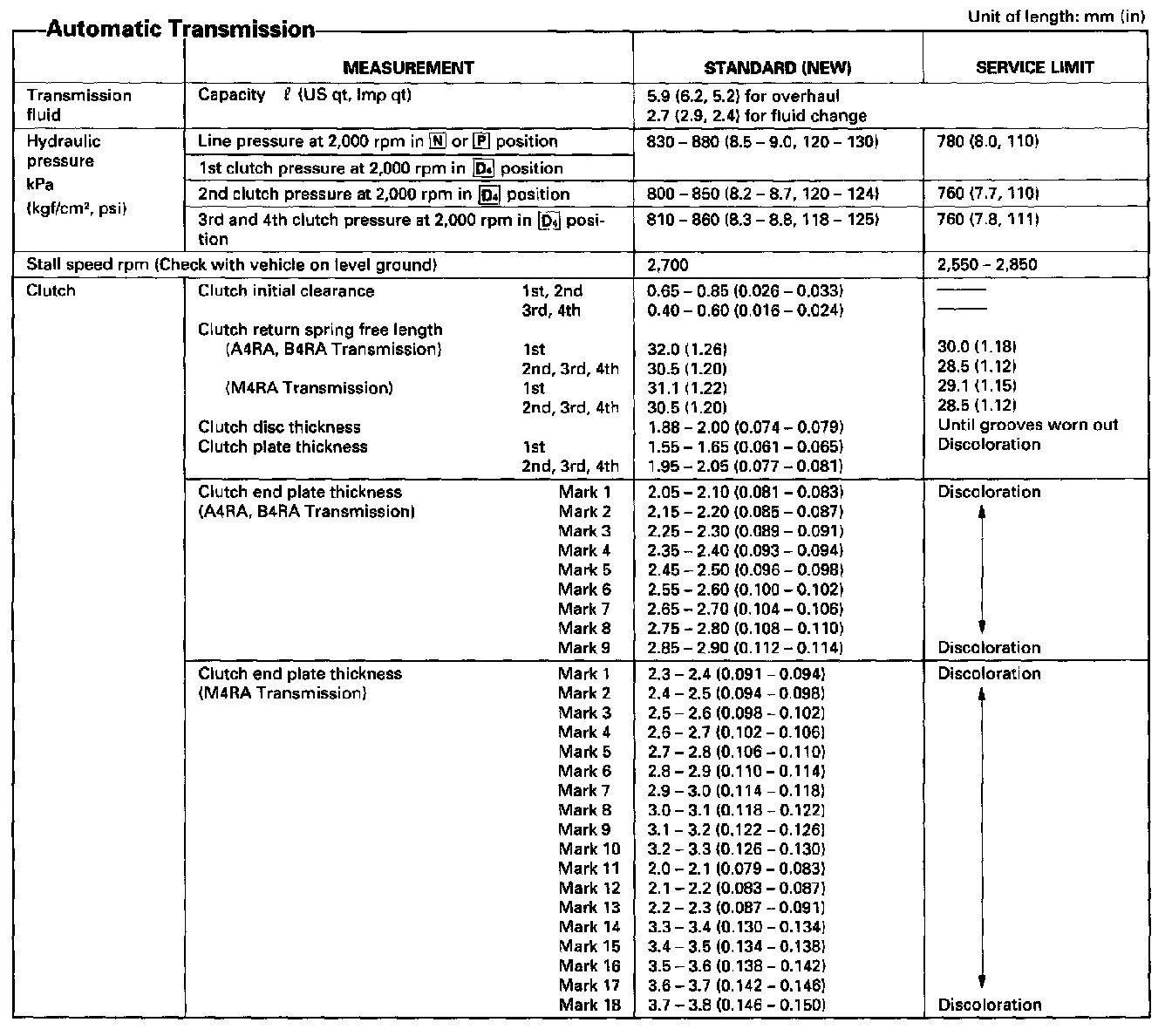

Automatic Transmission (Part 1 Of 4):

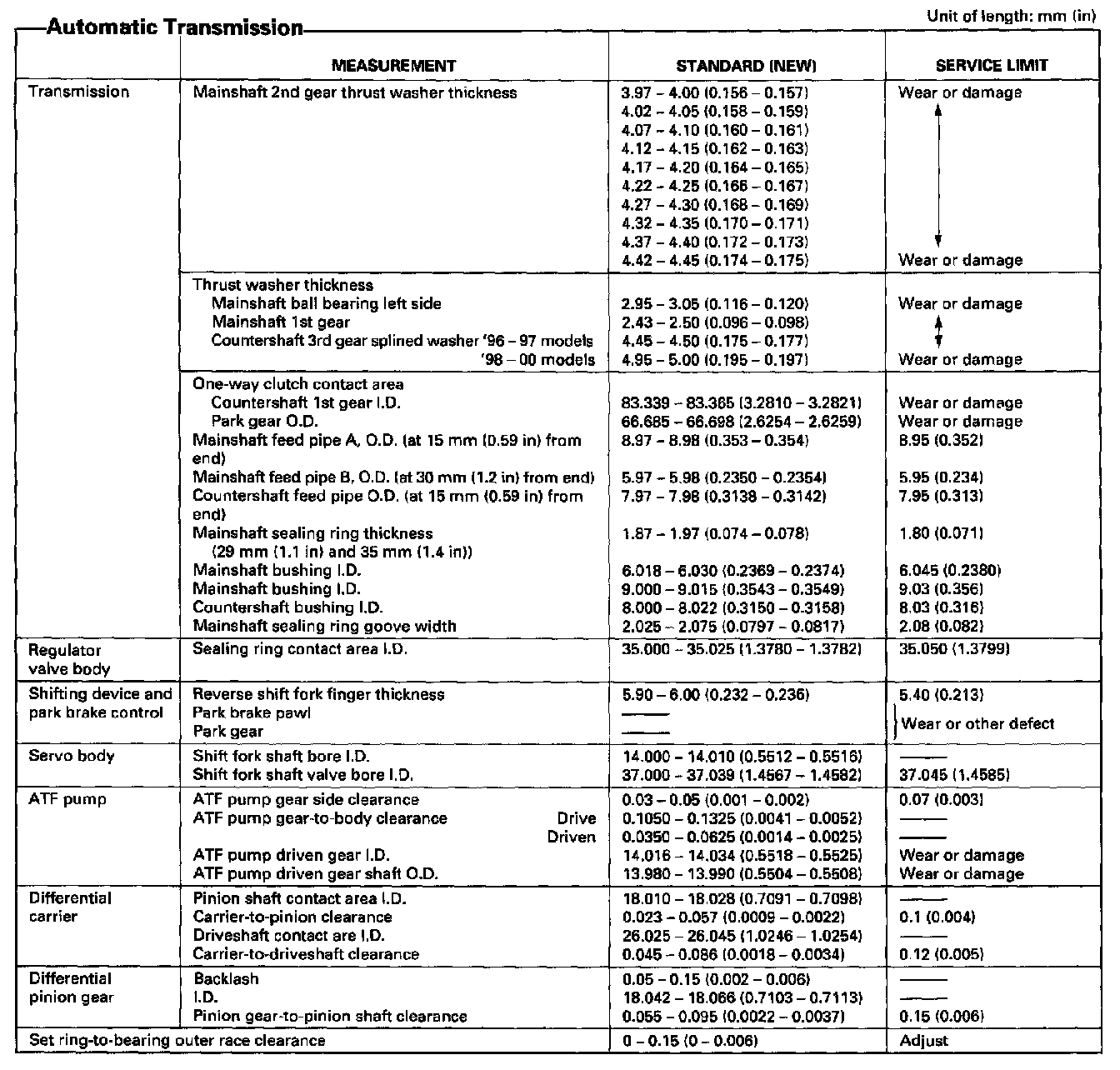

Automatic Transmission (Part 2 Of 4):

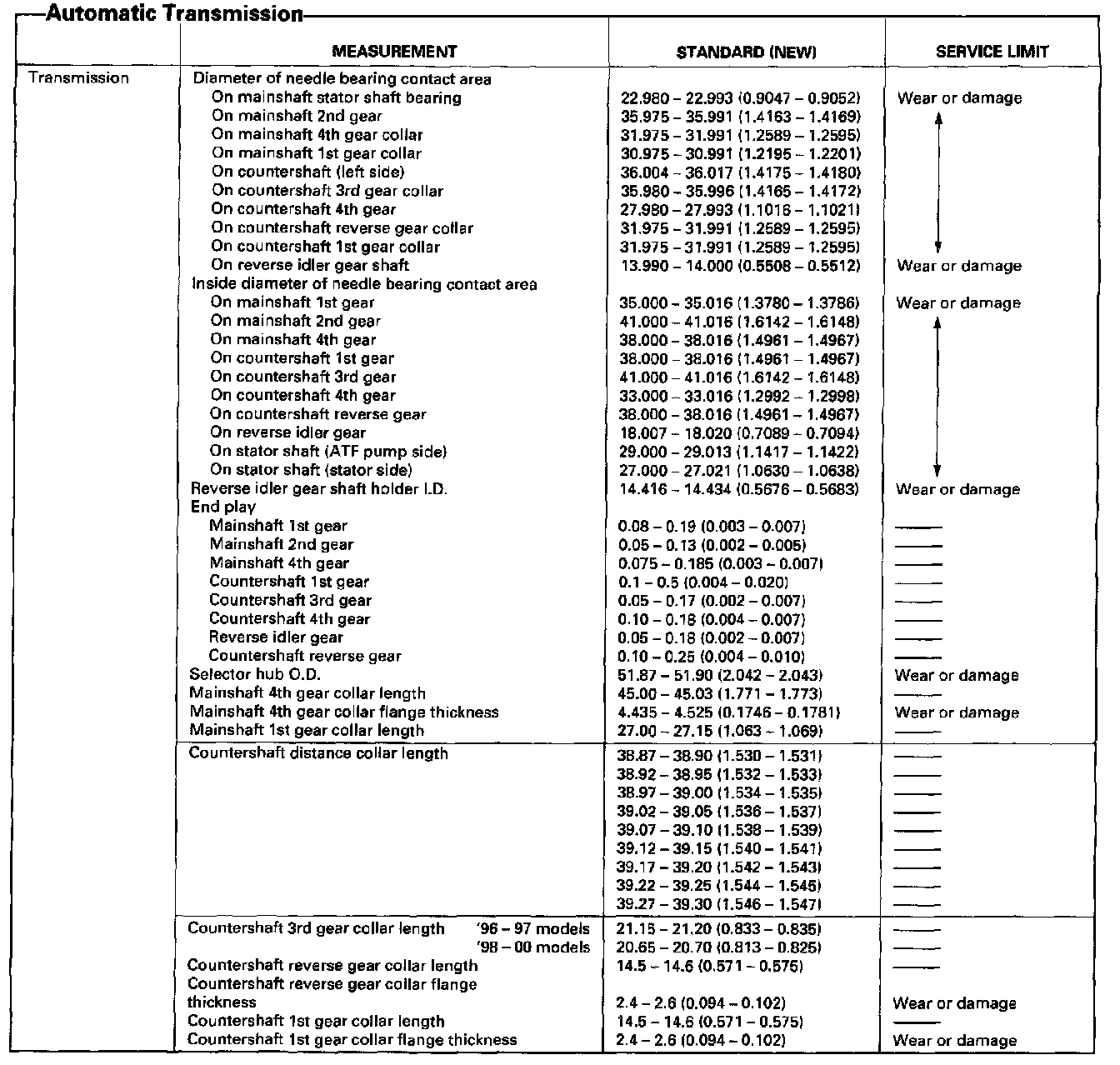

Automatic Transmission (Part 3 Of 4):

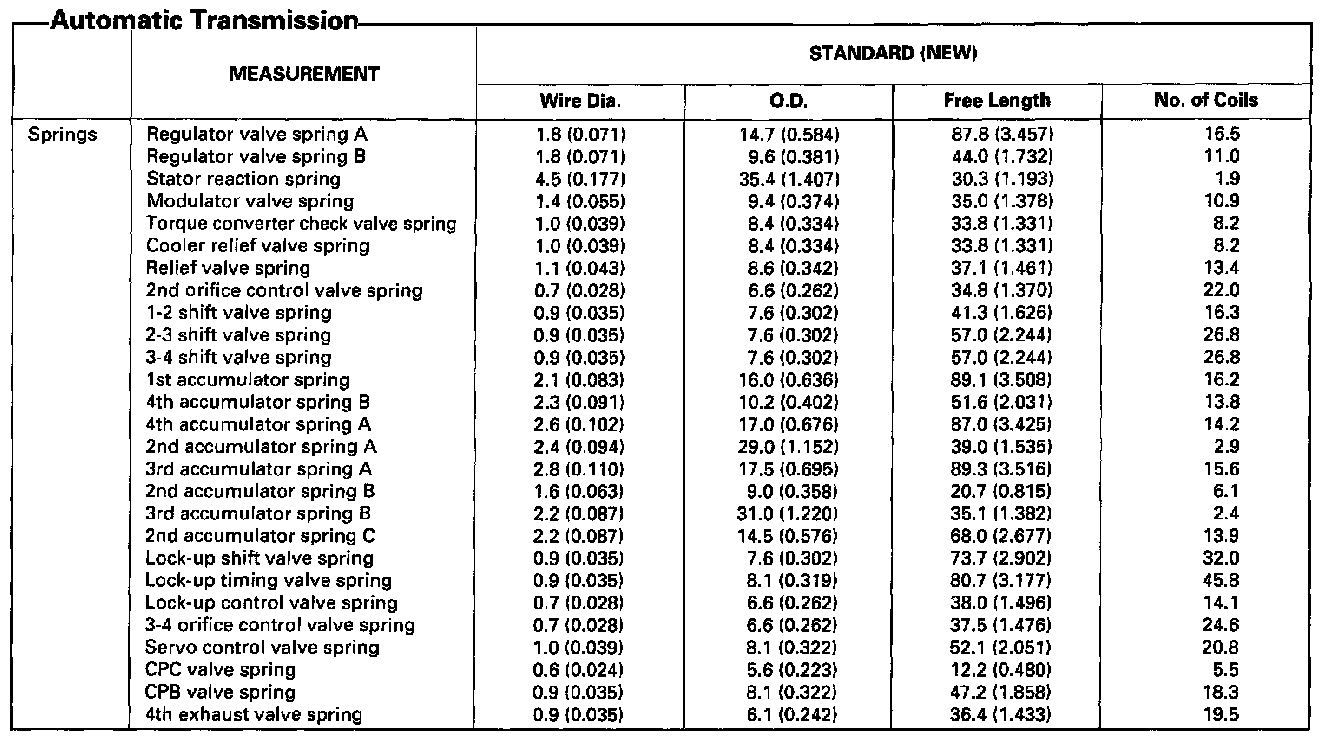

Automatic Transmission (Part 4 Of 4):
