Torque Specifications

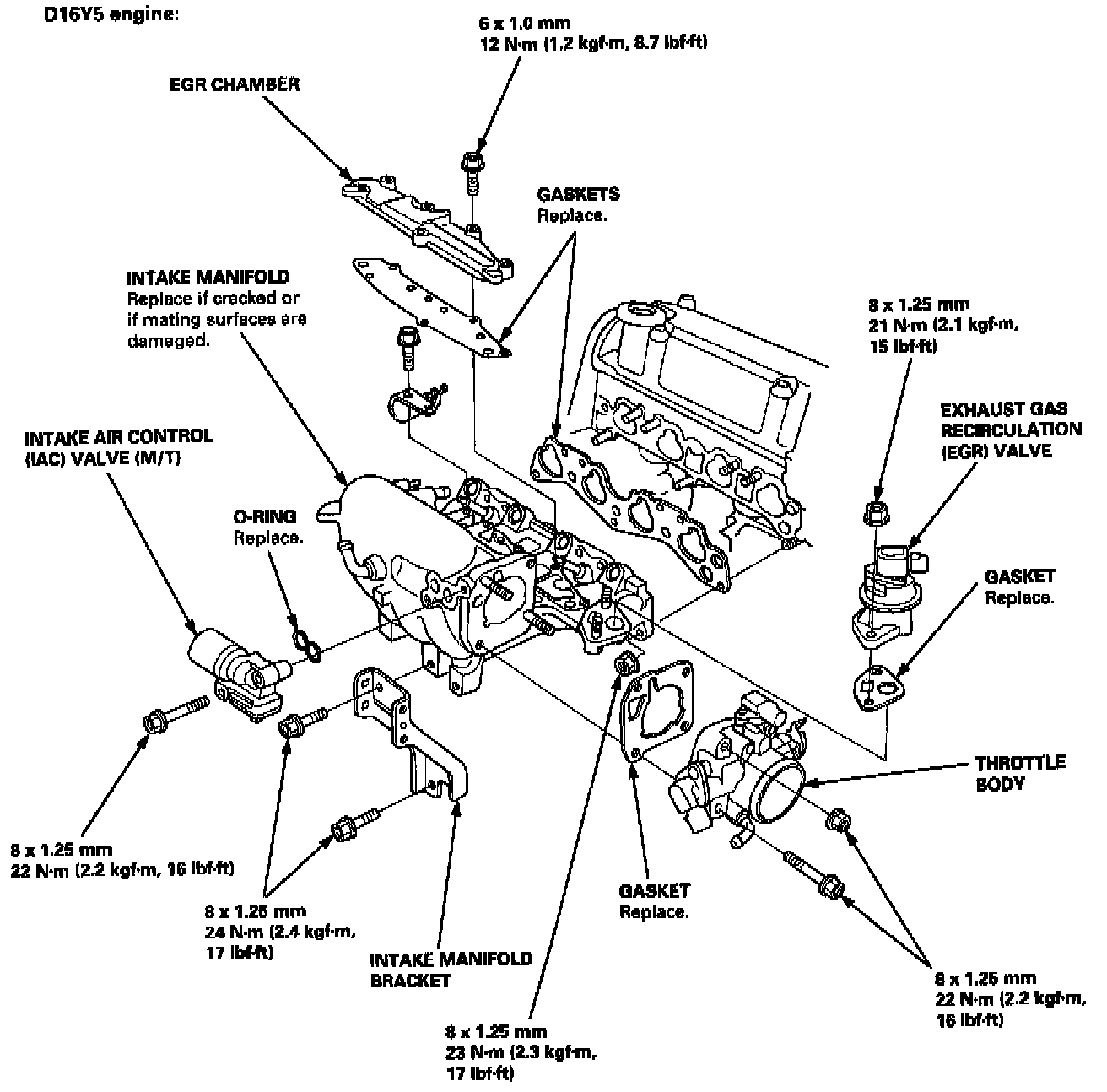

Intake:

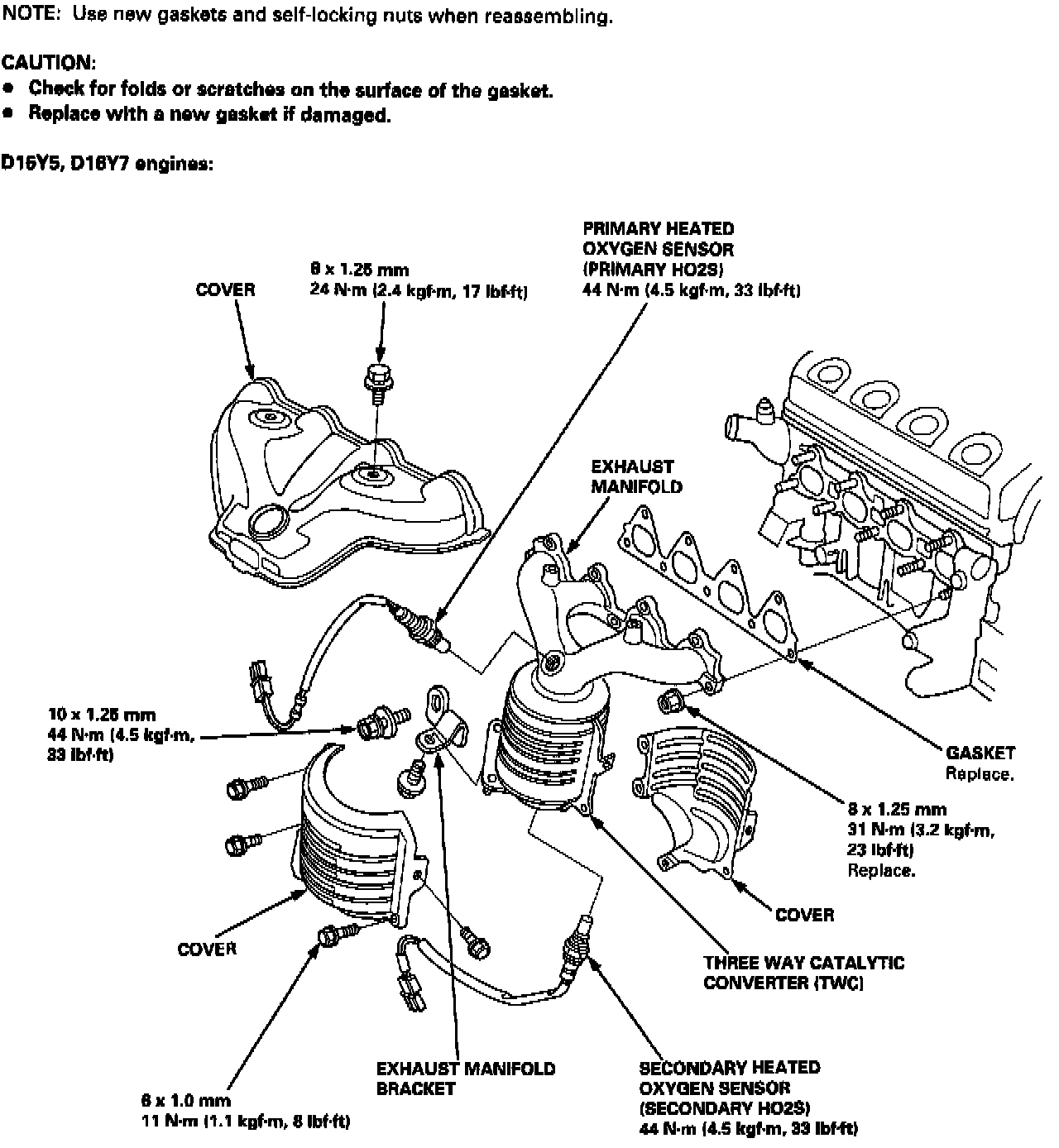

Exhaust Manifold:

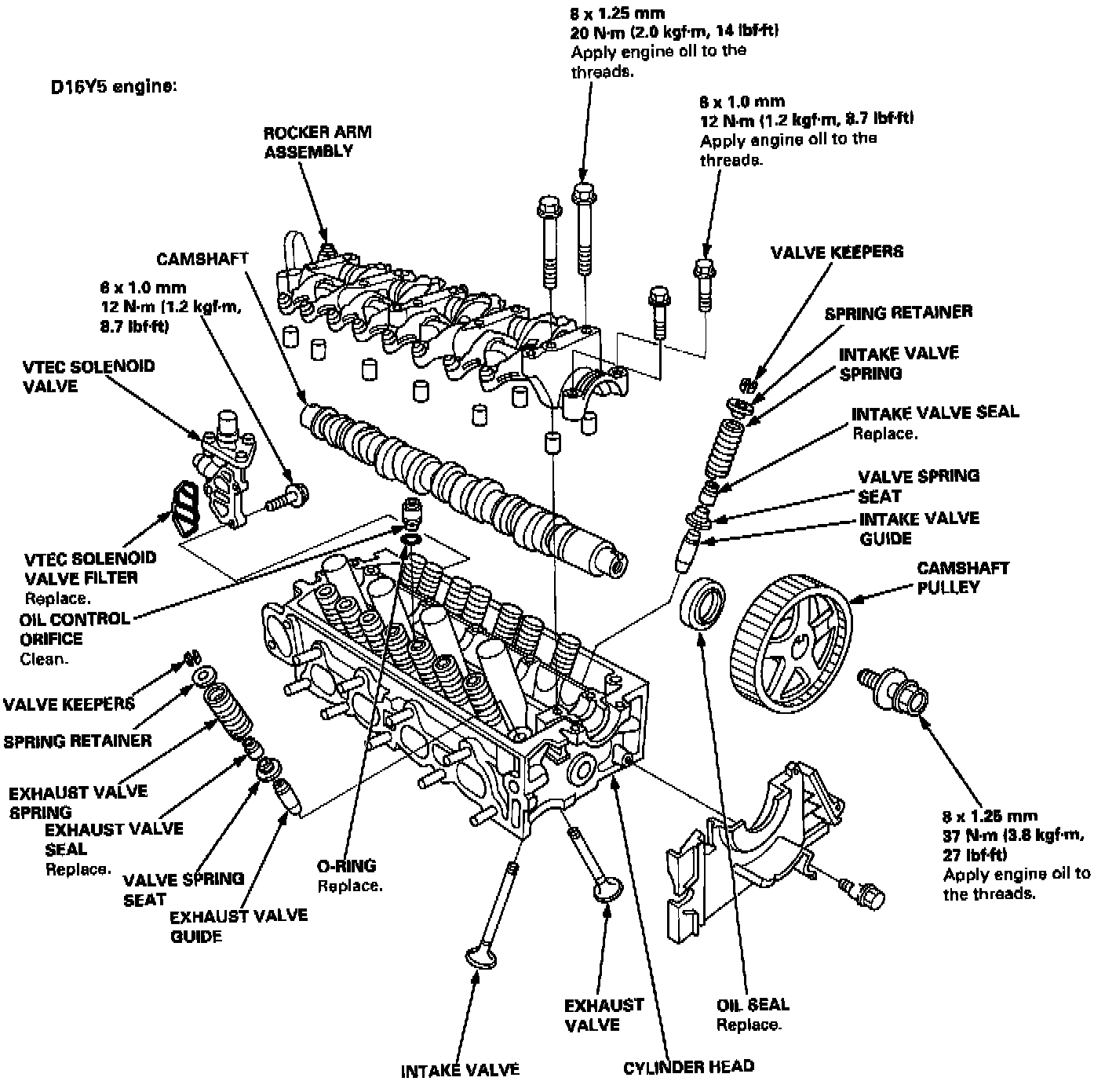

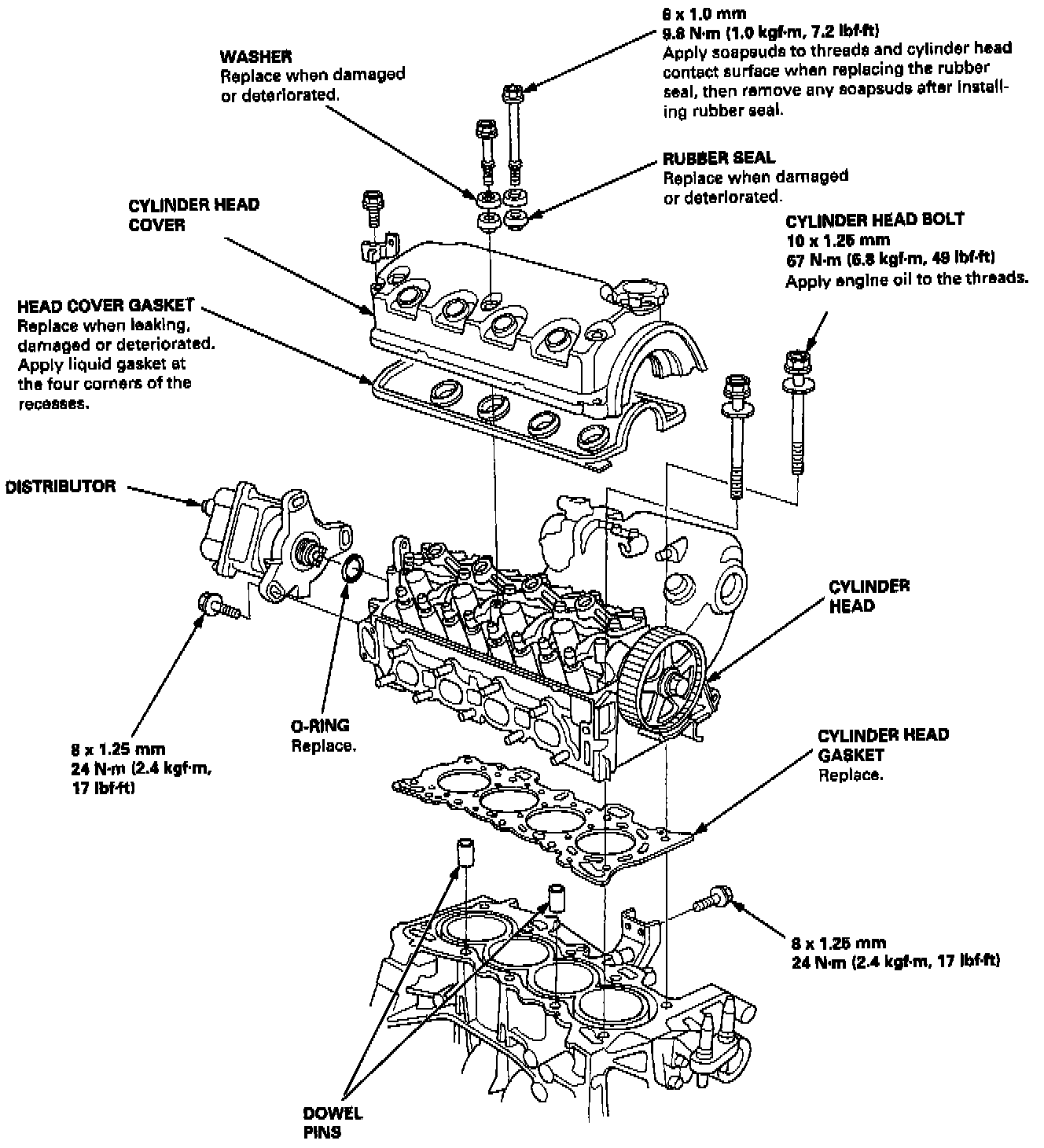

Upper Engine:

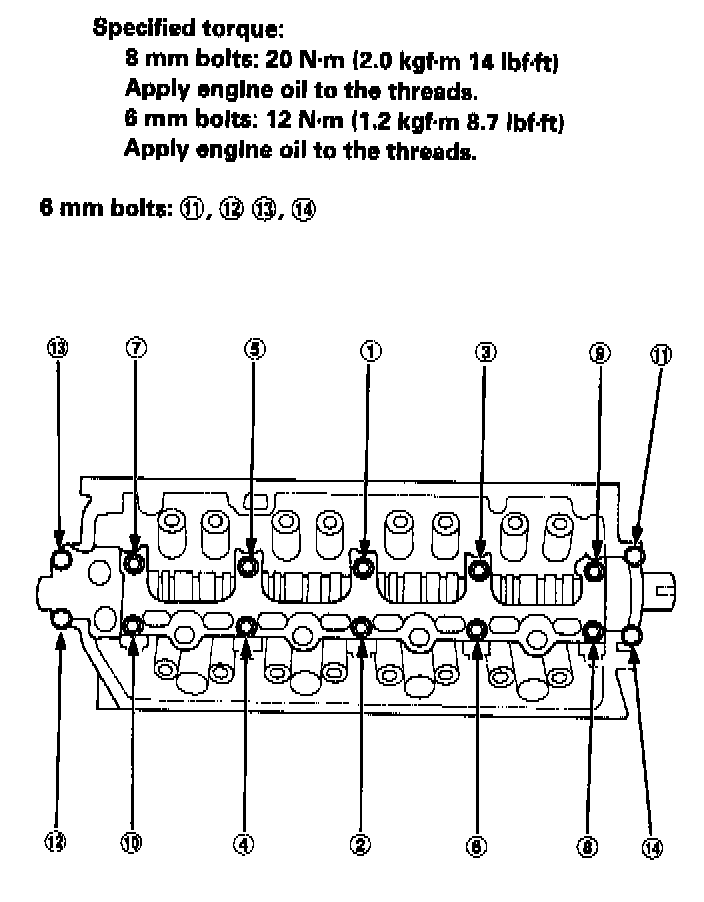

Cam Holder Torque Sequence:

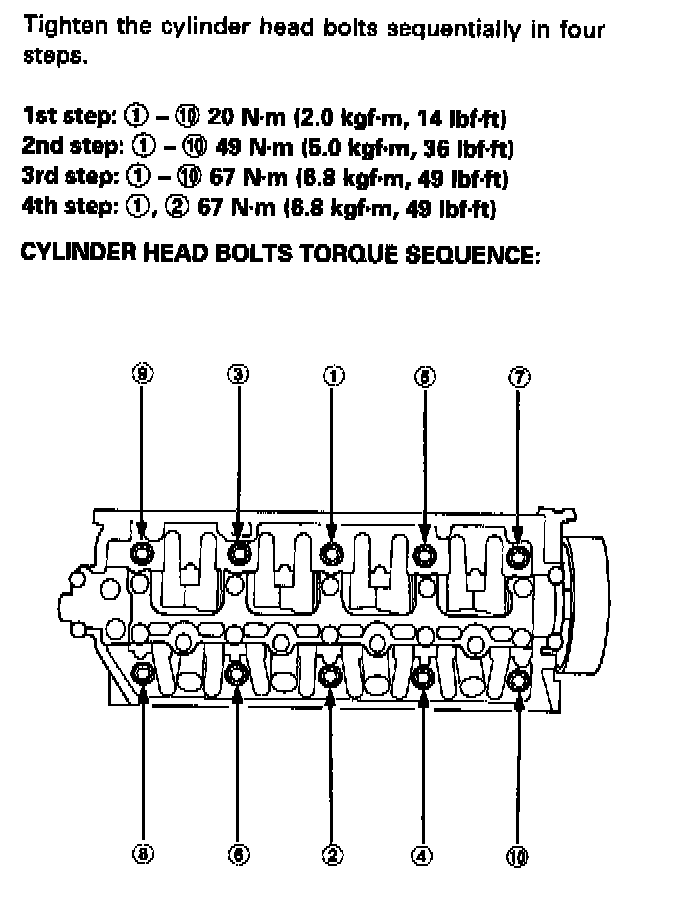

Cylinder Head Torque/Sequence:

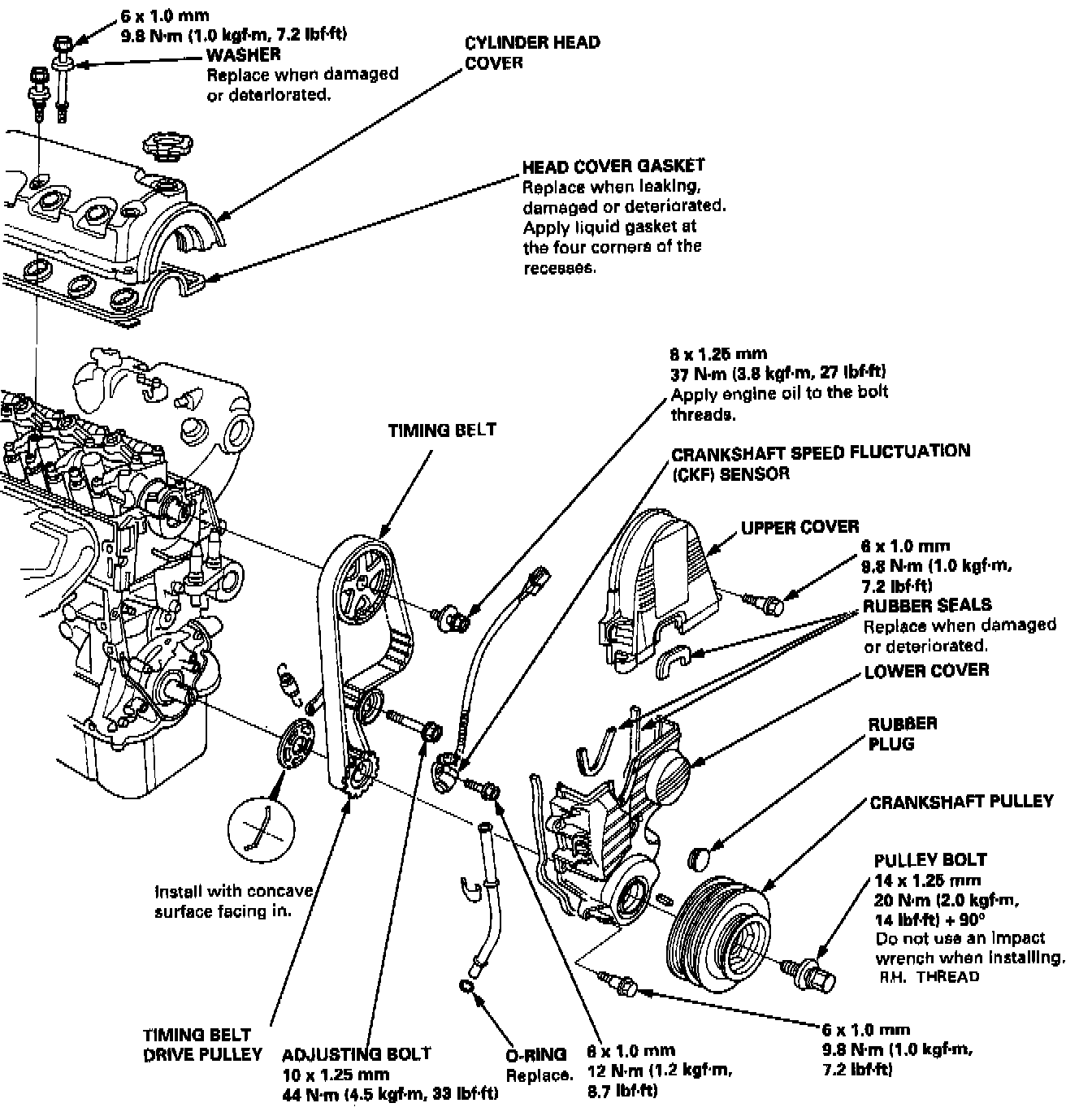

Timing Components:

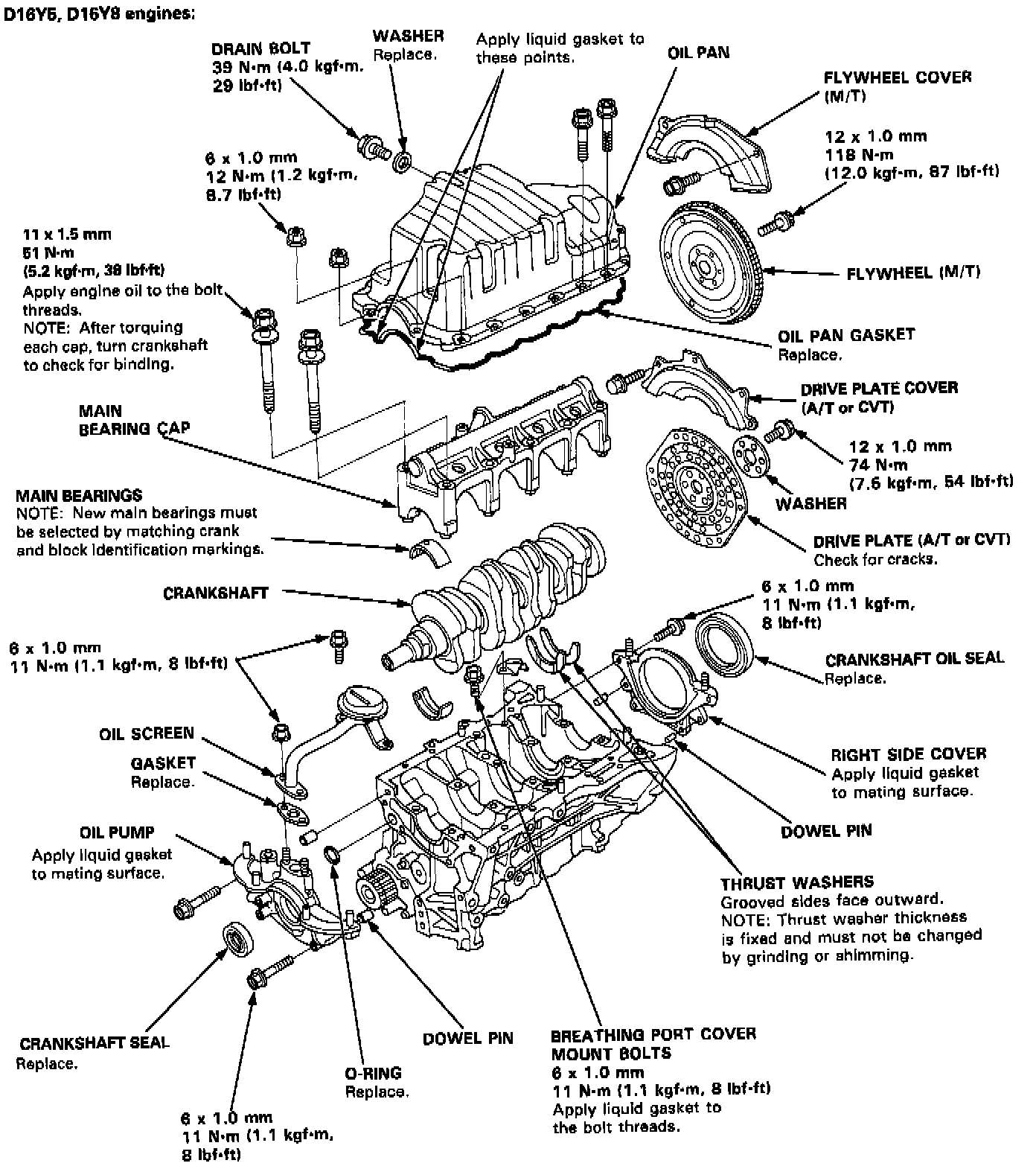

Lower Engine:

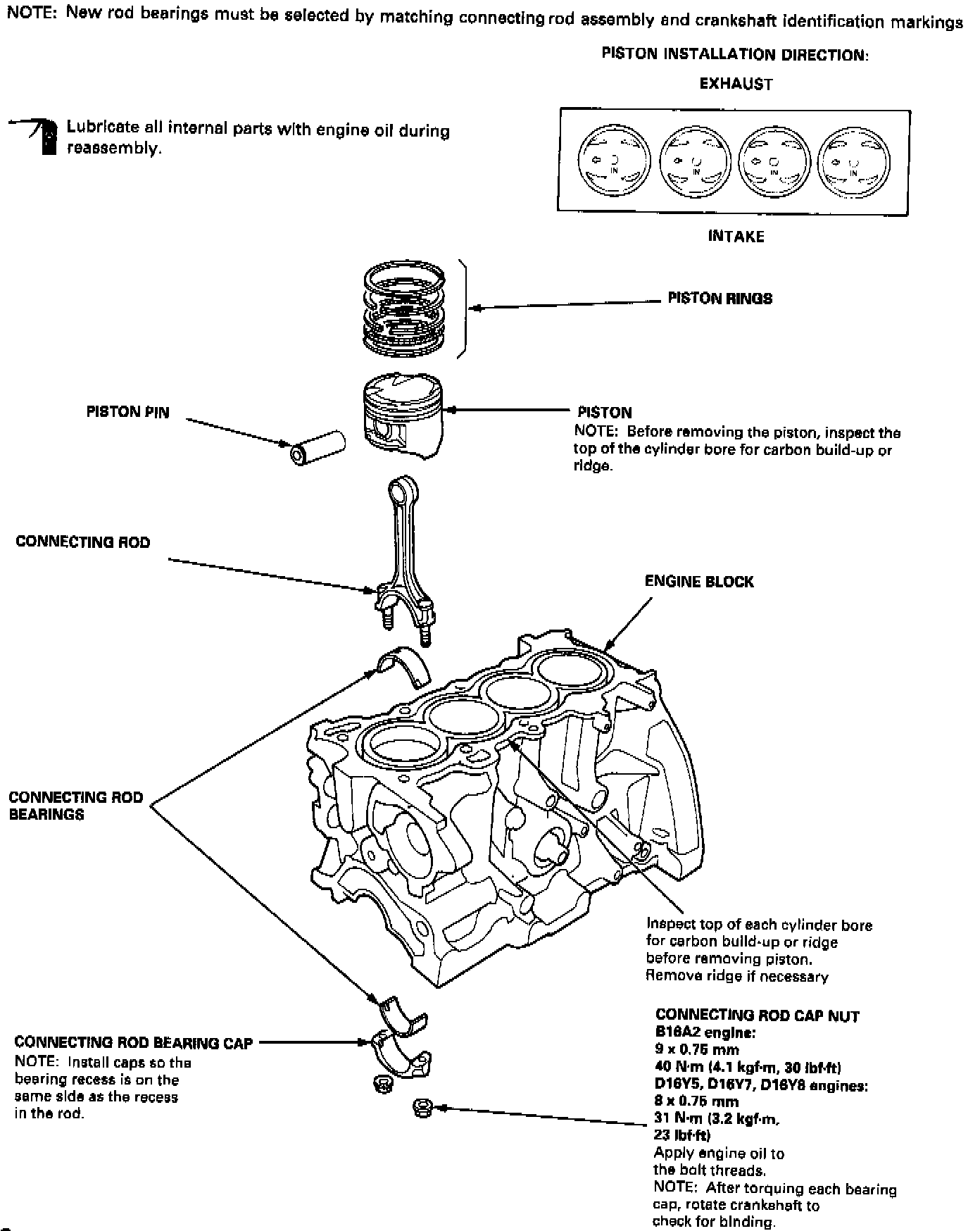

Piston:

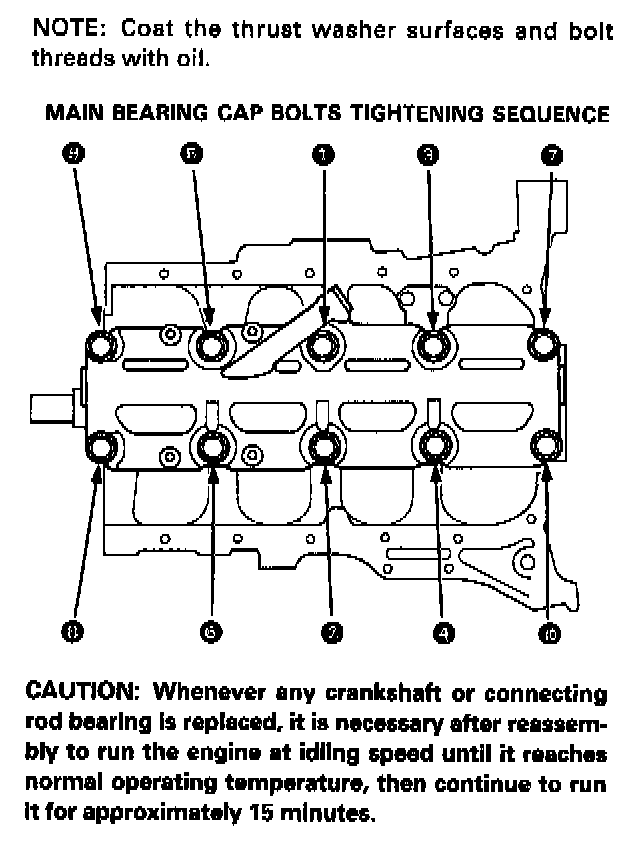

Main Bolt Torque Sequence:

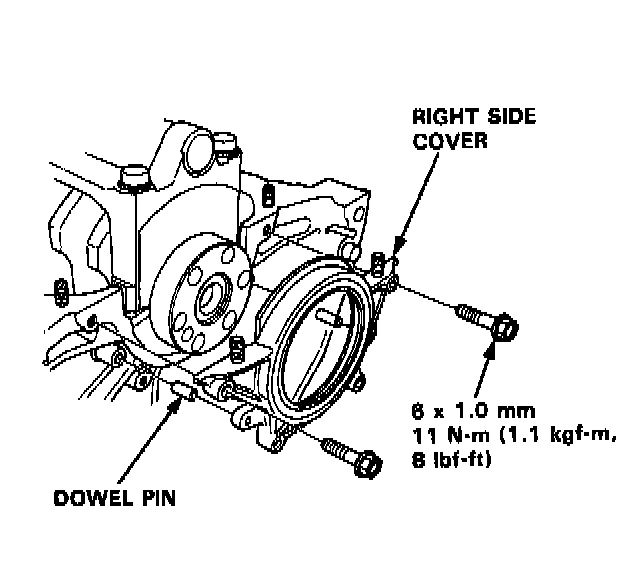

Rear Main:

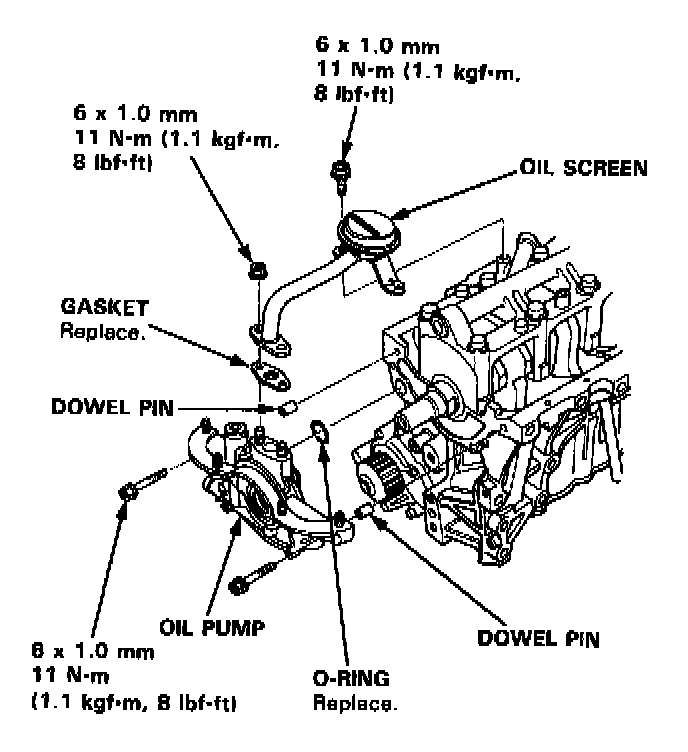

Oil Pump:

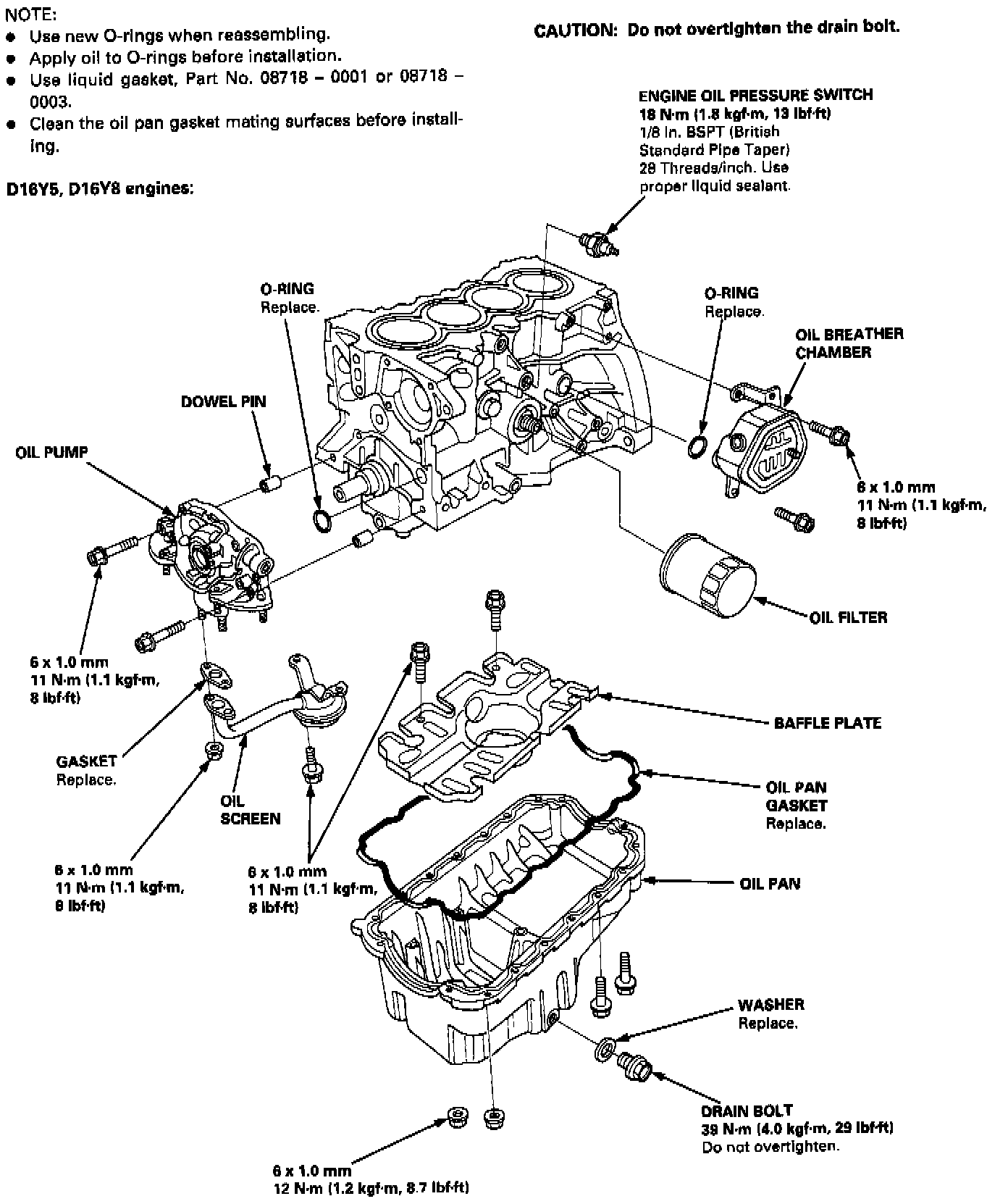

Engine Lubrication:

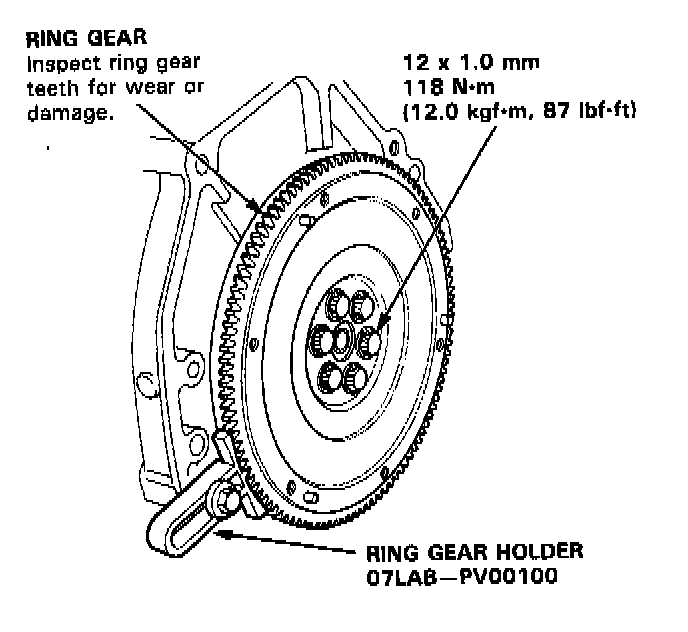

Flywheel (M/T) Torque:

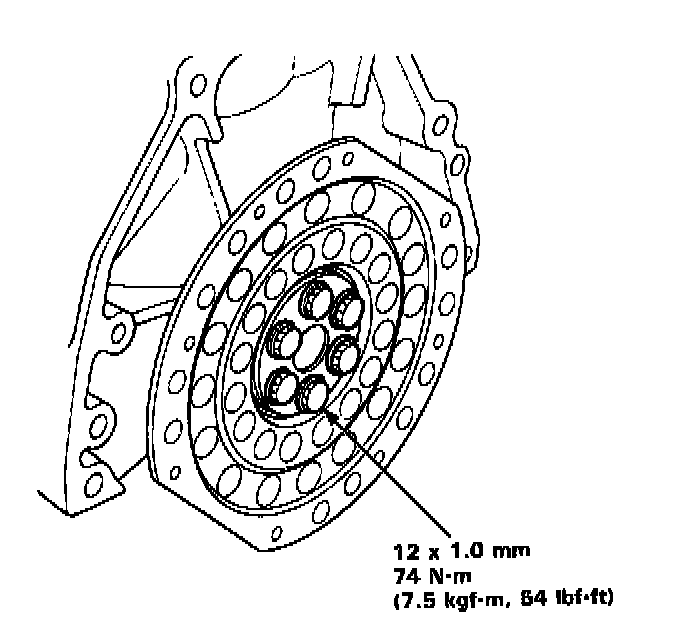

Driveplate (A/T) Torque:
