Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (VTEC-E) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Service Specifications

Service Specifications

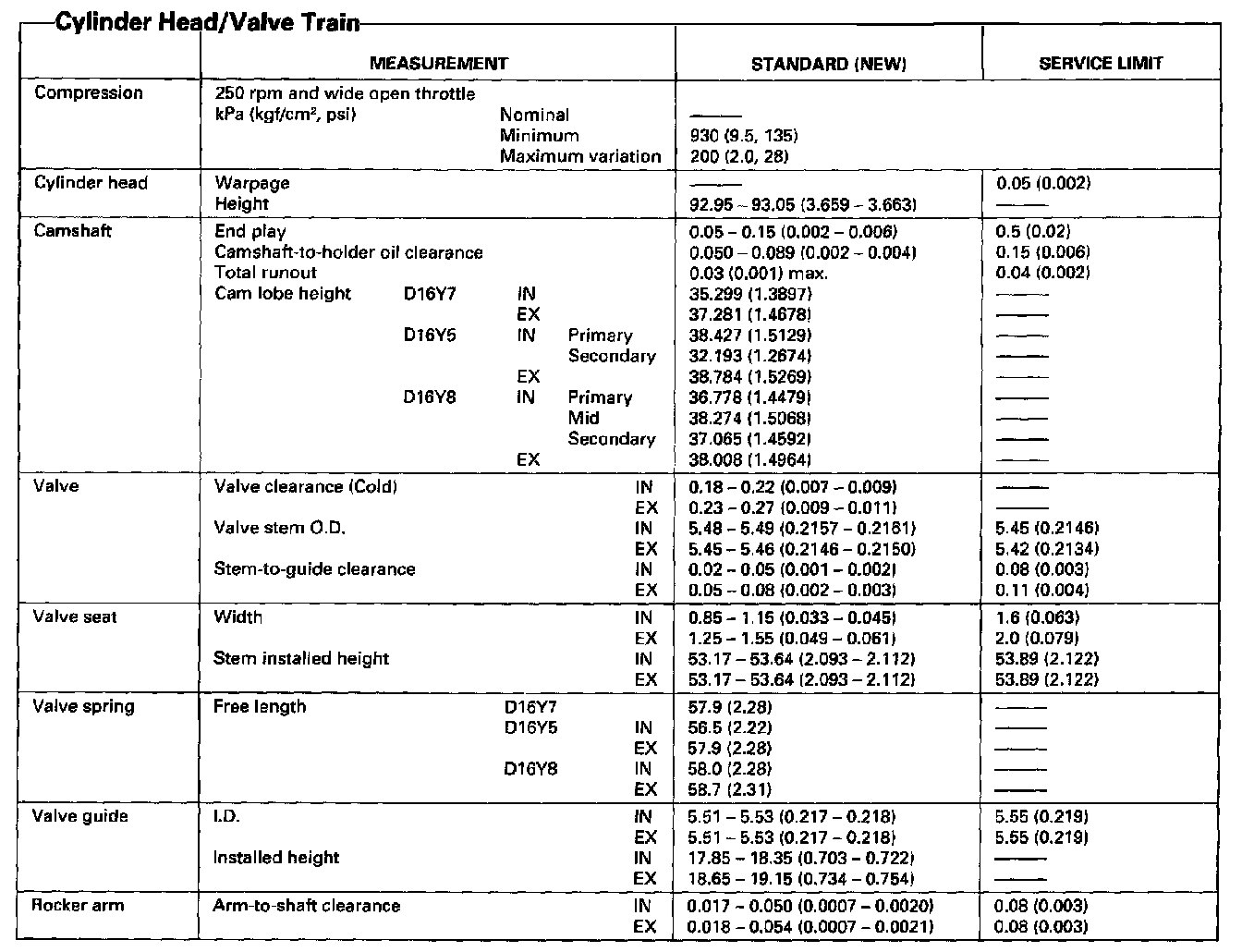

Cylinder Head/Valve Train (Part 1 Of 2):

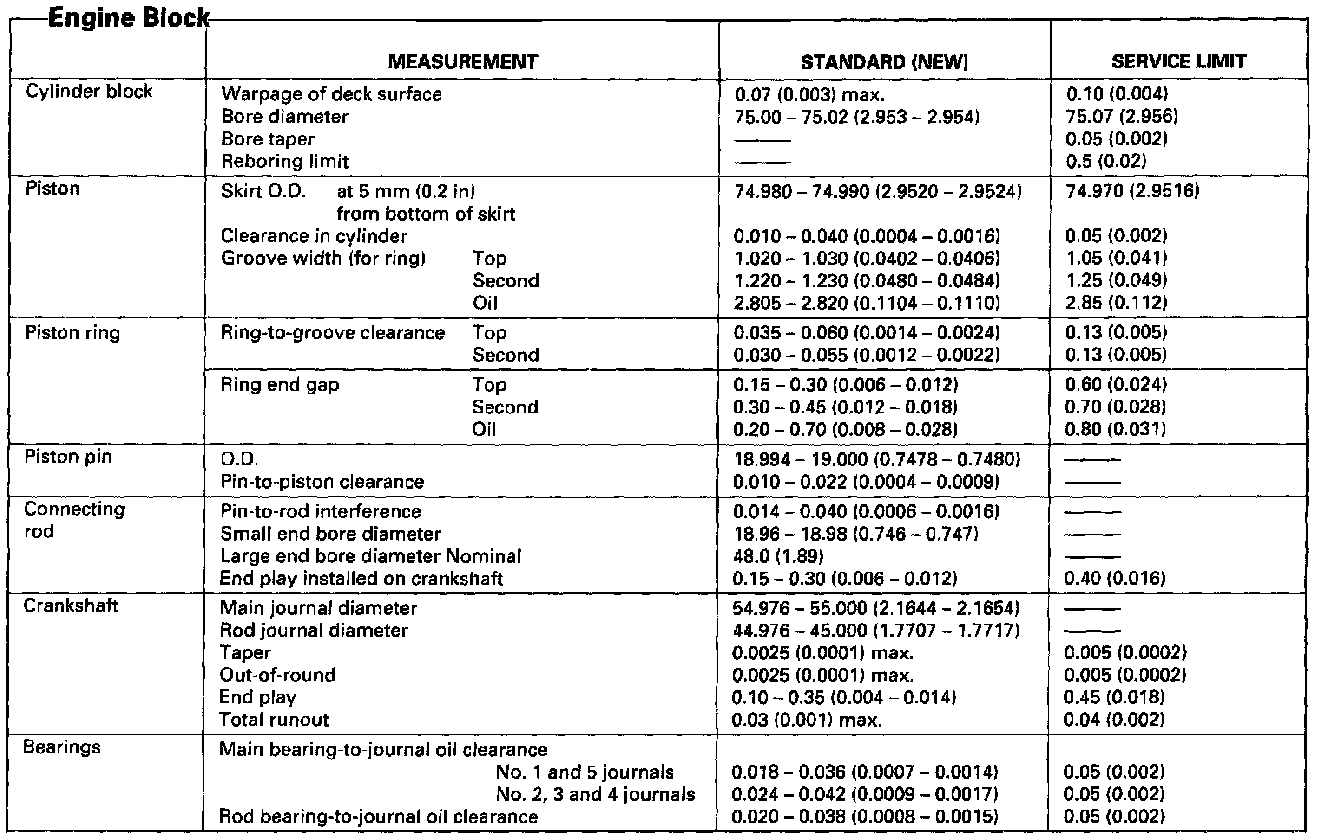

Engine Block (Part 1 Of 2):

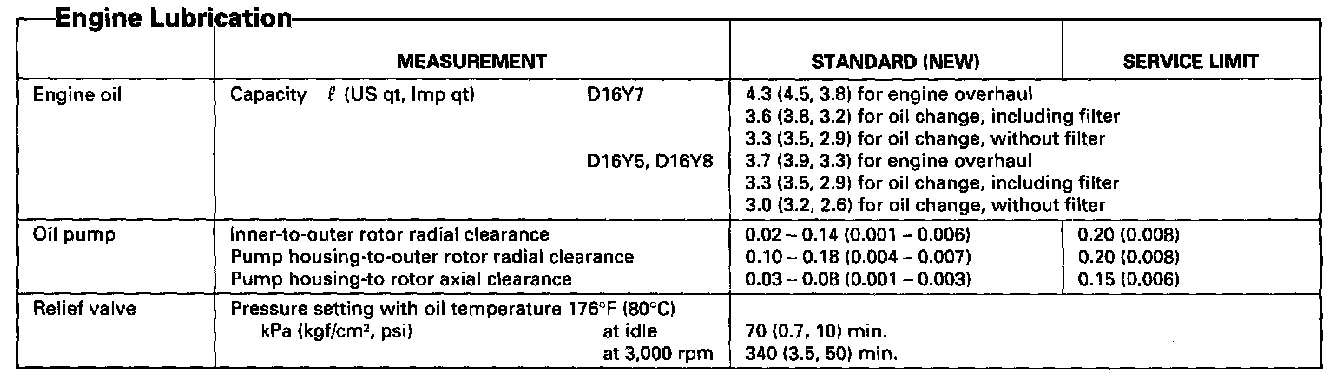

Engine Lubrication (Part 1 Of 2):
