Hazard Warning Switch: Testing and Inspection

CAUTION: Be careful not to damage the hazard warning switch or the center outlet panel when prying the switch out.

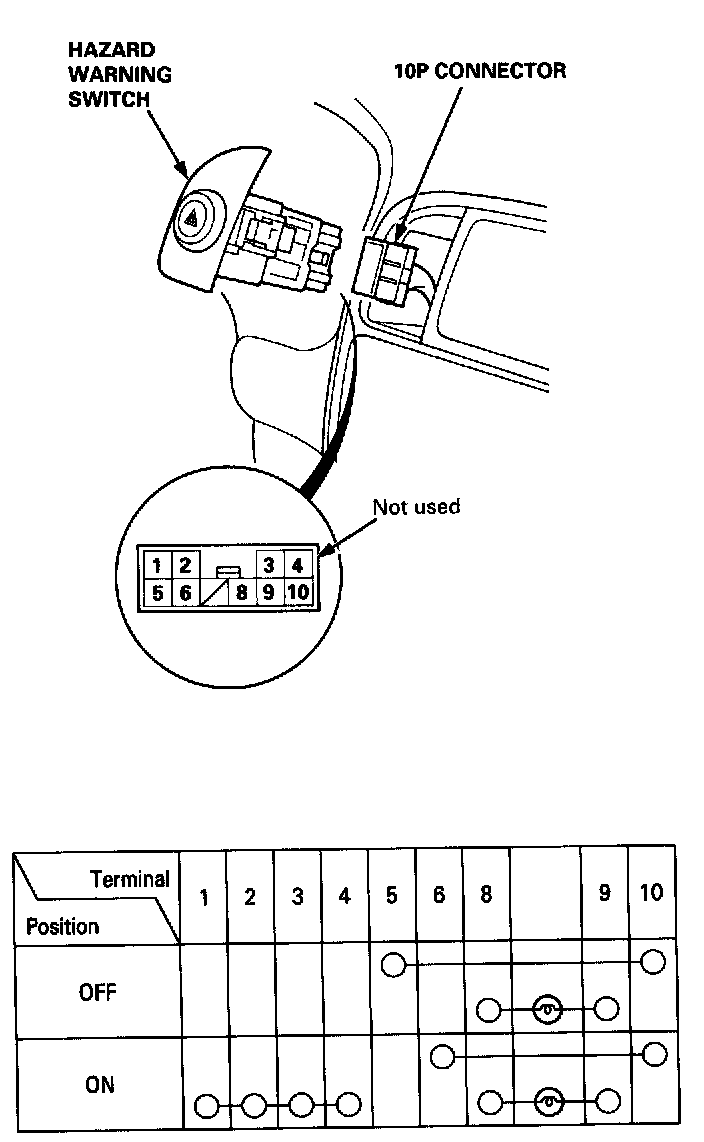

1. Pry the hazard warning switch out of the center outlet panel.
2. Disconnect the 10P connector from the hazard warning switch.




3. Check for continuity between the terminals in each switch position according to the table.
