Main Switch Test/Replacement

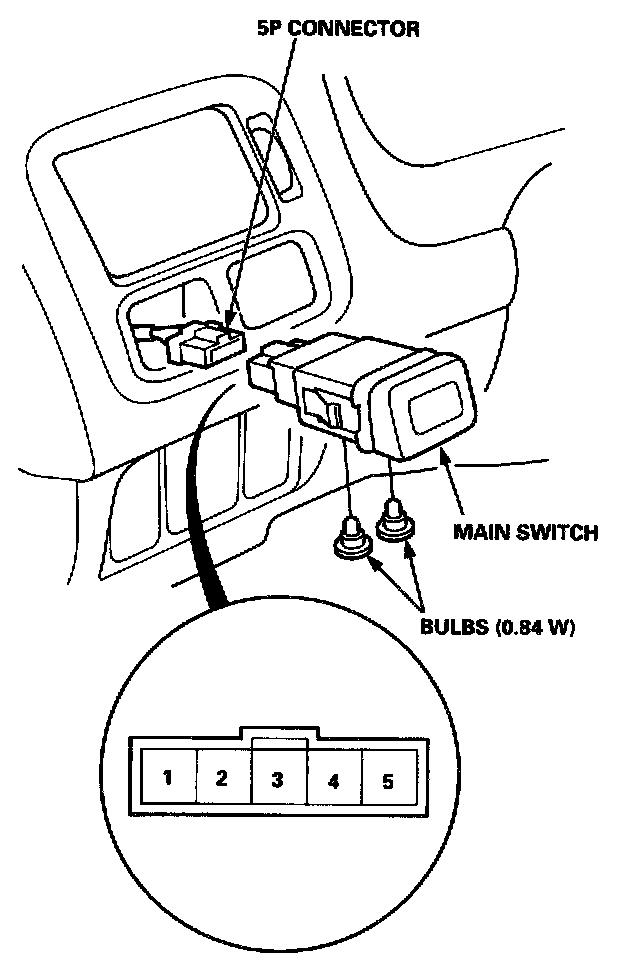

1. Remove the driver's dashboard lower cover.
2. Carefully push out the switch from behind the dash-board.




3. Disconnect the connector from the switch.

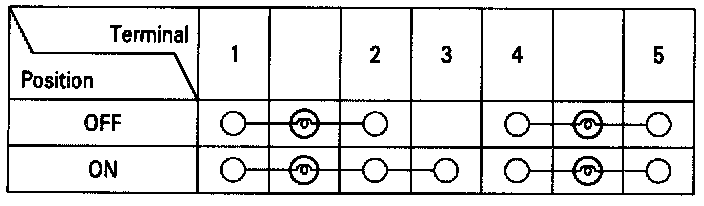

4. Check for continuity between the terminals in each switch position according to the table.
If there is no continuity, replace the switch.
