Sunroof / Moonroof Switch: Adjustments

Switch Plate Adjustment (Fully Closed Position)




1. Remove the headliner.
2. Using the moon roof wrench, close the glass fully.

NOTE: Check the glass fit to the roof panel.

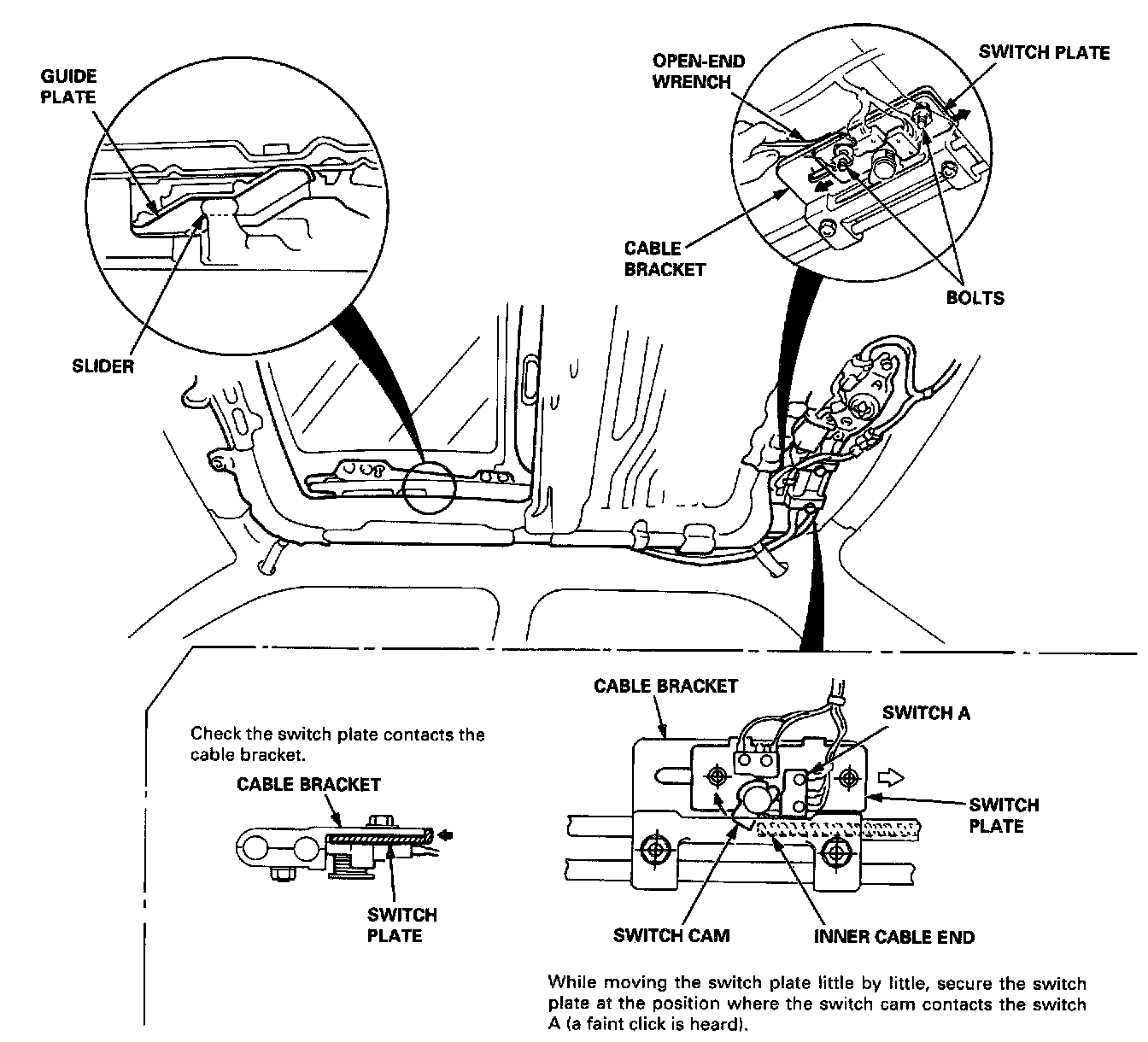

3. Using an open-end wrench, loosen the switch plate mounting bolts.
4. Adjust position of the switch plate (switch cam) as shown.
5. Check the operation of the glass (from tilt-up position to fully closed position, from the fully open position to the fully closed position) by operating the moonroof switch.

NOTE: Check the glass height.

6. Close the glass fully, and check for water leaks.

NOTE: Do not use high-pressure water.
