Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (VTEC-E) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - HVAC >> Control Module HVAC >> Testing and Inspection

Control Module HVAC: Testing and Inspection

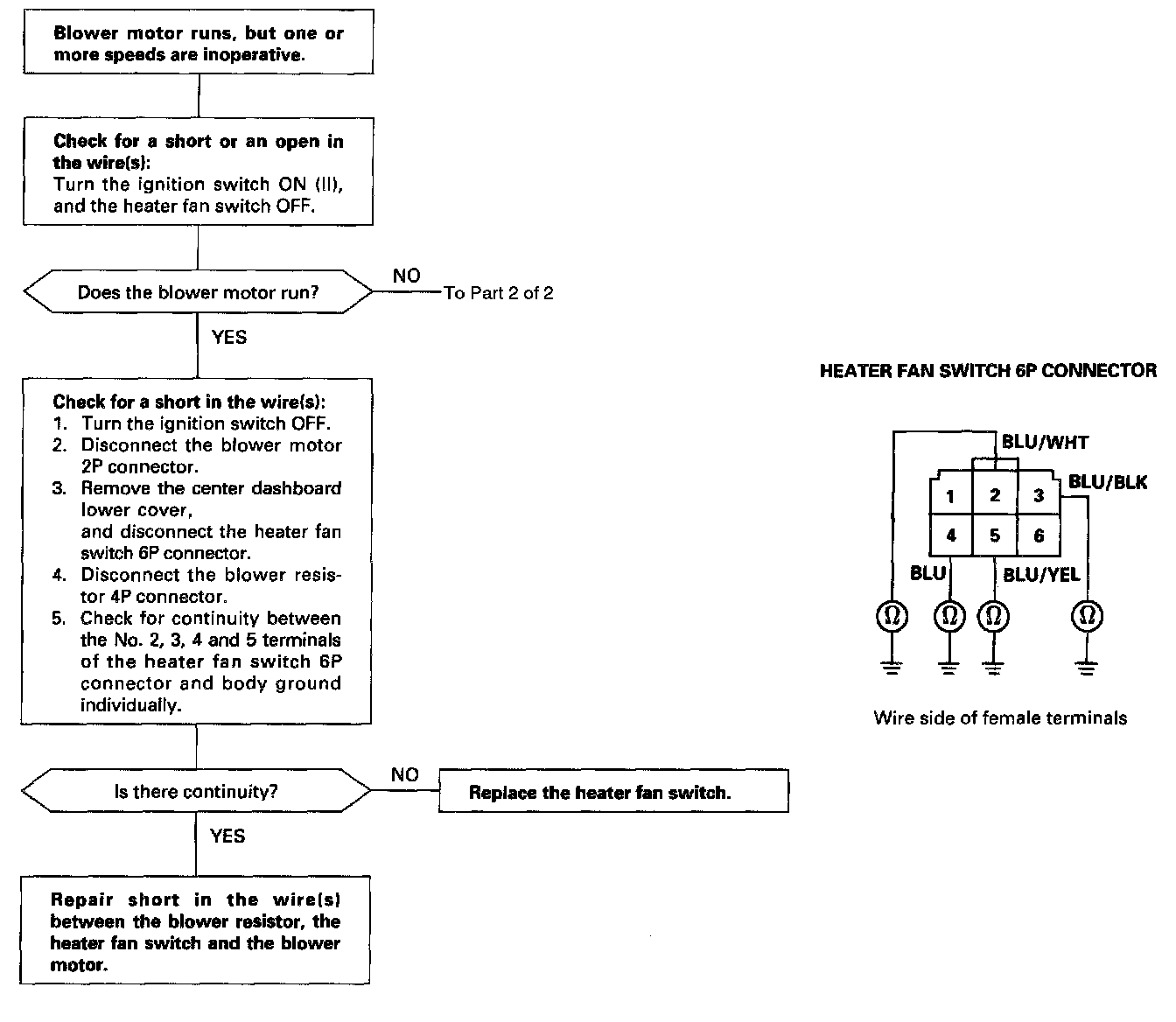

Blower Motor Speed (Part 1 Of 2):

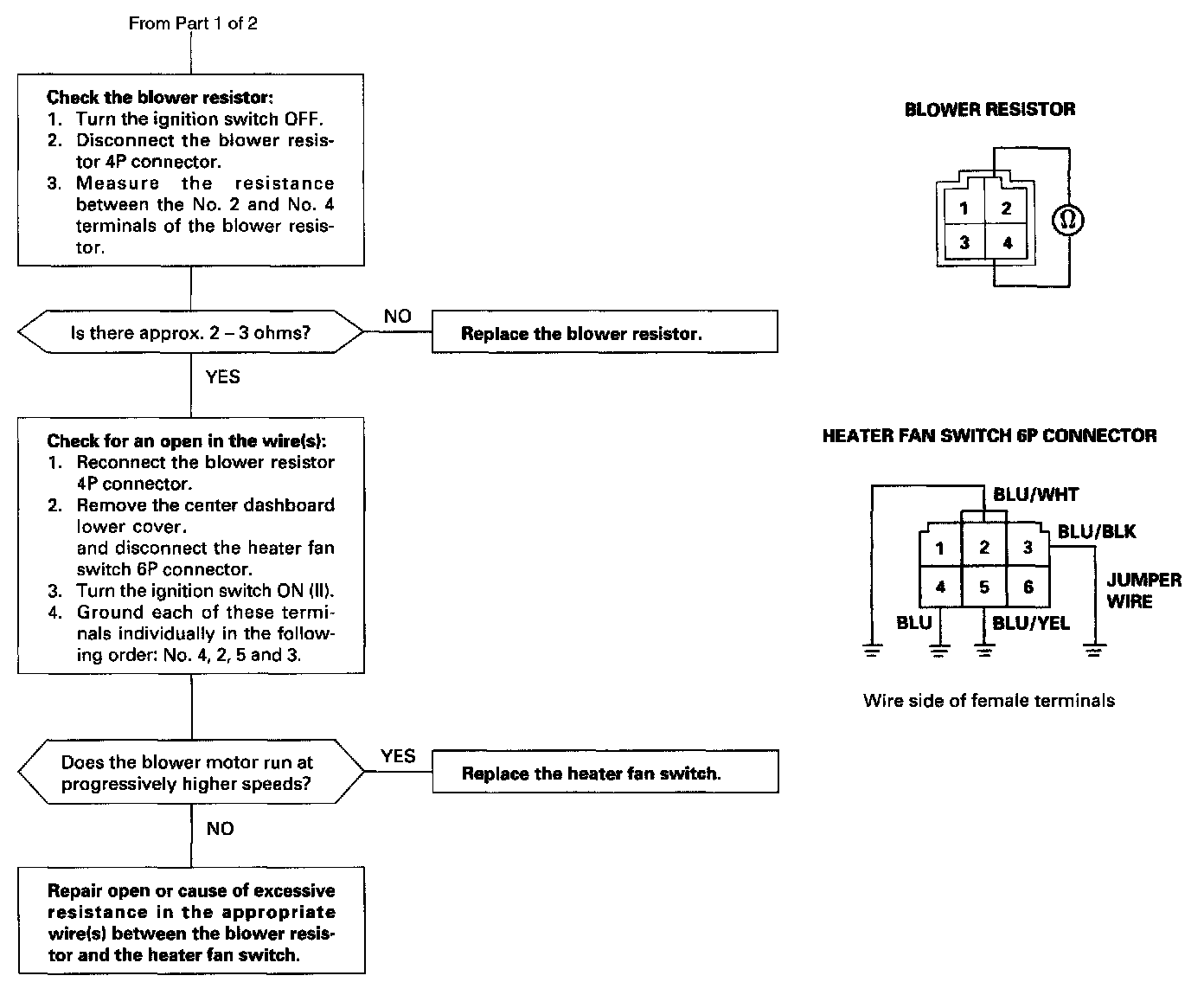

Blower Motor Speed (Part 2 Of 2):
