Ignition Coil: Testing and Inspection

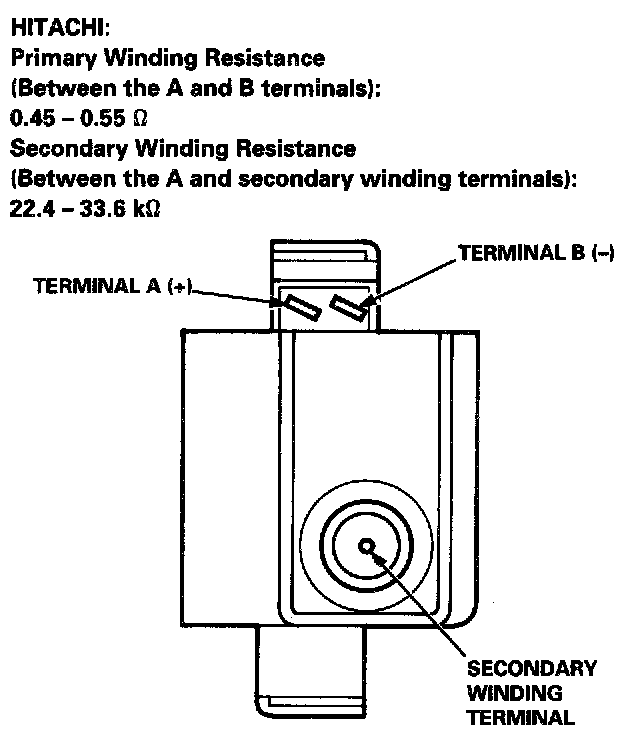

HITACHI:

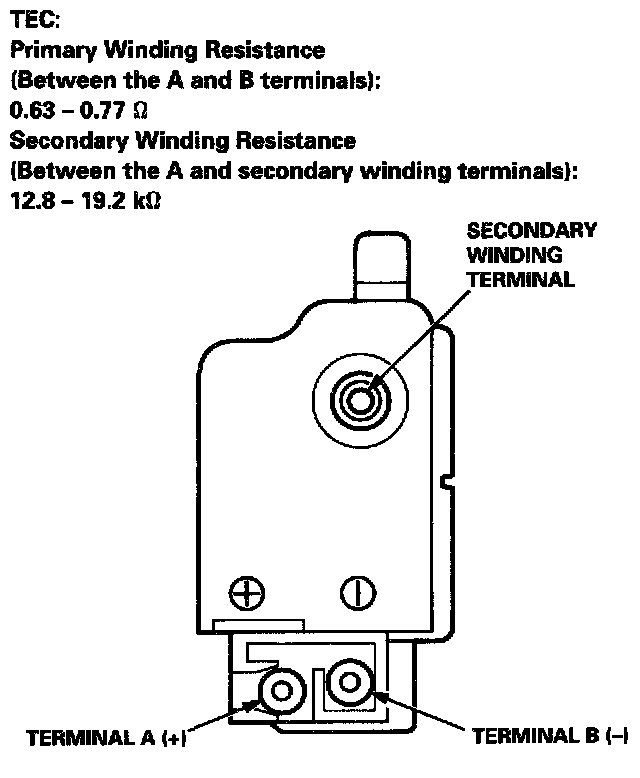

TEC:

Using an ohmmeter, measure resistance between the terminals.
If the resistance is not within specifications, replace the ignition coil.

NOTE: Resistance will vary with the coil temperature; specifications are at 68°F (20°C).
