Removal

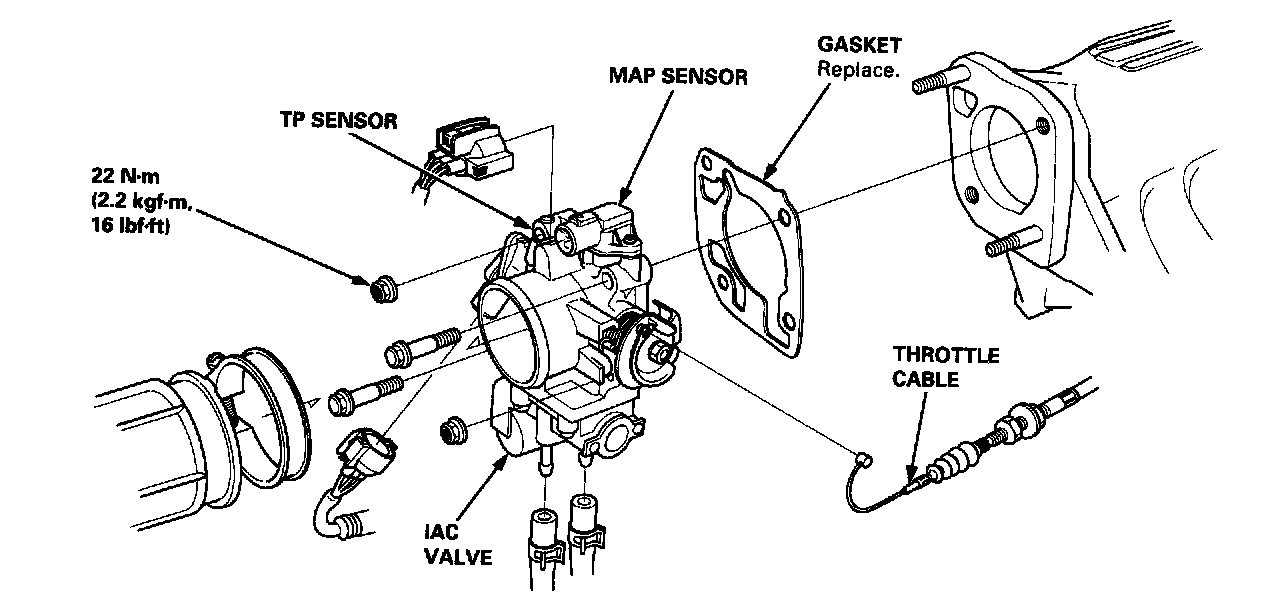

1.6L SOHC VTEC-E, 1.6L SOHC VTEC, 1.6L DOHC VTEC:

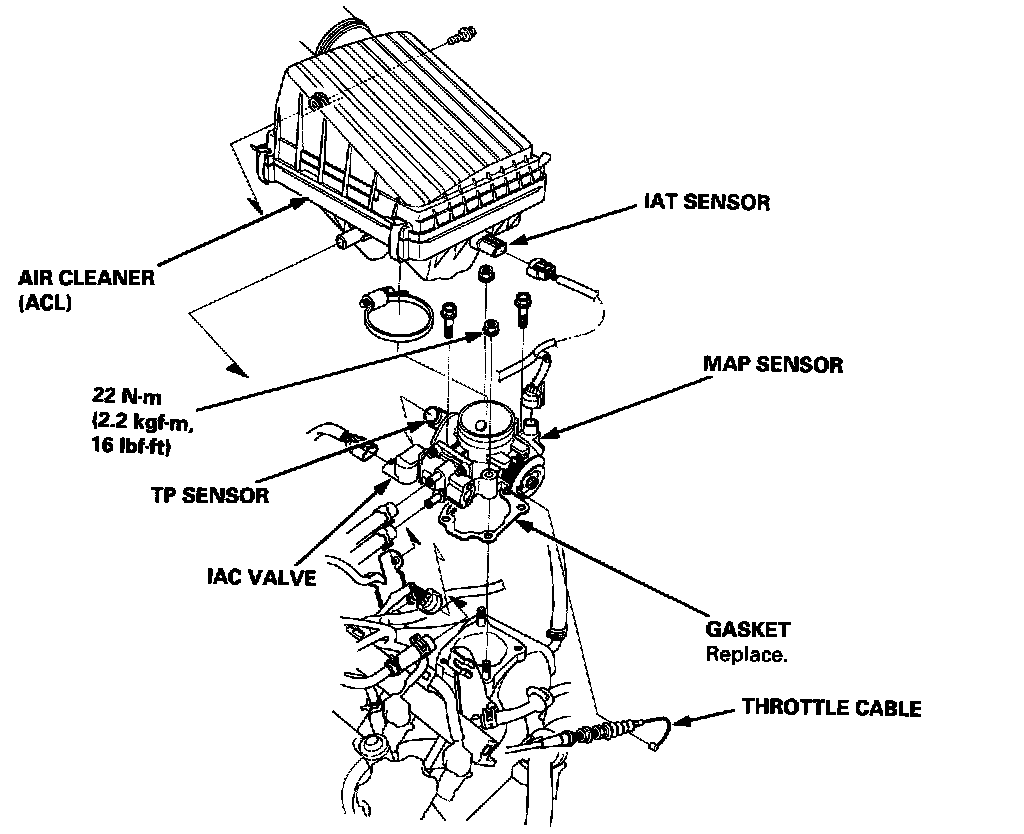

1.6L SOHC Non-VTEC:

NOTE:
- Do not adjust the throttle stop screw.
- After reassembly, adjust the throttle cable.
- The TP sensor is not removable.
