Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (VTEC-E) >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Schematic Diagrams >> With CVT

With CVT

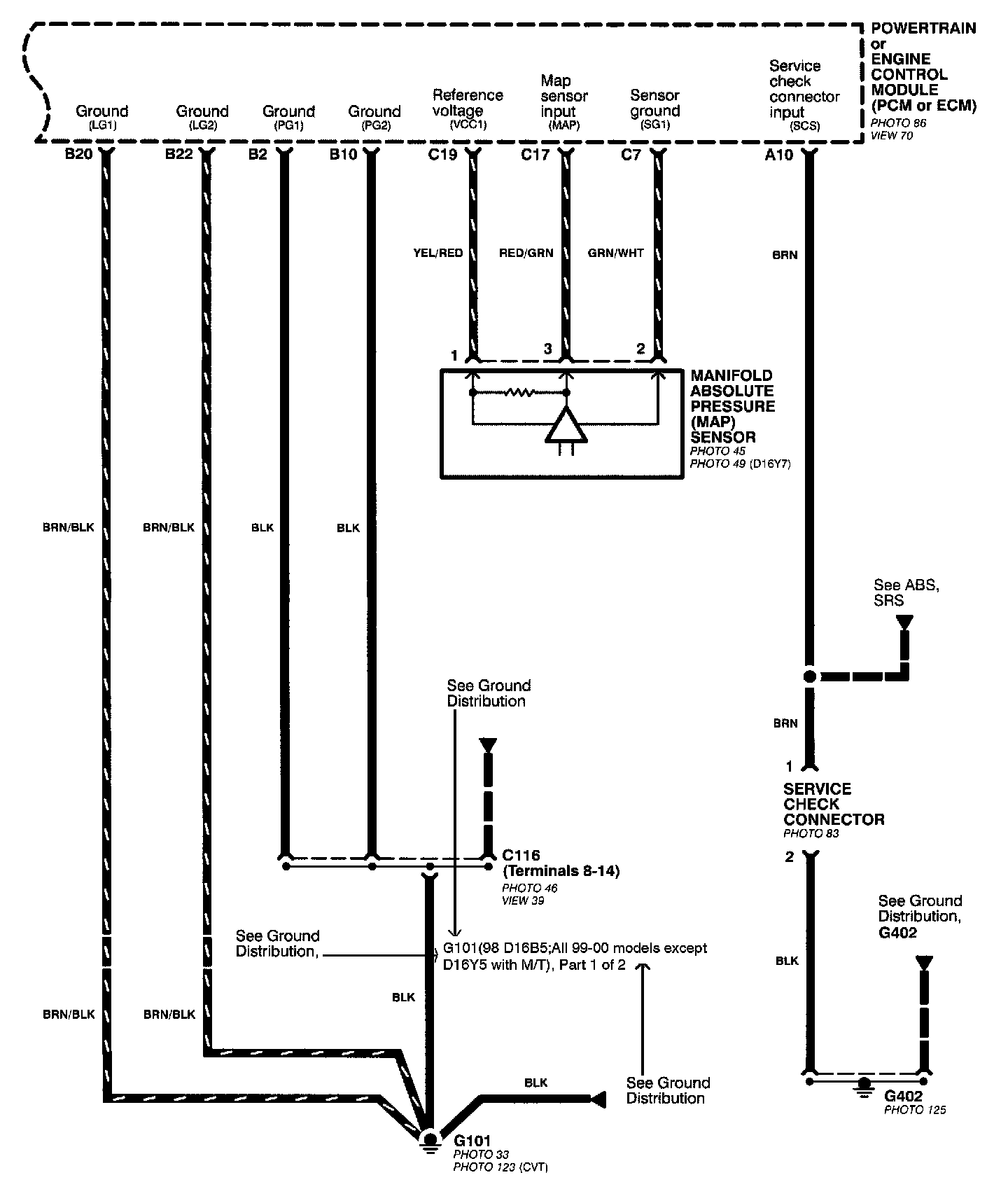

Part 1 (All 99-00 Models Except D16Y5 With M/T And D16B5):

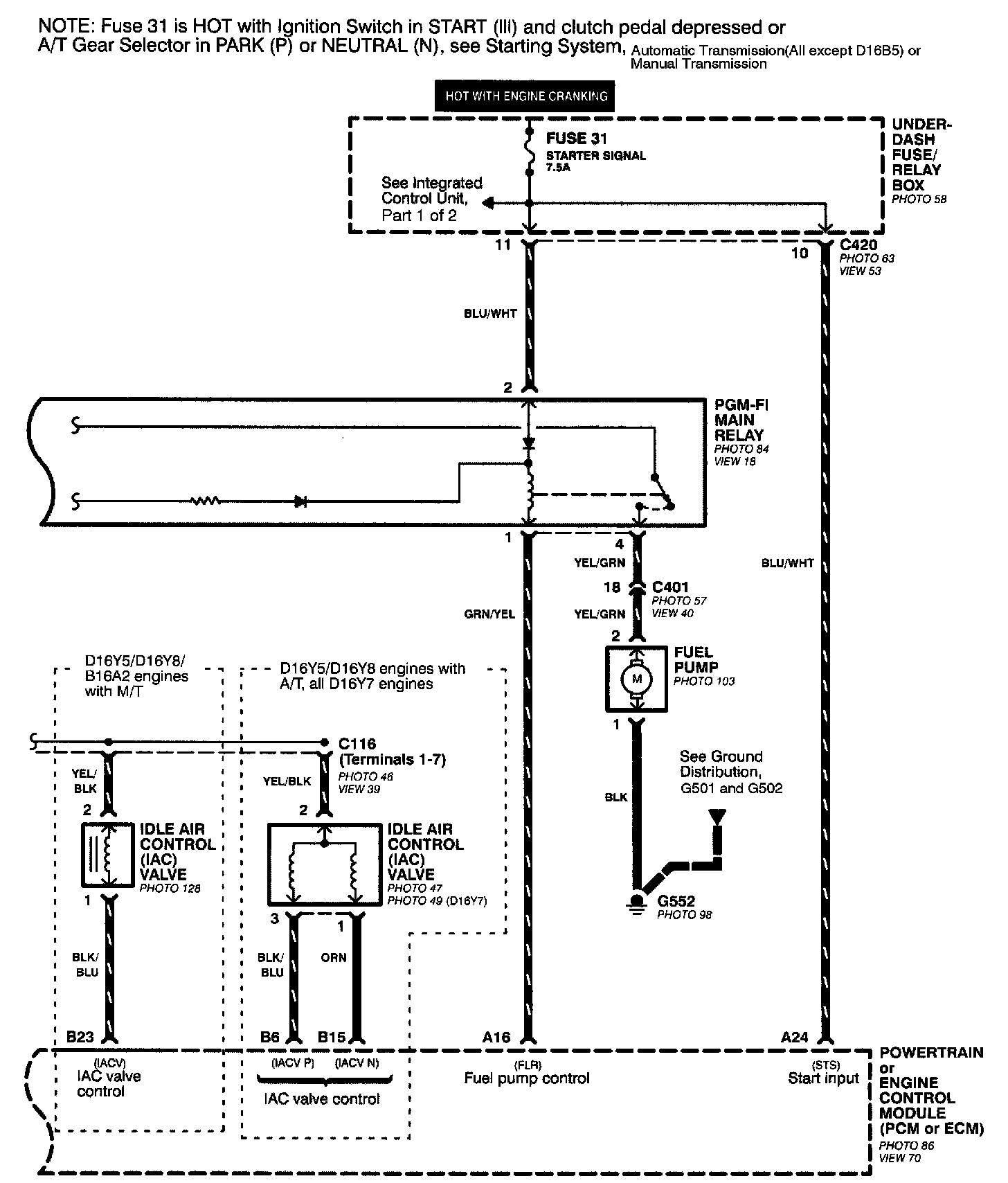

Part 2 (All 99-00 Models Except D16Y5 With M/T And D16B5):

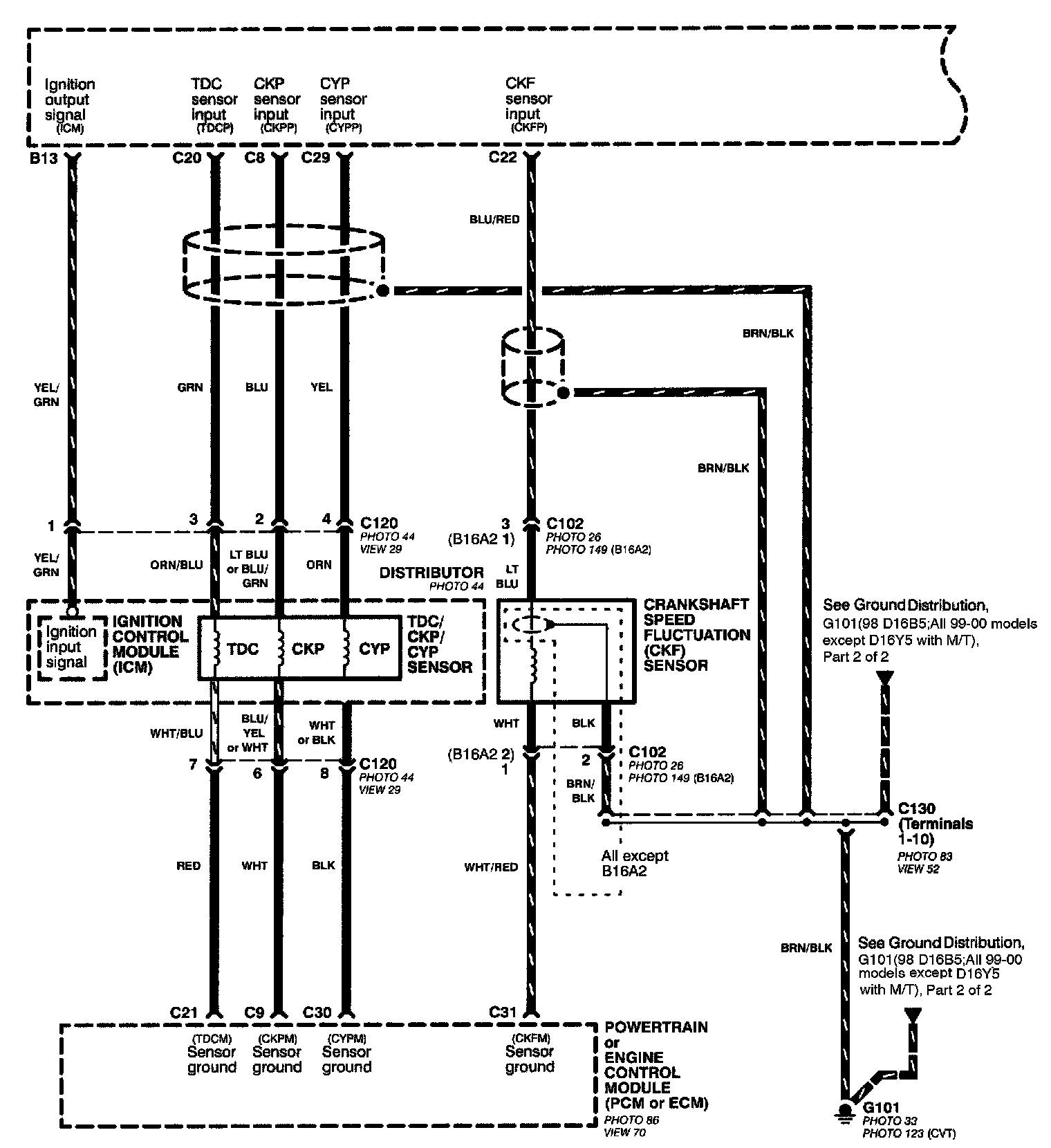

Part 3 (All 99-00 Models Except D16Y5 With M/T And D16B5):

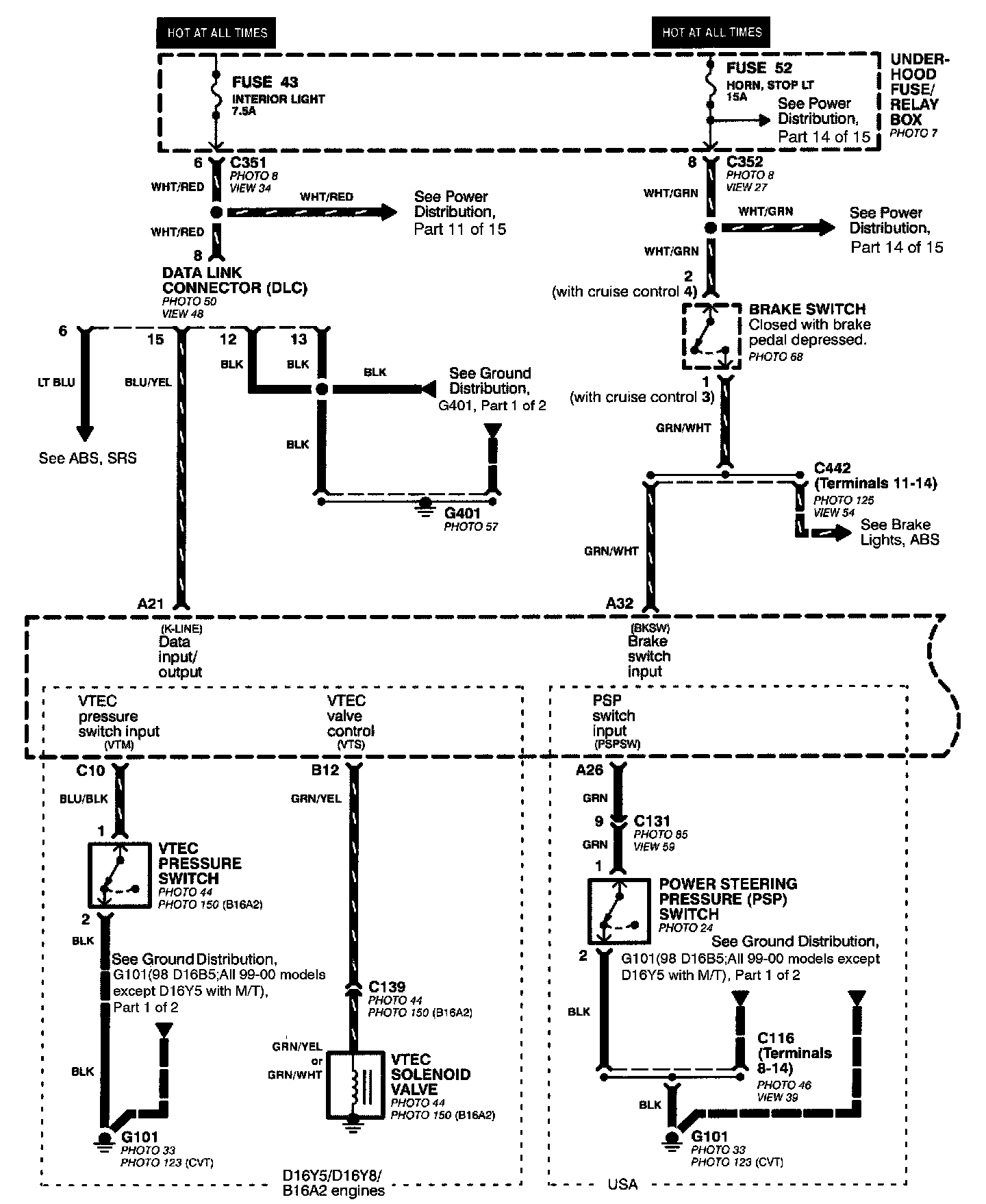

Part 4 (All 99-00 Models Except D16Y5 With M/T And D16B5):

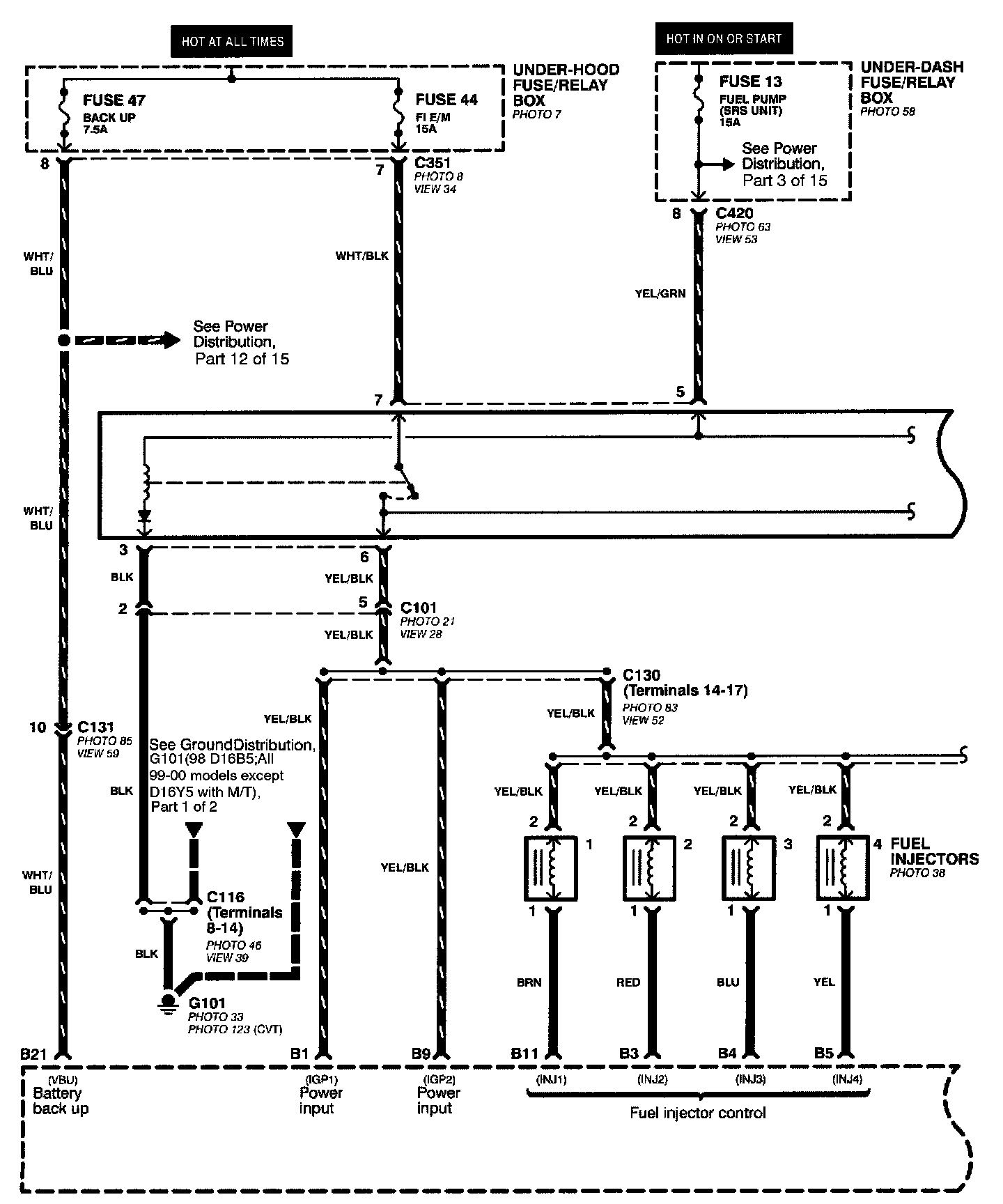

Part 5 (All 99-00 Models Except D16Y5 With M/T And D16B5):

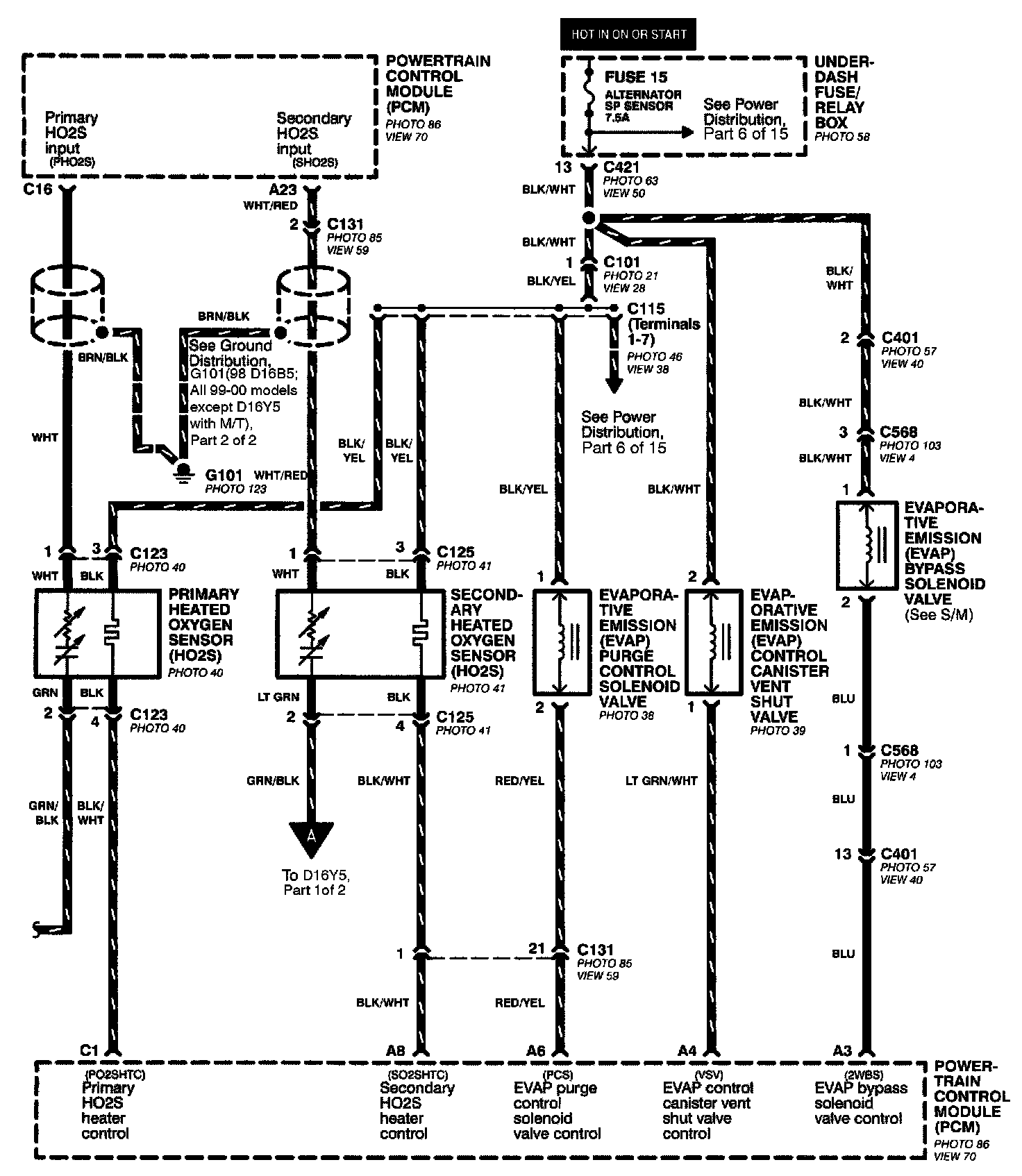

Part 6 (All 99-00 Models Except D16Y5 With M/T And D16B5):

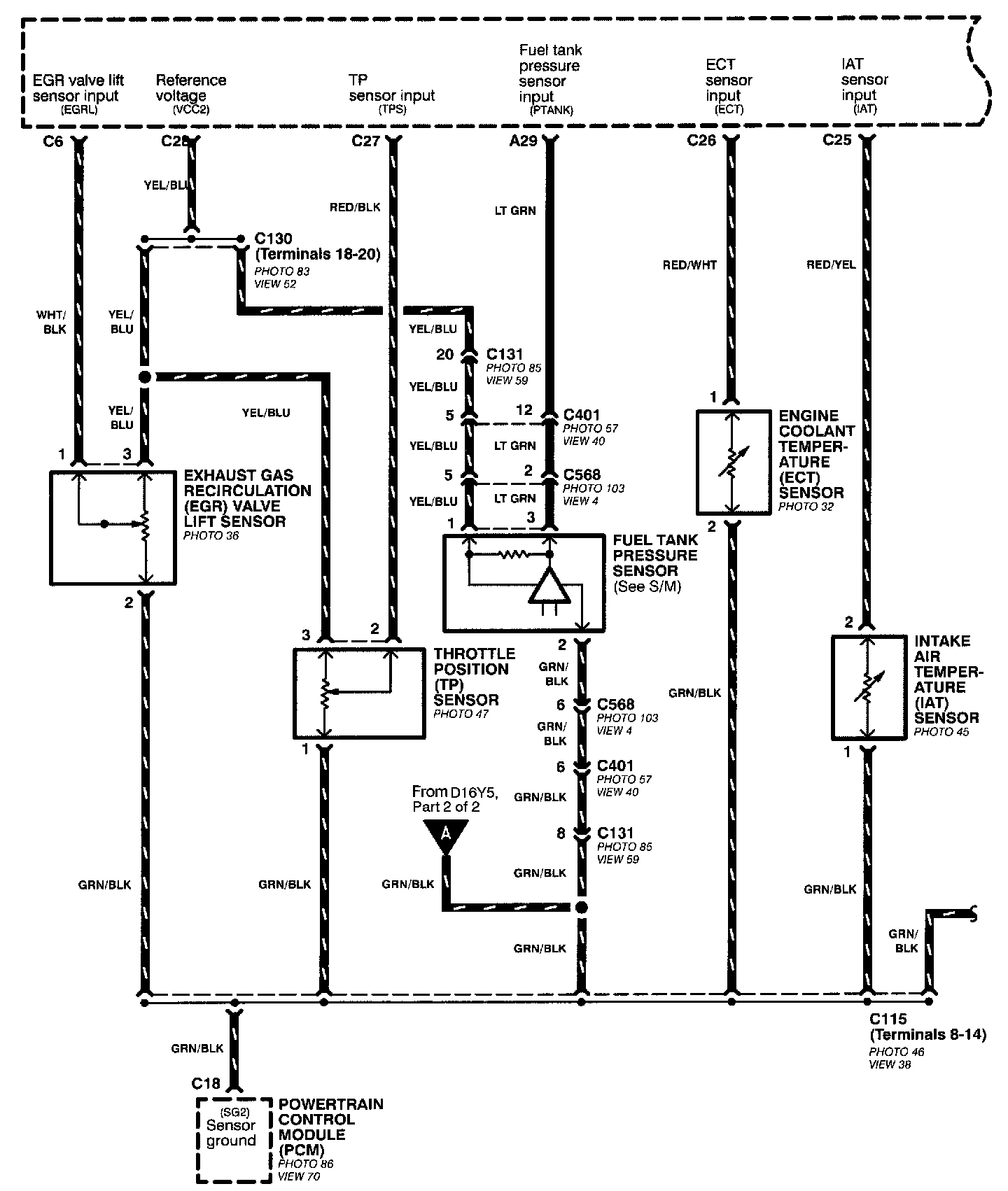

PGM-FI D16Y5:





PGM-FI D16Y5:
