Pinout Values and Diagnostic Parameters

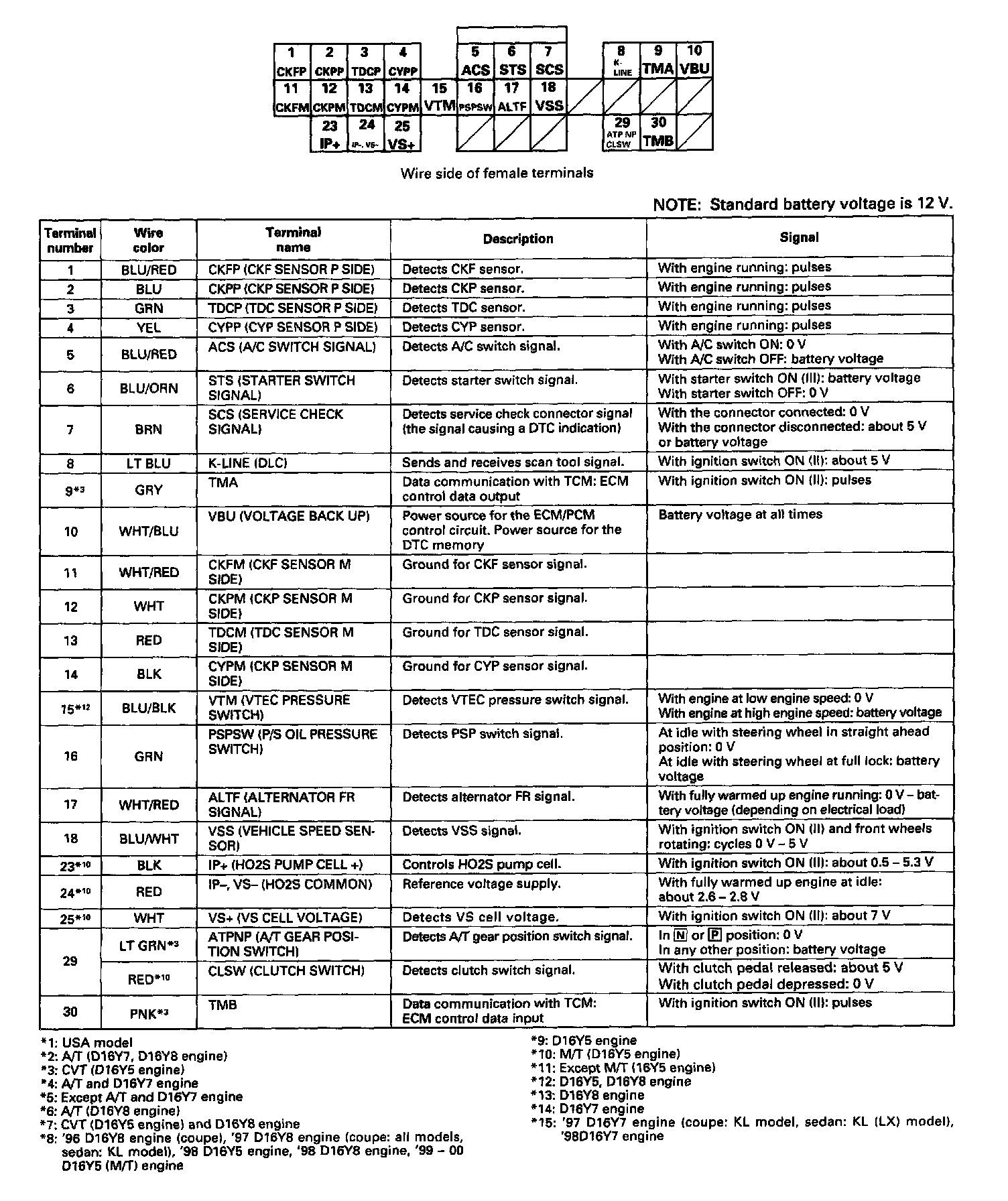

ECM/PCM CONNECTOR A (32P):

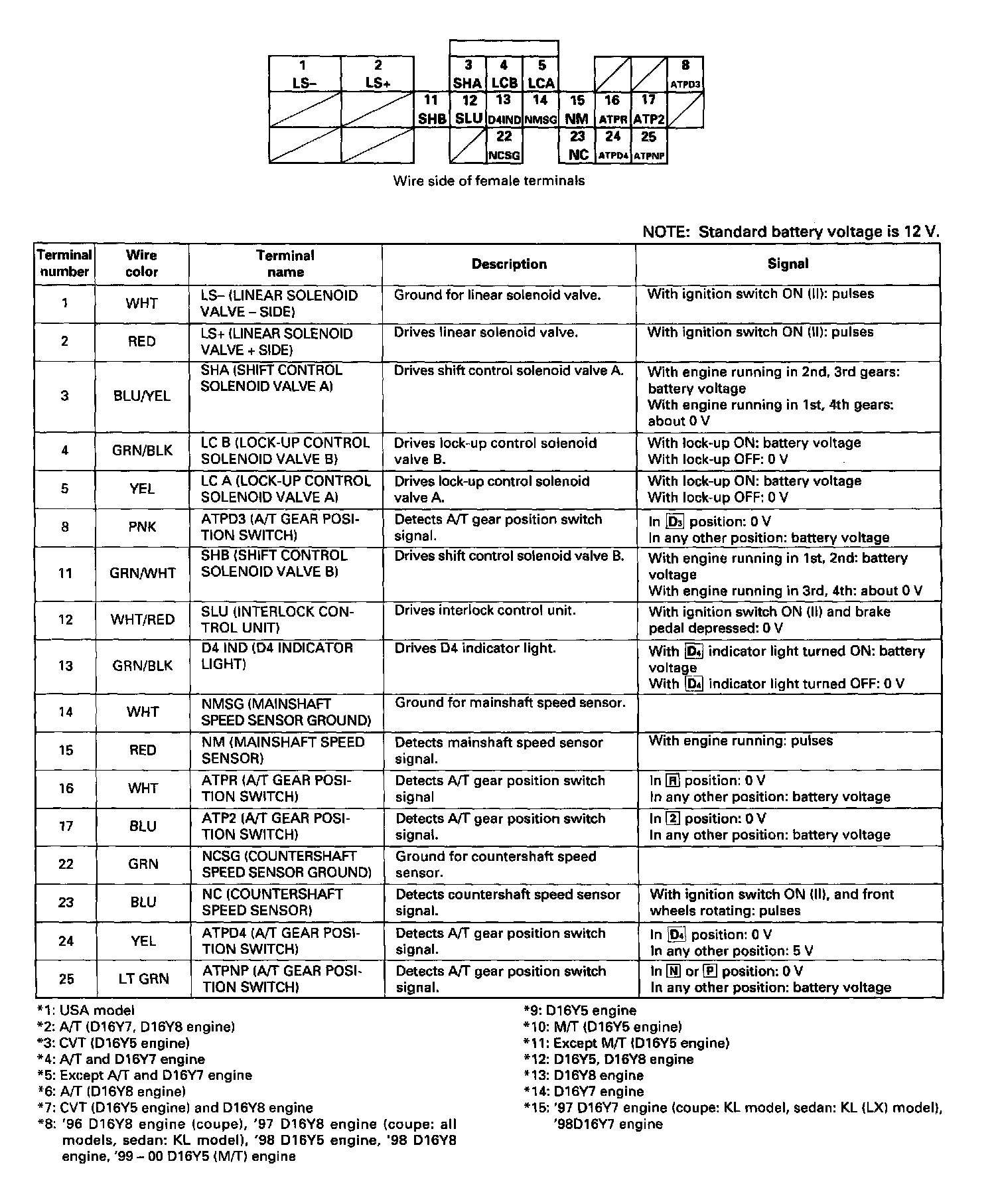

ECM/PCM CONNECTOR B (25P):

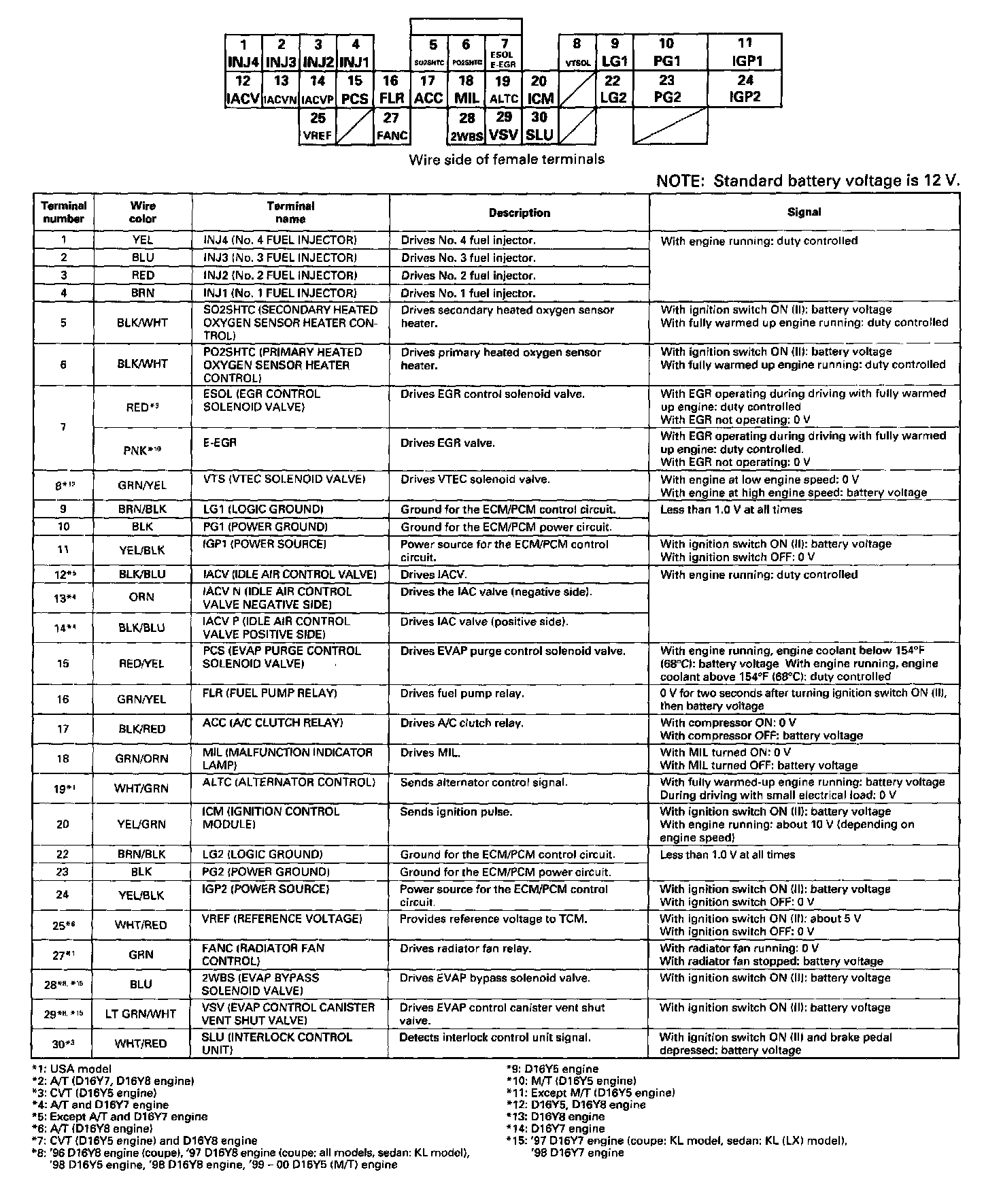

ECM/PCM CONNECTOR C (31P):

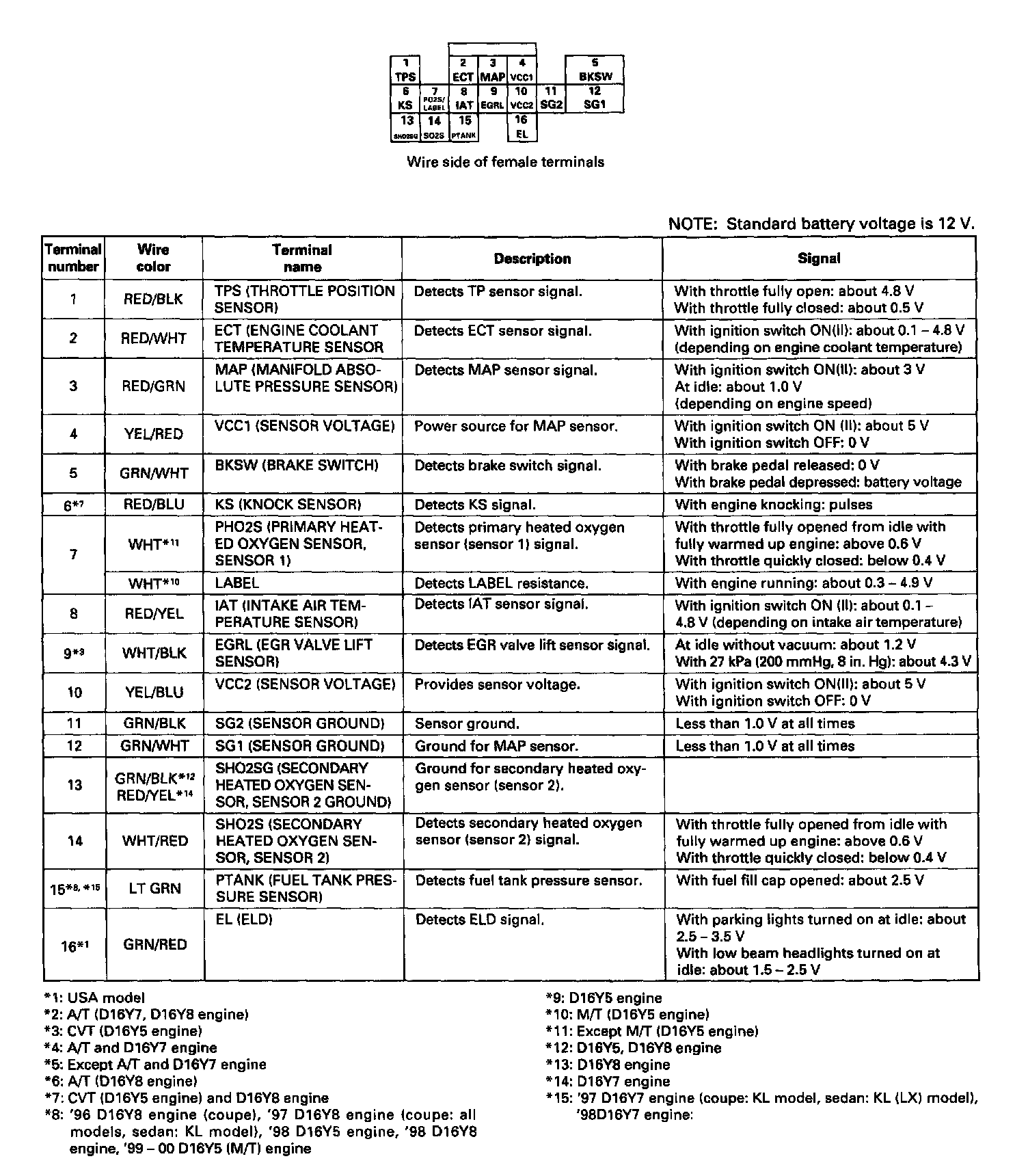

ECM/PCM CONNECTOR D (16P):
