Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (VTEC-E) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Idle Control System >> Power Steering Pressure (PSP) Switch Signal

Power Steering Pressure (PSP) Switch Signal

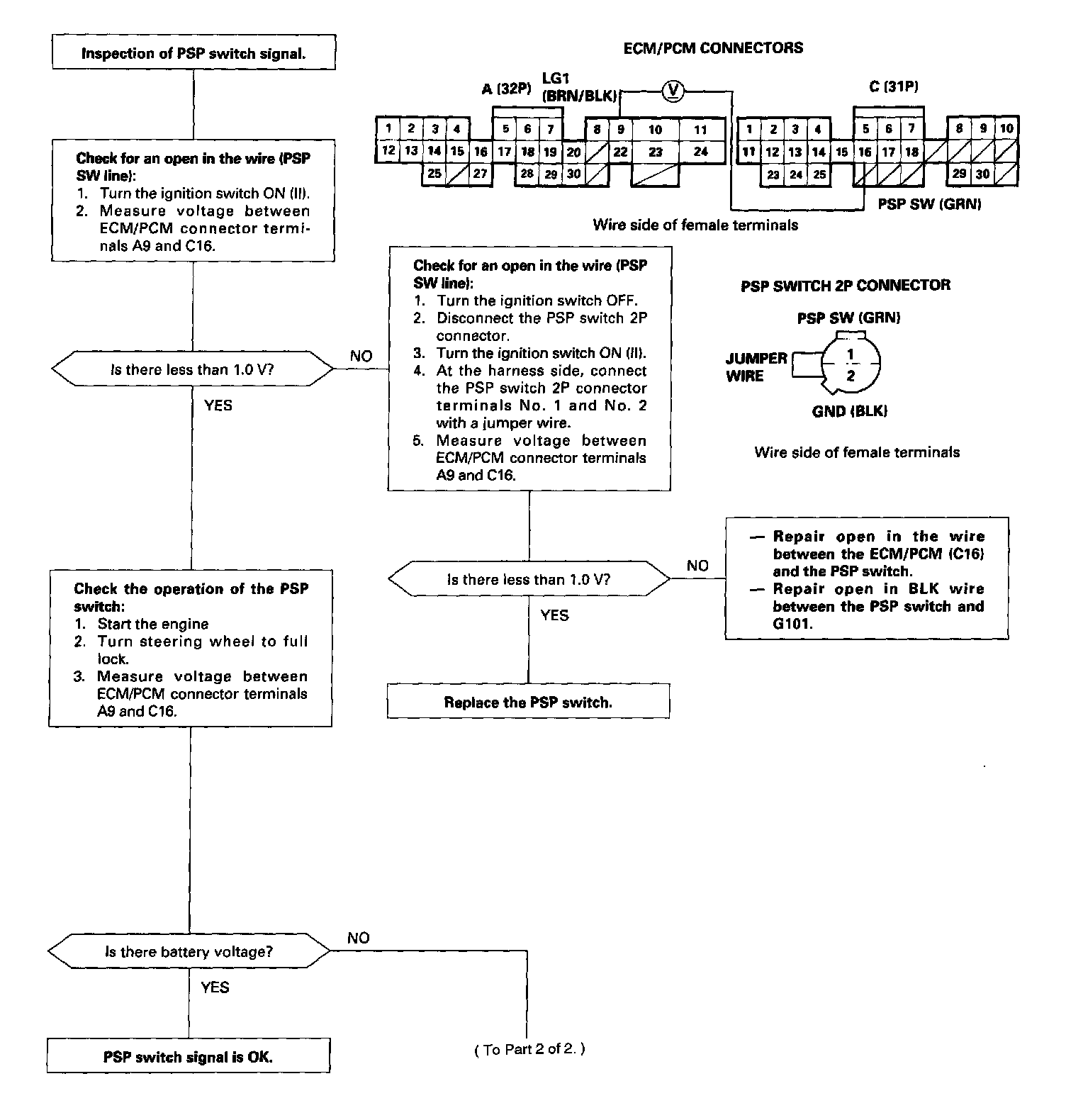

Part 1 Of 2:

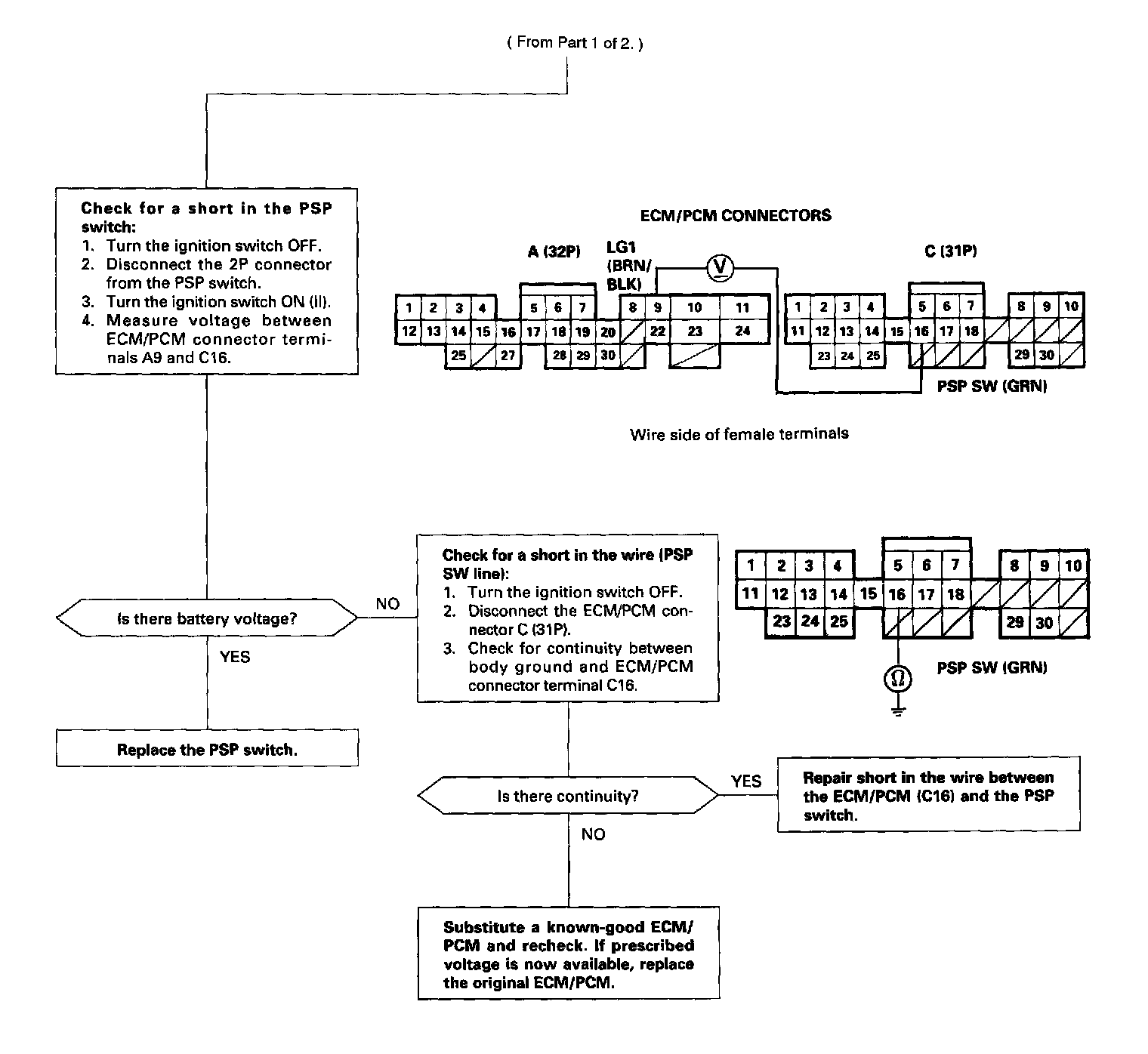

Part 2 Of 2:




This signals the ECM/ PCM when the power steering load is high.
