Air Conditioning Signal
Air Conditioning Signal

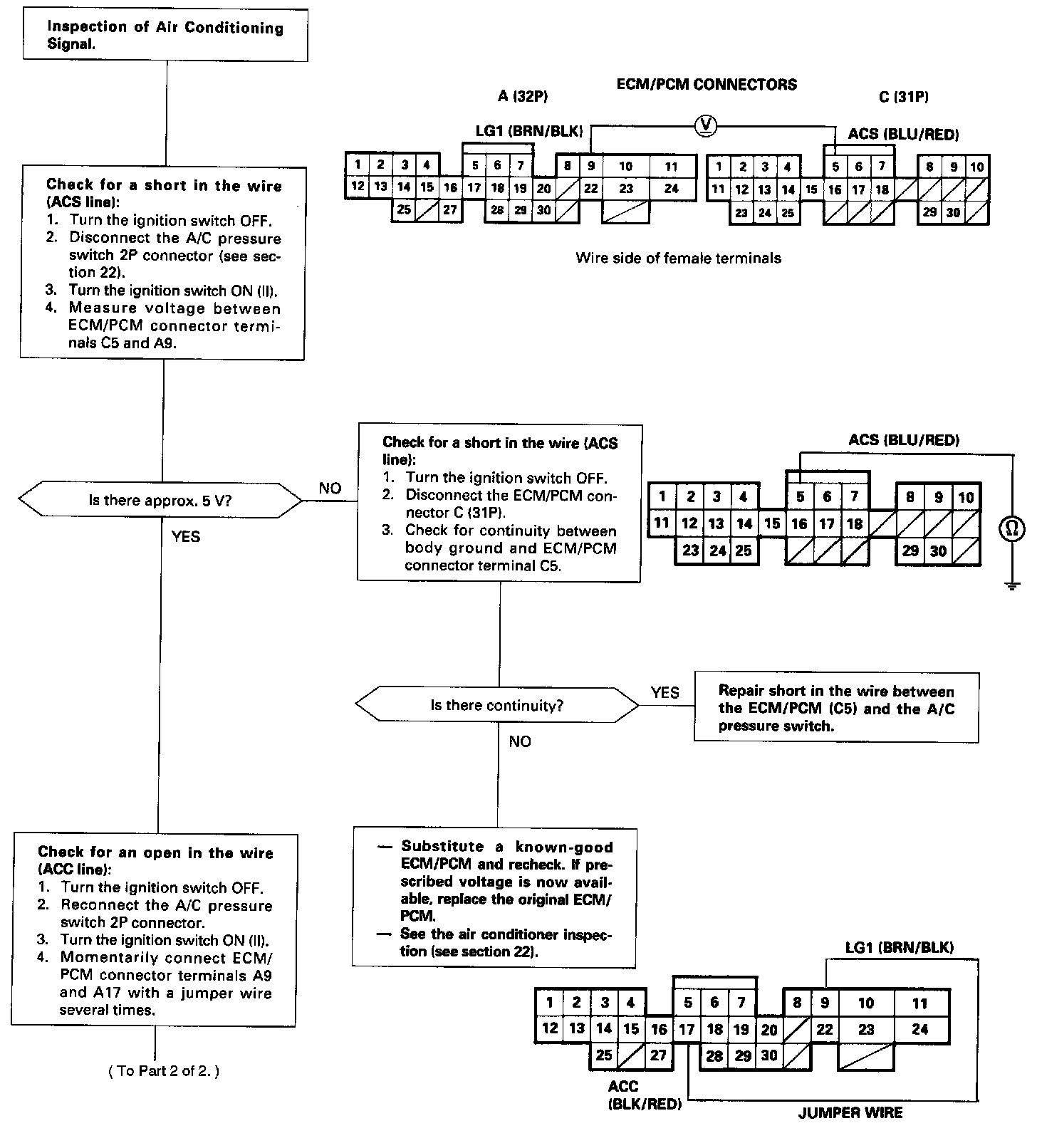

Part 1 Of 2:

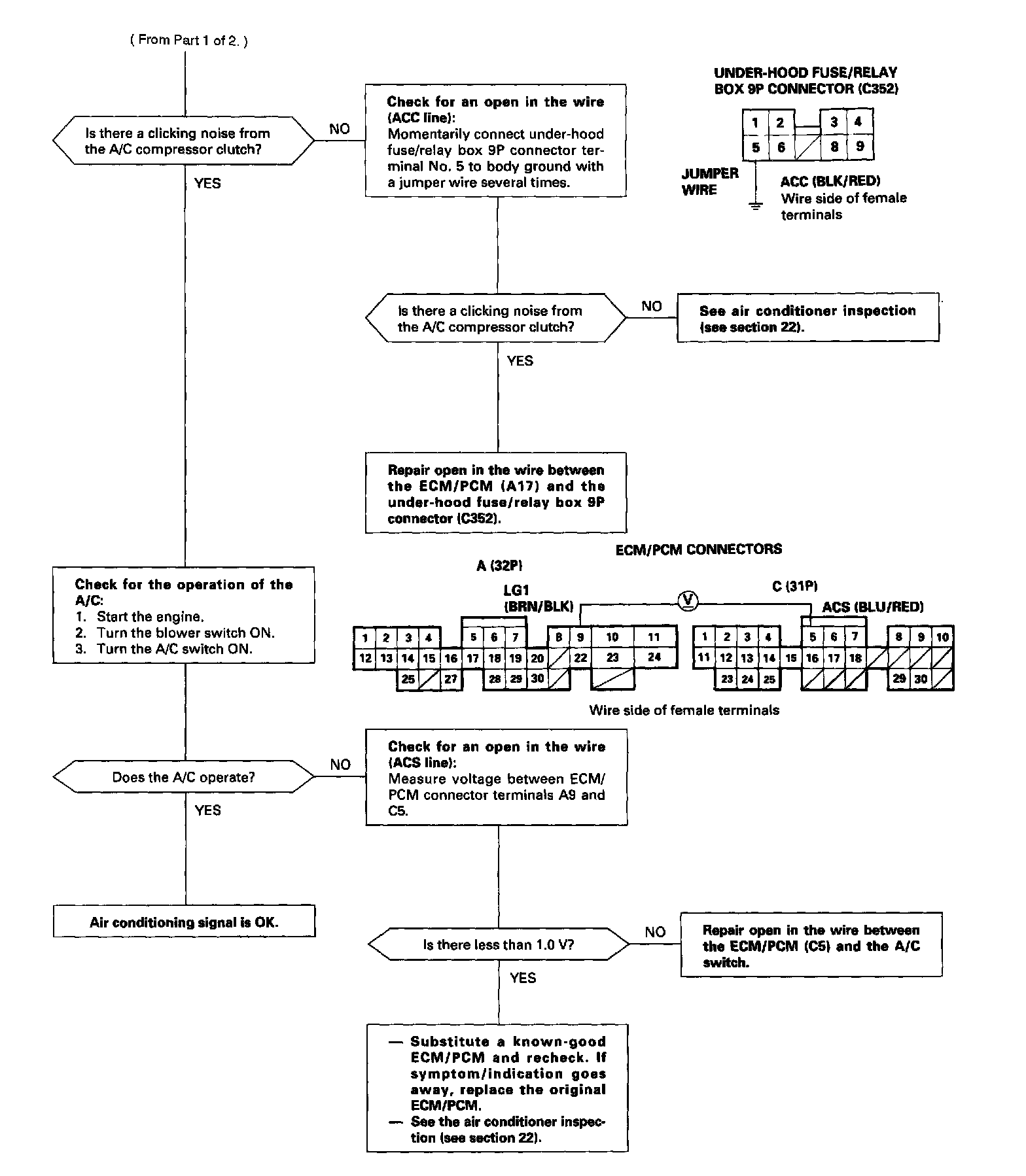

Part 2 Of 2:
This signals the
ECM/PCM
when there is a demand for cooling from the air conditioning system.
