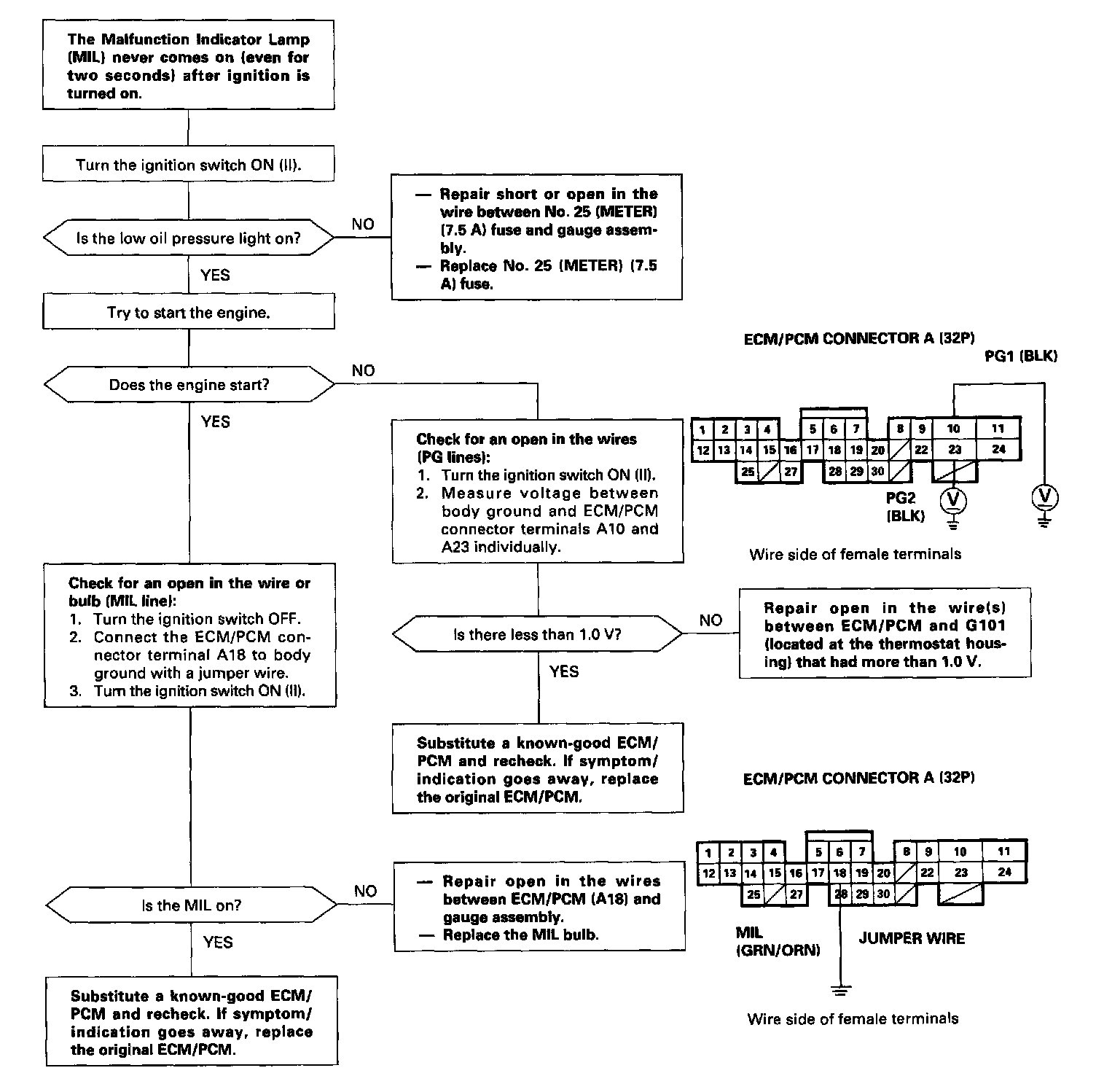

MIL Does Not Come ON






NOTE: If this symptom is intermittent, check for a loose fuse No.25 (METER 7.5 A) in the under-dash fuse/relay box, a poor connection at ECM/PCM terminal A18, or an intermittent open in the GRN/ORN wire between the ECM/PCM (A18) and the gauge assembly.
