Main Wire Harness

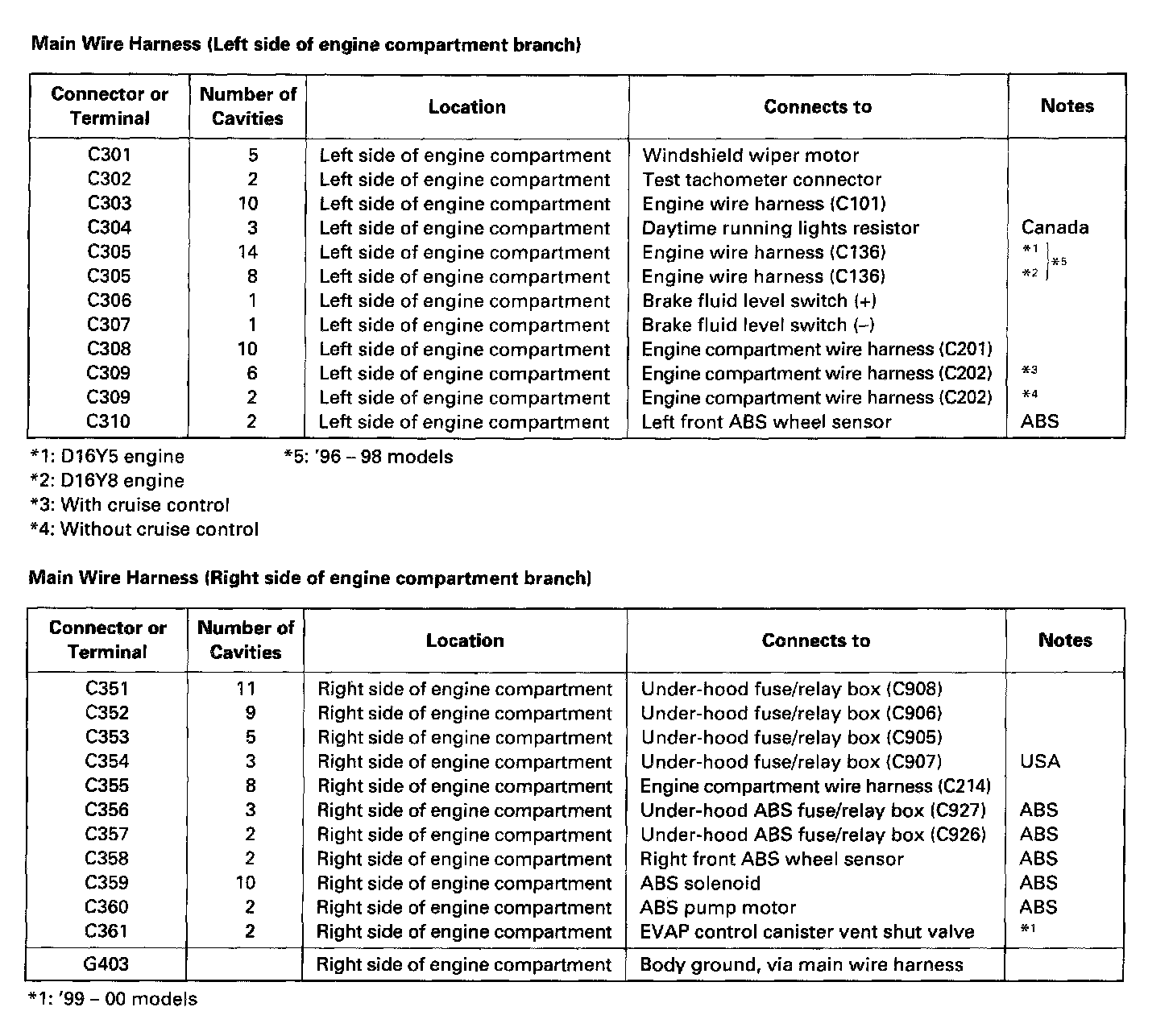

Main Wire Harness (Left Side Of Engine Compartment Branch/Right Side Of Engine Compartment Branch) - Index:

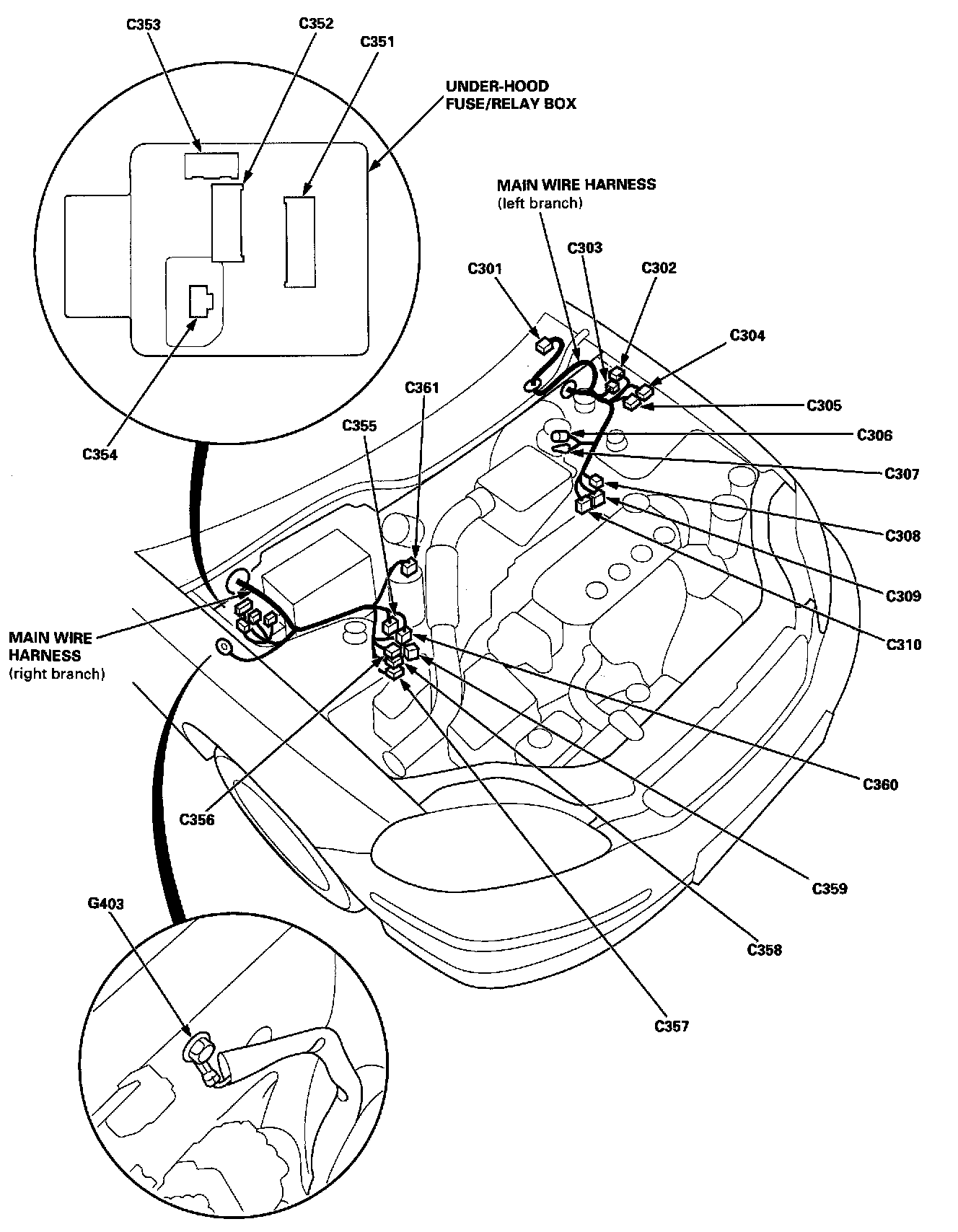

Main Wire Harness (Left Side Of Engine Compartment Branch/Right Side Of Engine Compartment Branch) - View:

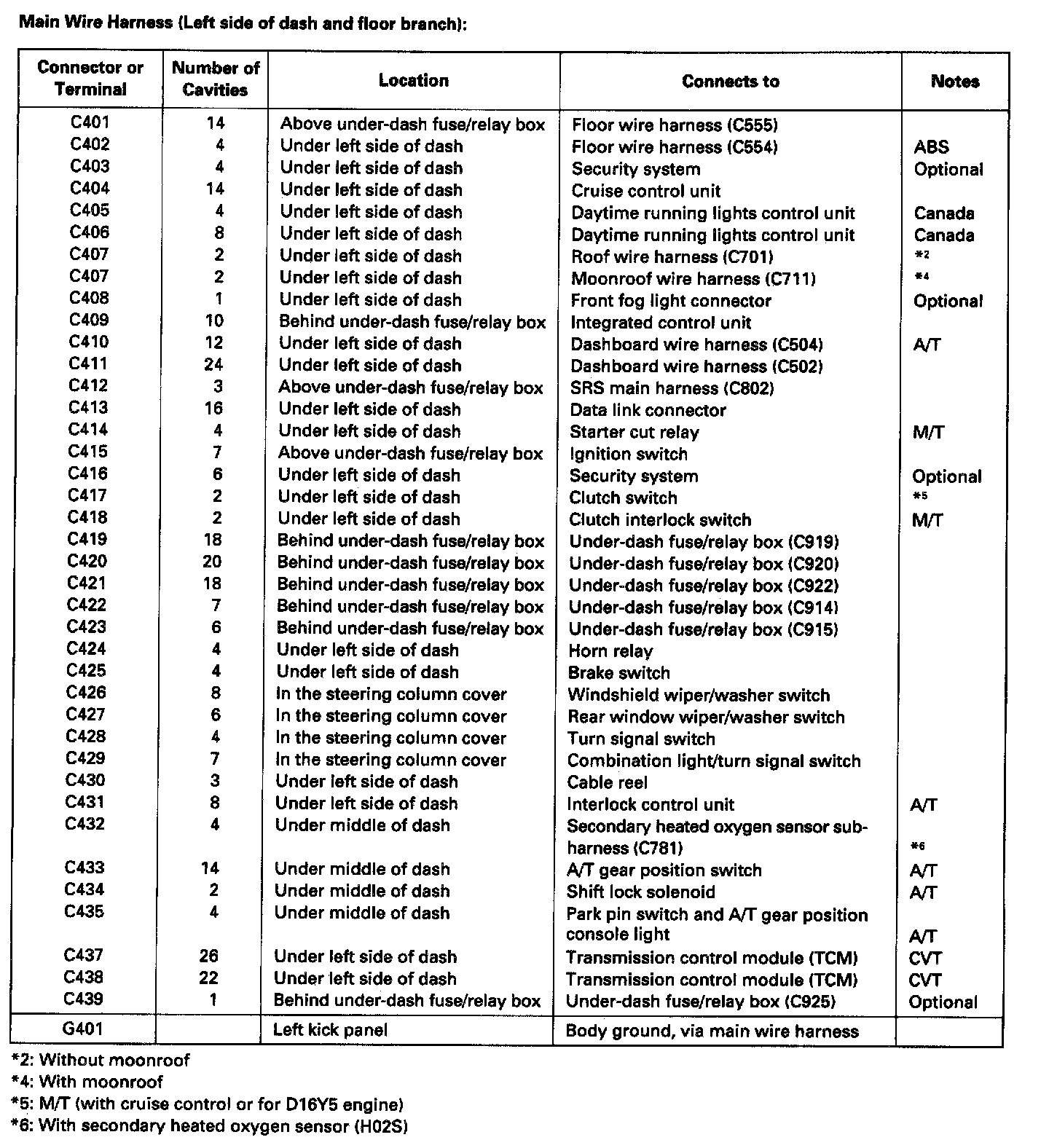

Main Wire Harness (Left Side Of Dash And Floor Branch) - Index:

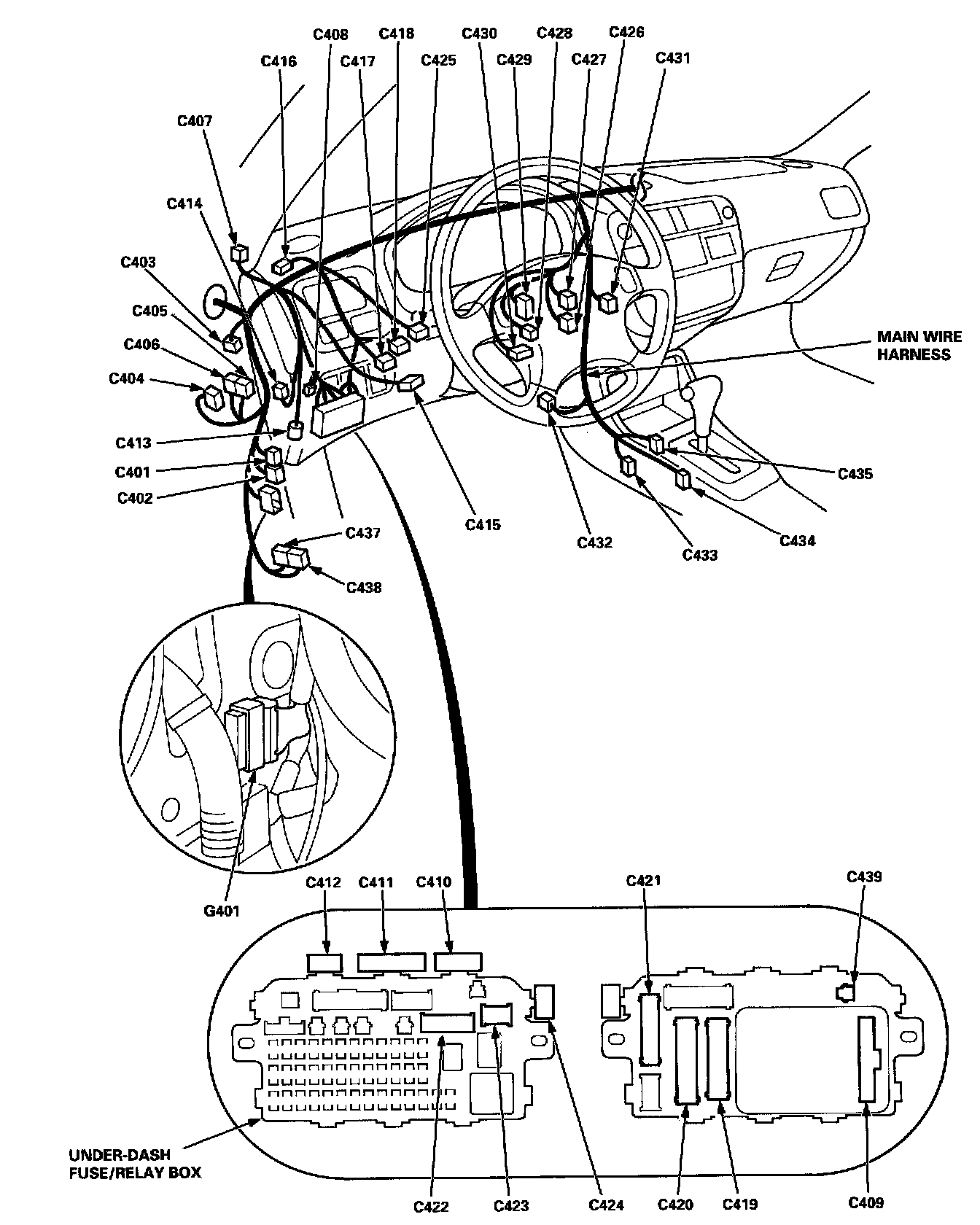

Main Wire Harness (Left Side Of Dash And Floor Branch) - View:

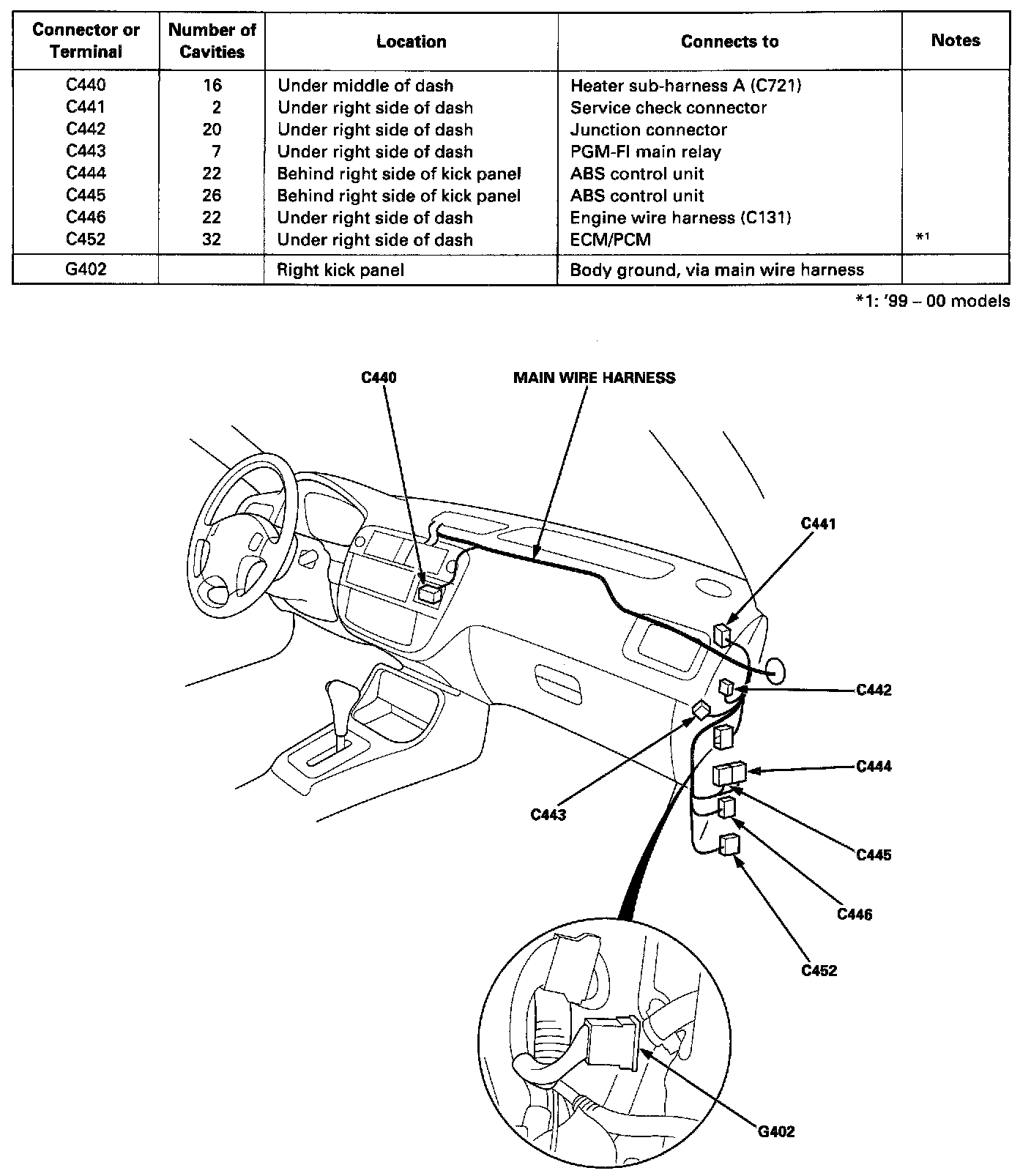

Main Wire Harness (Right Side Of Dash Branch):
