Fuel Tank Pressure Sensor Sub-Harness

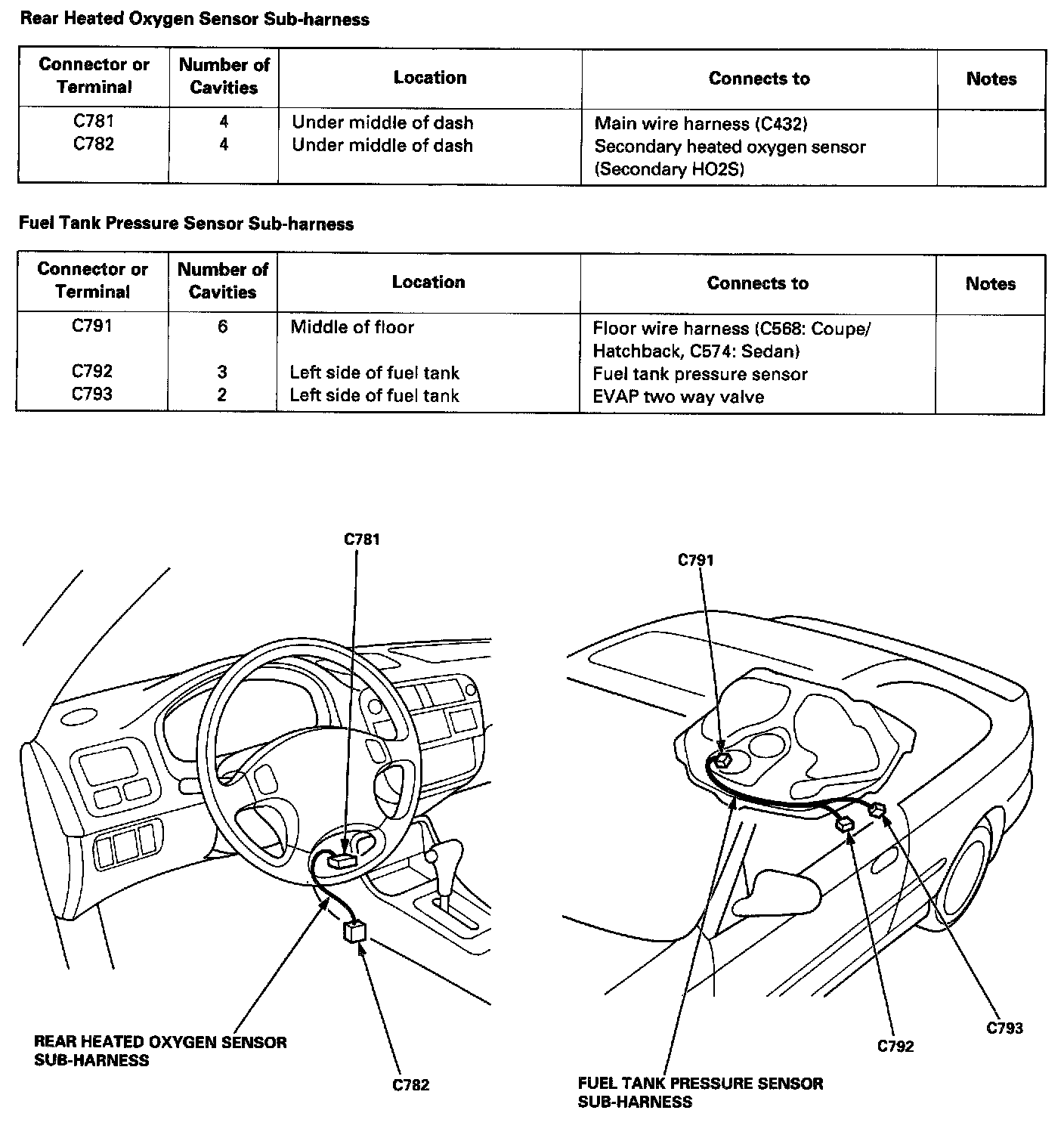

Rear Heated Oxygen Sensor Sub-harness/Fuel Tank Pressure Sensor Sub-harness:
