Home >> Honda >> 1996 >> Civic Coupe L4-1.6L SOHC (VTEC-E) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Harness Locations >> Engine Wire Harness

Engine Wire Harness

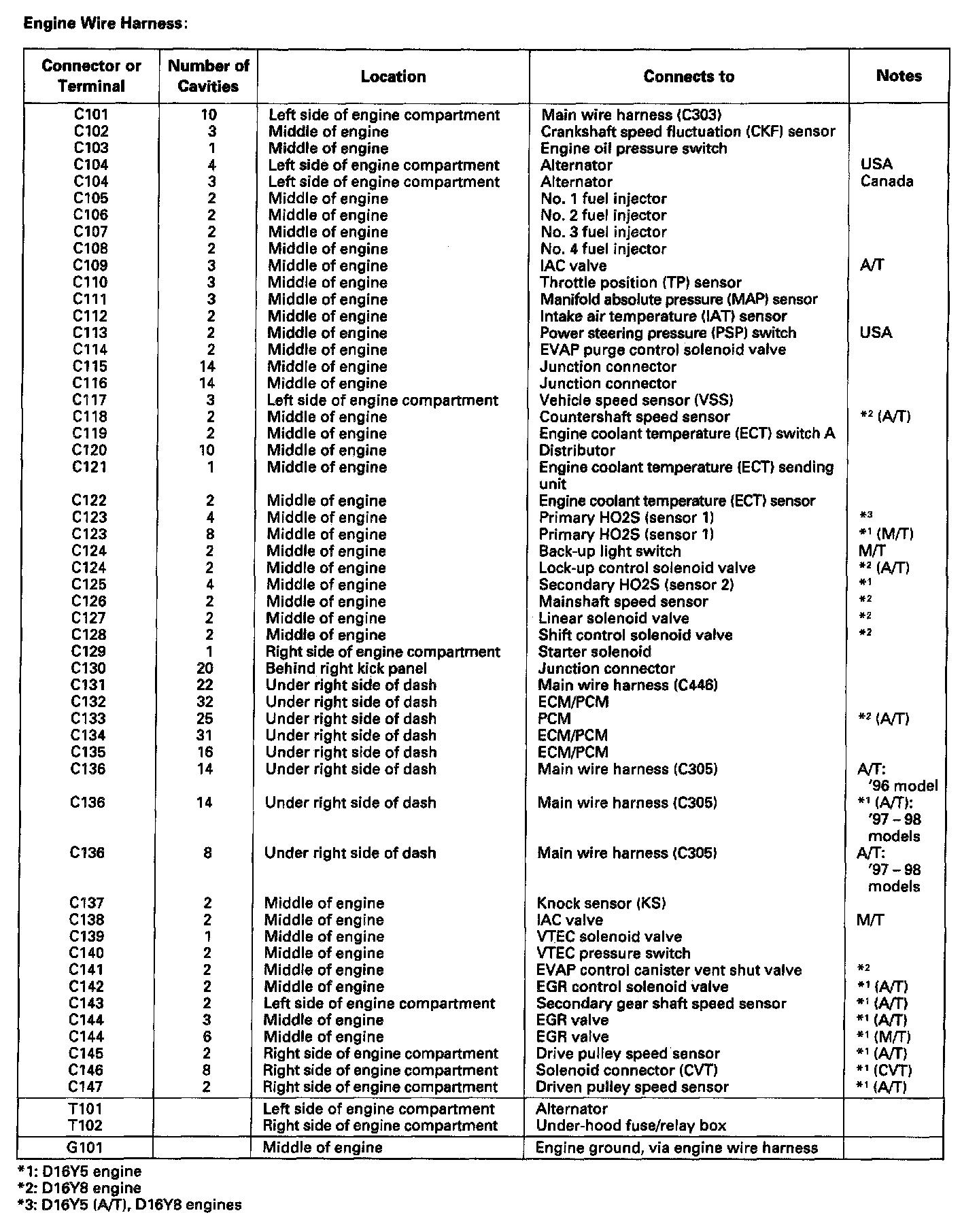

Engine Wire Harness - Index:

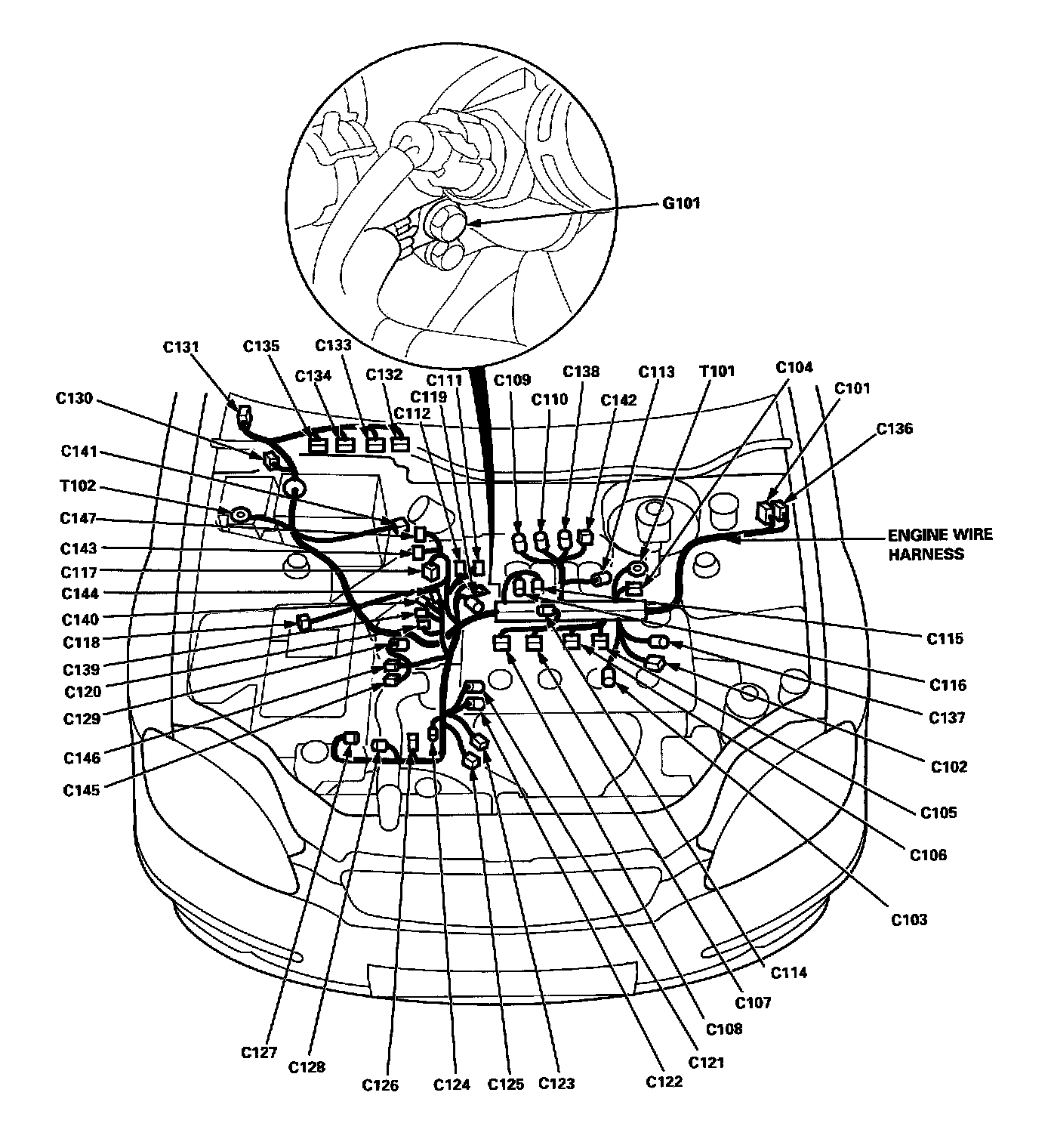

Engine Wire Harness - View:
