Engine Grounds

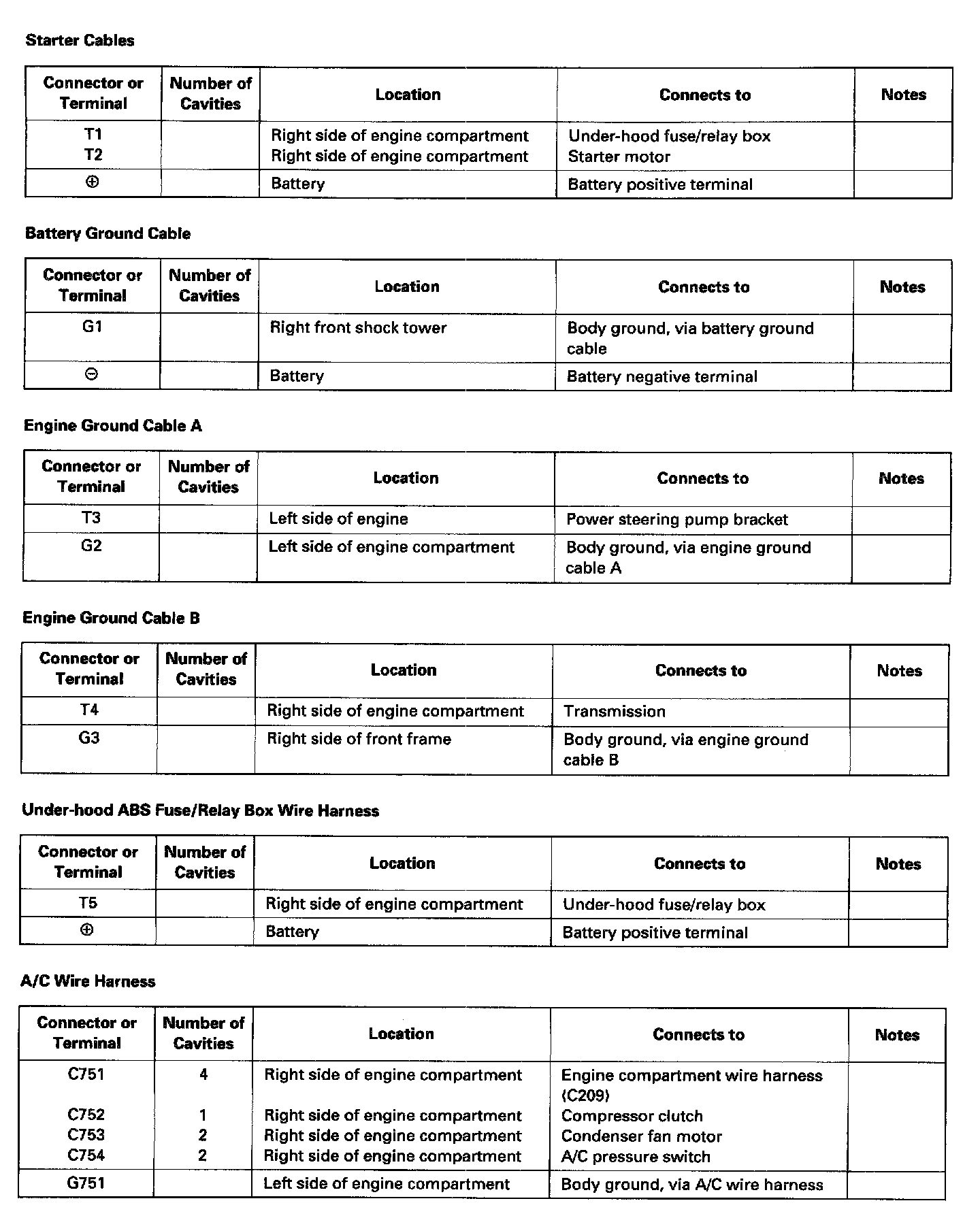

Starter Cables/Battery Ground Cable/Engine Ground Cable A, B/Under-hood ABS Fuse/Relay Box Wire Harness/A/C Wire Harness - Index:

Starter Cables/Battery Ground Cable/Engine Ground Cable A, Engine Compartment Overview Of Power Terminals (T) And Grounds (G):
