Engine Compartment Wire Harness

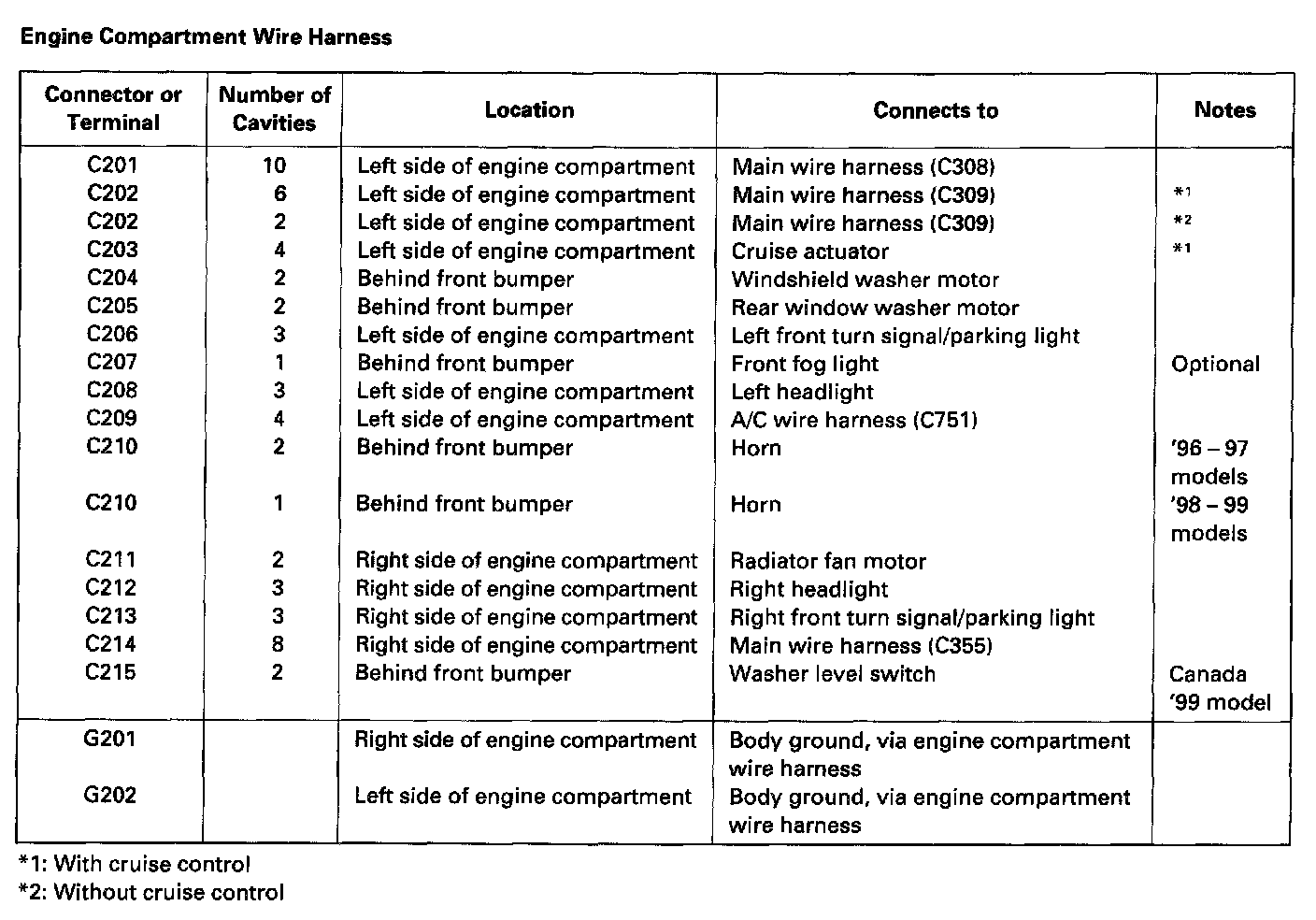

Engine Compartment Wire Harness - Index:

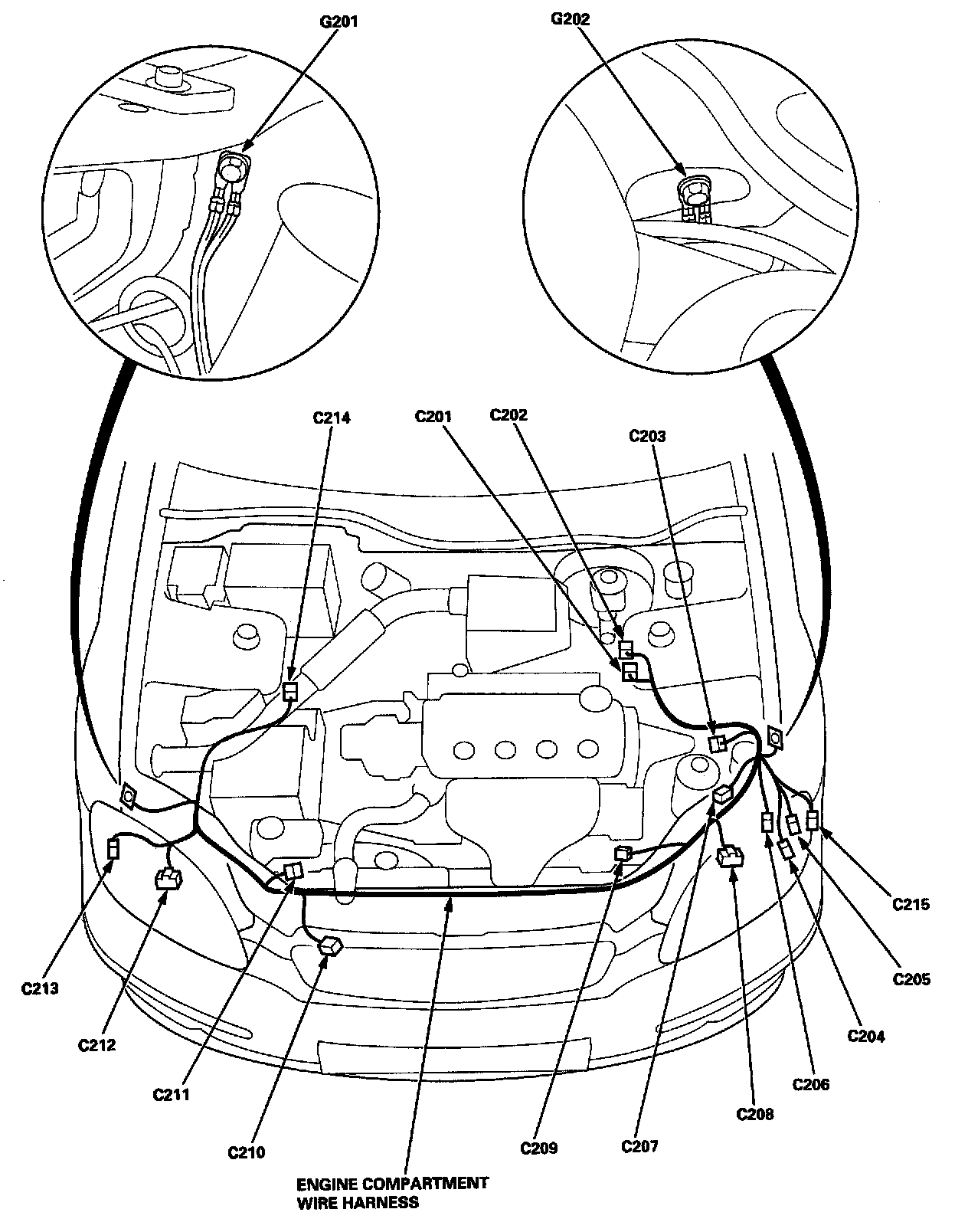

Engine Compartment Wire Harness - View:
