Horn: Testing and Inspection
1.
Remove the front bumper.
2.

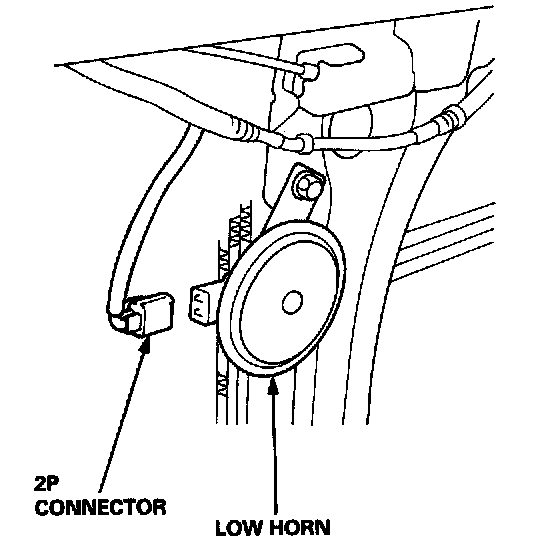

Disconnect the 2P connector from the
horn
.
3.
Remove the
horn
.
4.

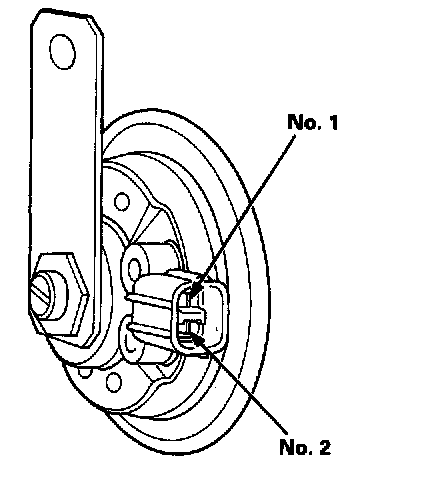

Test the
horn
by connecting battery power to one terminal and grounding the other. If the horn fails to sound, replace it.
