Removal

REMOVAL

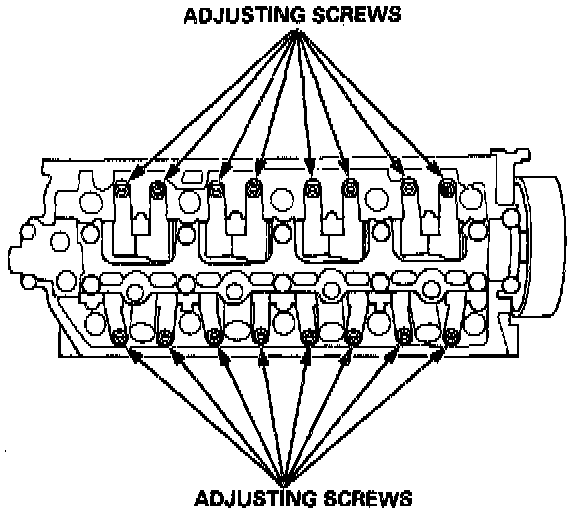

1. Loosen the adjusting screws.

2. Unscrew the camshaft holder bolts, then remove the rocker arm assembly.

NOTE:
- Unscrew the camshaft holder bolts two turns at a time, in a crisscross pattern, to prevent damaging the valves or rocker arm assembly.
- When removing the rocker arm assembly, do not remove the camshaft holder bolts. The bolts will keep the camshaft holders, the springs and the rocker arms on the shaft.

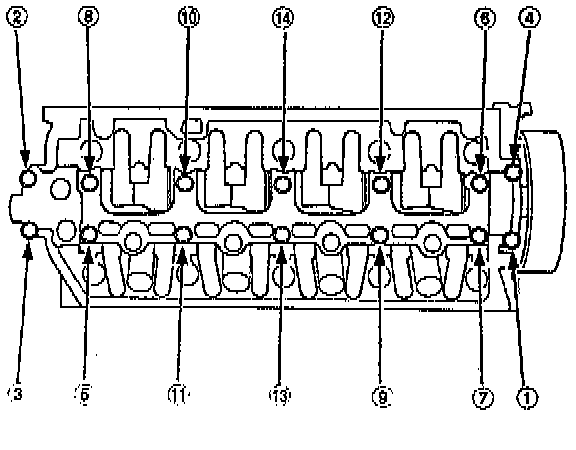

Camshaft Holder Bolts Loosening Sequence:
