Exhaust System
Exhaust System

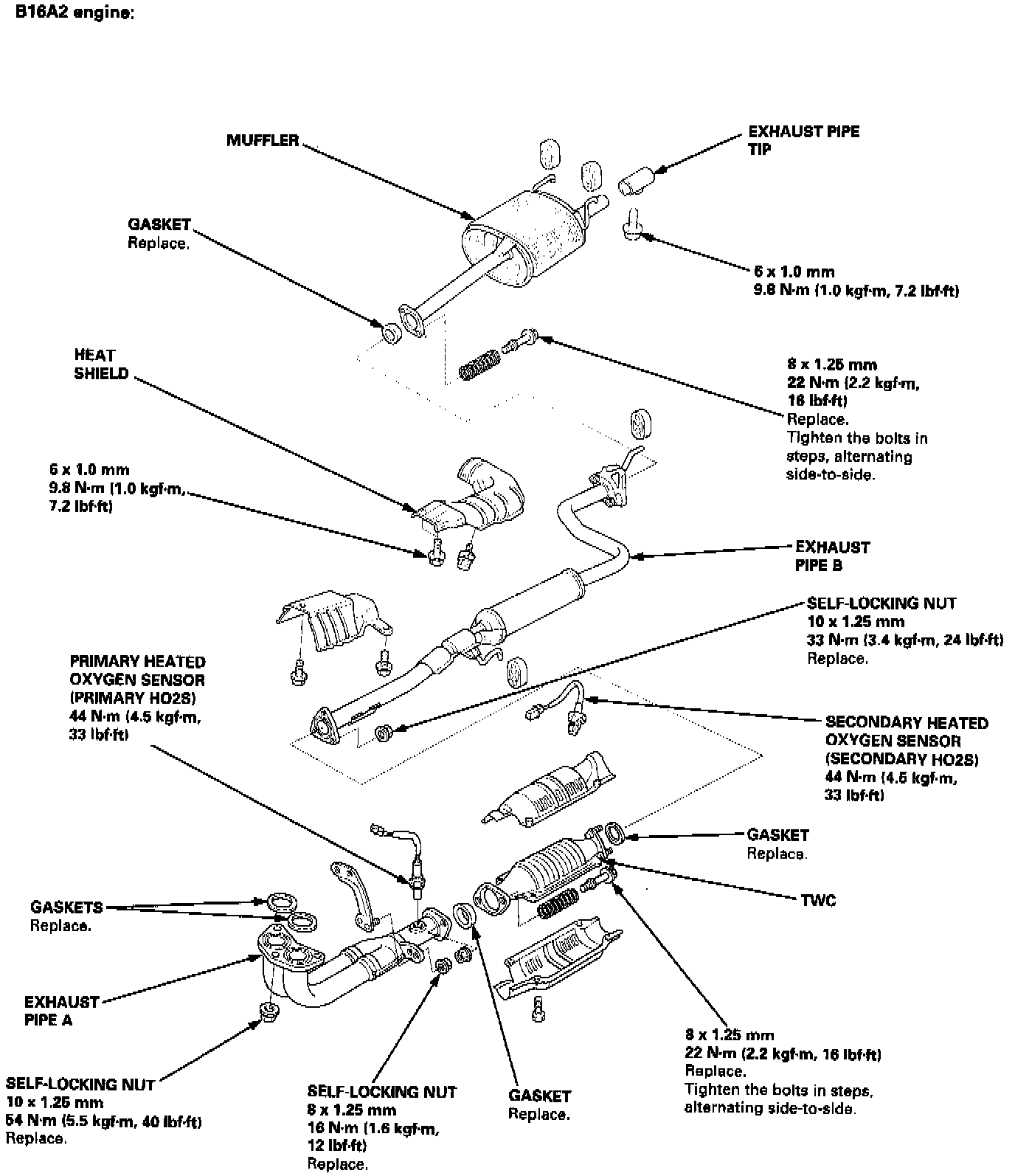

B16A2 DOHC VTEC:

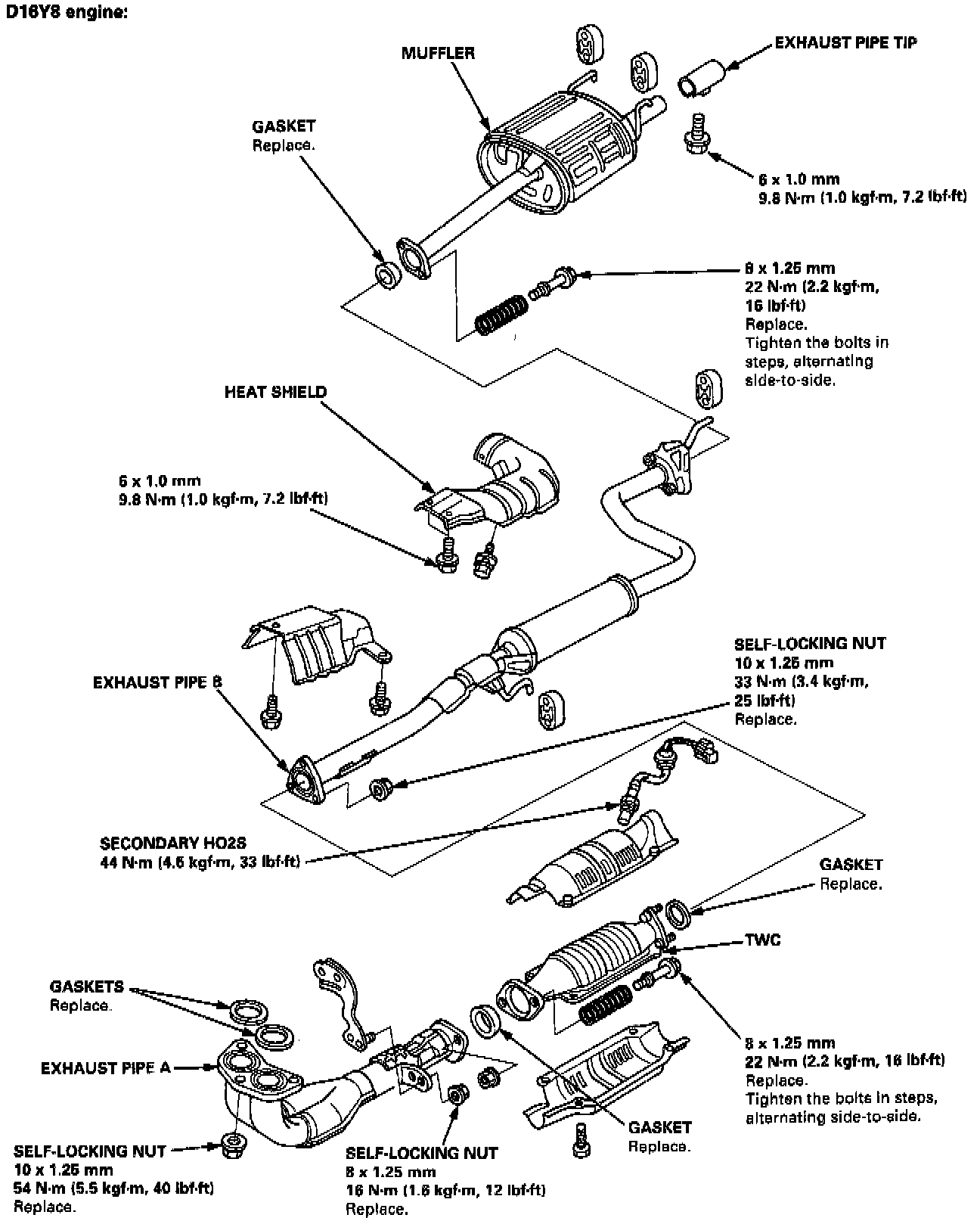

D16Y8 SOHC VTEC:

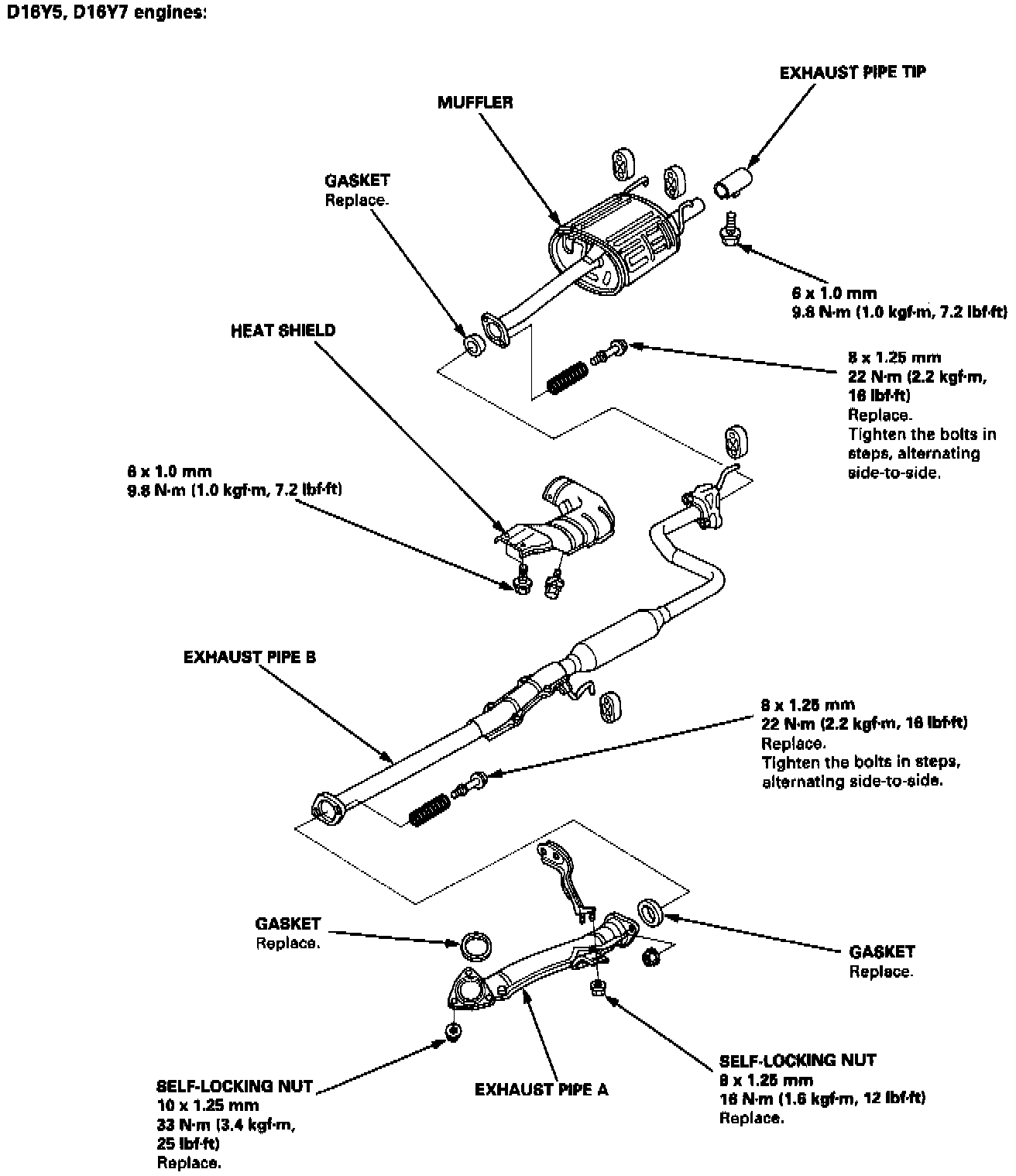

D16Y5 SOHC VTEC-E And D16Y7 SOHC Non-VTEC:
NOTE:
Use new gaskets and self-locking nuts when reassembling.
