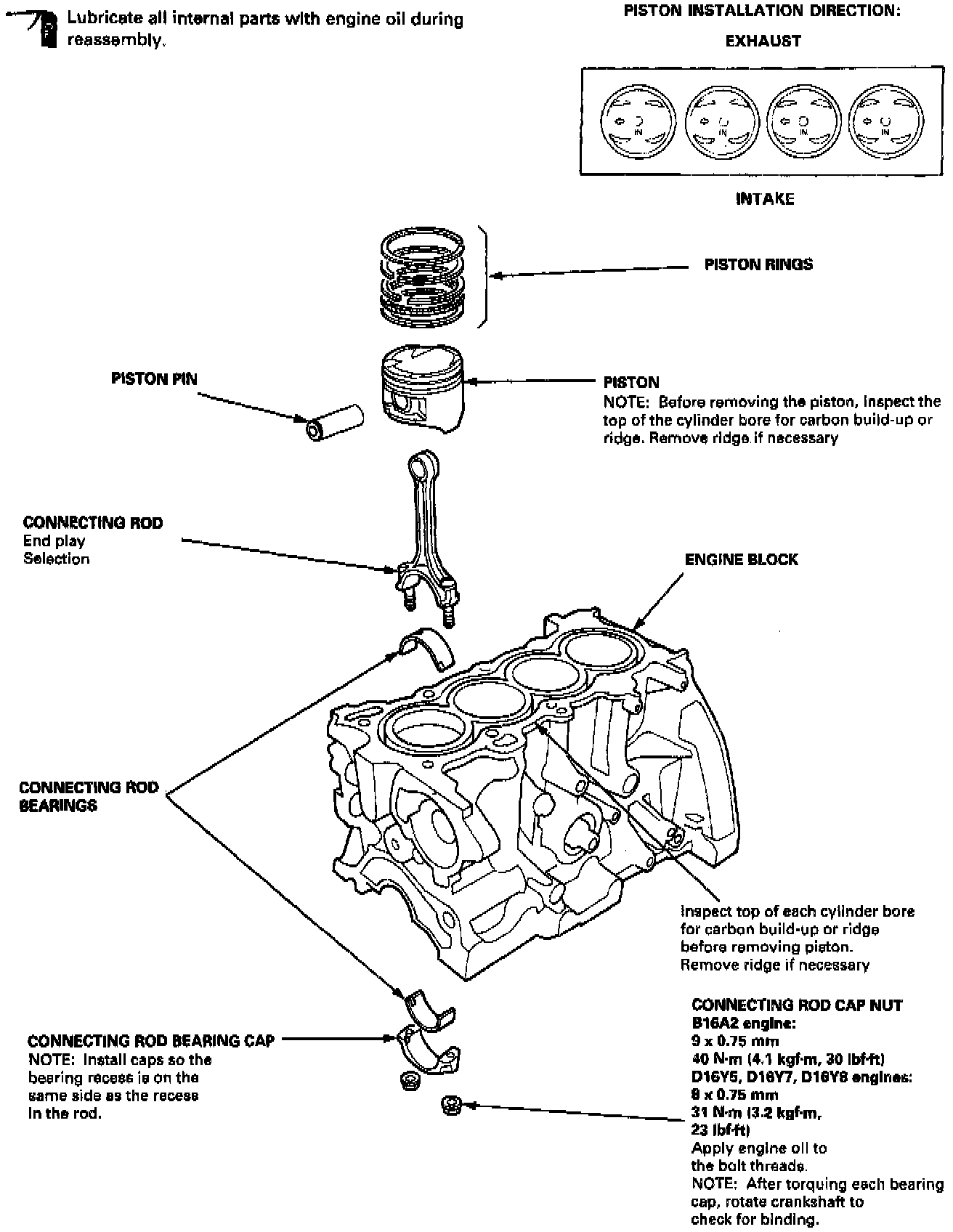

Cylinder Block Assembly








NOTE: New rod bearings must be selected by matching connecting rod assembly and crankshaft identification markings.
